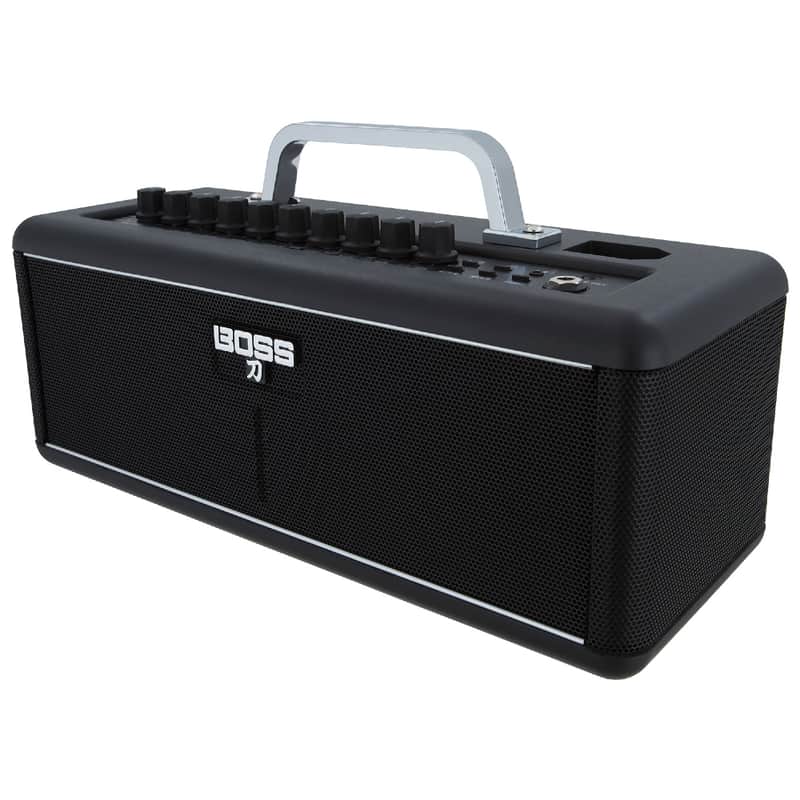

SPECIFICATIONS (KATANA-AIR)Rated Power Output30 W (15 W+15 W) (when using the AC adaptor)
20 W (10 W+10 W) (when using the Alkaline batteries) Nominal Input LevelINPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu Speakers7.5 cm (3 inches) x 2 ControlsPOWER button
Bluetooth button
MASTER knob

[AMPLIFIER]
AMP TYPE knob
GAIN knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[MULTI EFFECT]
BST/MOD knob
BST/MOD button
DELAY/FX knob
DELAY/FX button
TAP button
REVERB knob
REVERB button

[TONE SETTING]
CH A button
CH B button
PANEL button IndicatorsPOWER
Bluetooth
Guitar Wireless
PANEL
CH A
CH B
BST/MOD
DELAY/FX
REVERB
TAP ConnectorsInput jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo miniature phone type
TRANSMITTER IN jack: Stereo 1/4-inch phone type
USB port: USB B type
DC IN jack Power SupplyAC adaptor (DC 13 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8 Current Draw680 mA Expected battery life under continuous useAlkaline battery: Approximately 7 hours
Rechargeable Ni-MH battery: Approximately 10 hours
* When using batteries having a capacity of 2500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. AccessoriesOwner’s manual
Leaflet USING THE UNIT SAFELY
Transmitter
AC adaptor
Power cord SIZE AND WEIGHT (KATANA-AIR)Width350 mm
13-13/16 inches Depth144 mm
5-11/16 inches Height181 mm
7-1/8 inches Weight (excluding batteries)2.2 kg
4 lbs 14 oz
