BEL CANTO BLACK – EX INTEGRATED

All-in-One Amplifier

The Black EXIntegrated amplifier is an all-in-one component designed in a custom platedhigh-grade aluminum chassis that combines high-level DAC performance andour custom amplification. The EX Integrated has the versatility to connect toany source with simplicity and ease, including MQA, Roon, DSD, andincludes an internal programmable phono stage.

The Black EXIntegrated is based on the ground-breaking ACI 600, which is a new breedof integration that maximizes synergy and optimizes performance. Theinput, DAC, and amplifier designs provide the most efficient signal path, andeliminate the variability and complexity of separates. The EX Integratedutilizes Bel Canto’s proprietary board technologies from the advanced HDR-IIcore in the DAC, to the AMiP input, and the custom high-power amplifier ratedat 250/500 watts. Each input is designed to provide uncompromised sound fromany source, whether you’re streaming music through ethernet or USB, using thefull suite of digital inputs, line level inputs, or sub outputs, or listeningto records via the internal MM/MC software controlled analog phono stage.

The EX Integrated is designed to manage the complexity ofall audio sources and control functions with ease and efficiency. The volumeand system functions are controlled by manually pressing and rotating thecontrol dial on the front of the unit, or by using the IR custom remotecontrol, or with your iPhone/iPad and the custom iOS SEEK app. The fullyprogrammable display is easy to read and illuminates system status indicatingsource and volume. It also displays all programming functions and serves as thestreaming display for meta data.

ll source inputs are asynchronously re-clocked into thefully balanced advanced segment DAC measuring below 0.001% distortion and 126dBof dynamic range. By stripping away the source clock and using Bel Canto’scustom ULN master clock circuitry we significantly reduces both jitter anddistortion preserving the delicate audio signals from all sources.

Asynchronous ethernet connects you to the most compellingand power musical source available today. Bel Canto’s proprietary asynchronousethernet and USB-A inputs provide the highest level of performance for highresolution files up to 24bits at 192ks/s, ,and DSD64. This allows you to connect to a variety of subscription streamingservice or source from your personal library that is stored on a NAS (networkedattached storage) drive, or a multi-terabyte independent drive to the USB-A allproviding full server function with complete iOS wireless control using ourSEEK control App.

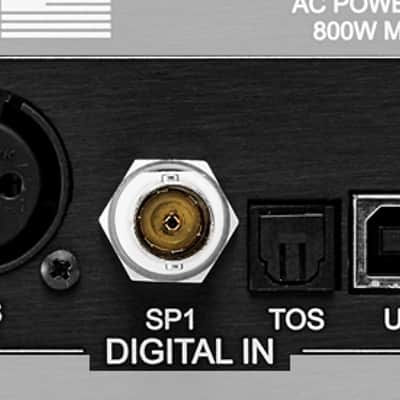

Asynchronous Digital SPDIF AES, RCA and Toslink inputsall operate at 24/192Ks.

Asynchronous USB2.0 Audio is compatible with any PCMsource up to 24/348, MQA, and DSD 128(DoP). Windows-based computers require our custom driver. USB2.0 worksnatively in OSX.

MQA (MasterQuality Authenticated) is an award-winning British technology that delivers thesound of the original master recording. The master MQA file is fully authenticatedand is small enough to stream or download. Visit mqa.co.uk for moreinformation. The MQA logo is a trade mark of MQA Limited. © MQA Limited2017

RS232 is designed to support easy integration withsophisticated whole house control systems.

The MM/MC phonosection is a low noise, low distortion circuit that is fully programmable foroptimum application with wide range of quality cartridges from high output MM2.5mV to 5mV to low output MC 0.25mV to 0.5mV to optimized performance.

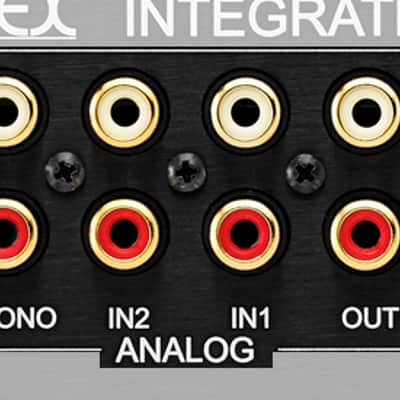

The line level analog input also can be programmed togain match your analog sources and achieve the best performance from all analogsources. The line output can be connected to a powered subwoofer.

The front panelheadphone jack opens up high quality sound for your favorite headphones. Plug inyour headphones and the EX Integrated configures itself into a superb headphoneamplifier with a high performance buffer stage that can drive down to 32 ohm. Controlthe output level using the main control, allowing you to select the headphoneor main speaker output while leaving the headphones in place.

SPECS

Maximum Data Input Rates:

24bit Datato 192ks/s: AES, SPDIF, TOSLINK

24bit Datato 192ks/s, MQA, and DSD64: 10/100 Ethernet

24bits to384ks/s, MQA, and DSD64/128 (DoP): USB2 Audio

Low Level Outputs:

Line LevelAnalog: 4.5Vrms with Bass Management

Headphone: 4.5Vrmsmaximum, 32ohm minimum load

MM/MC Input:

InputSensitivity: MM: 2.5mV to 5mV; MC: 0.25mV to 0.5mV

Input Load: MM:47K ohms; MC: 50, 100, 500, 1000

RIAAAccuracy: +/- 0.25dB, 50Hz-15kHz

THD+N: <0.01%1kHz A-Weighted

SNR: >70dBA-Weighted

Line Inputs:

MaximumInput: 2.2 Vrms RCA

InputImpedance: 10k ohms RCA

THD+N: 0.003%,1kHz

DynamicRange: 110dB, A-weighted 20Hz-20kHz

Loudspeaker Output:

MaximumPower Output: 500W-4ohm, 250W-8ohm

MinimumLoad: 2 ohms

Peak OutputCurrent: 25 amperes

FrequencyResponse: -3 dB 0.5Hz-50kHz, all loads

Outputconnections: 2-pair WBT Nextgen binding posts

Performance:

DynamicRange: 126dB A-weighted

THD+N: <0.001%1W, 1kHz, 4 ohms

IMD (CCIF): <0.001%,1W, 18.5:19.5kHz 1:1, 4 ohms

General:

Power UsageOn: 40W

Power UsageOff: 0W

InternallySet Operating Voltages: 100-120VAC, 220-240VAC 50/60 Hz

Dimensions: 17.75”W x 15.5” D x 3.5” H, 451 x 394 x 89 mm

Weight: 25 lbs(12 kg)

Features andspecifications are subject to improvements and changes without prior notice.
