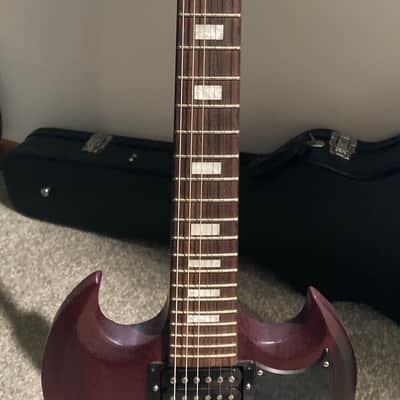

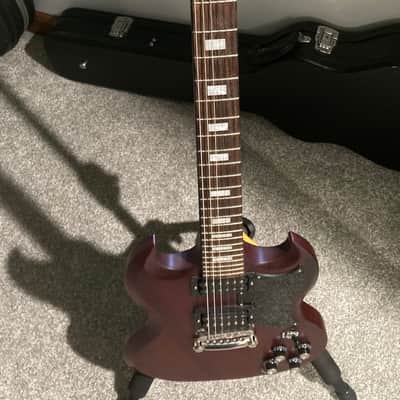

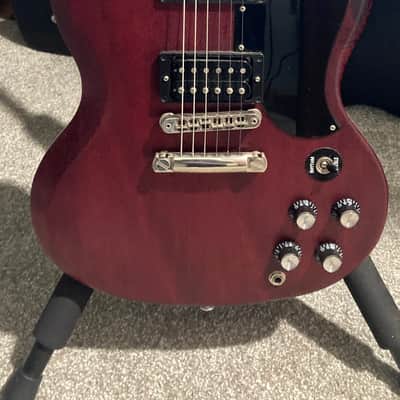

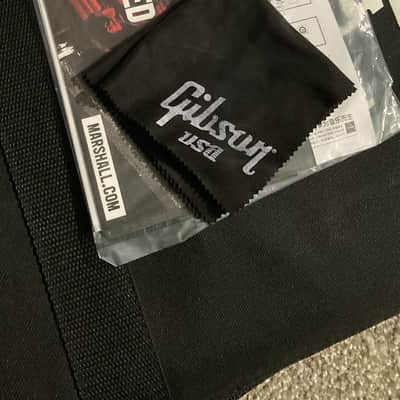

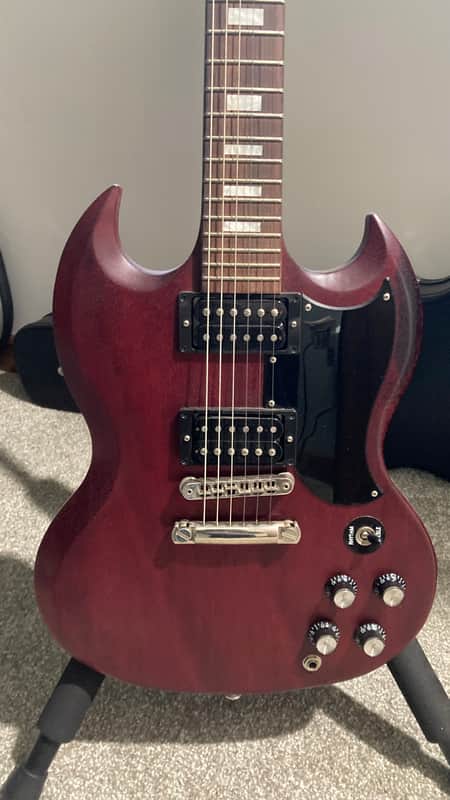

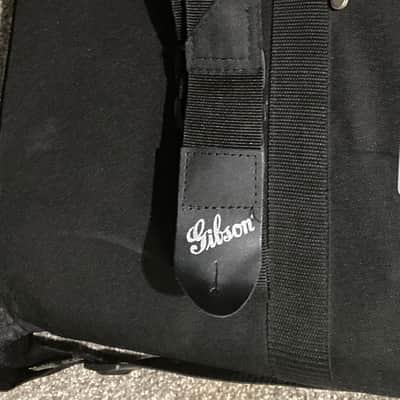

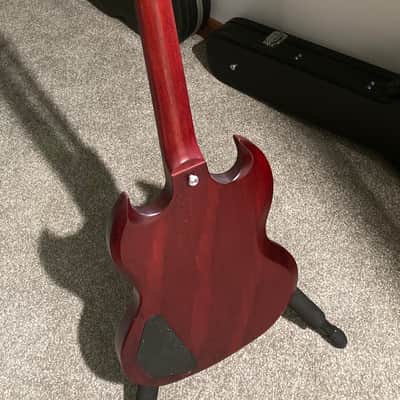

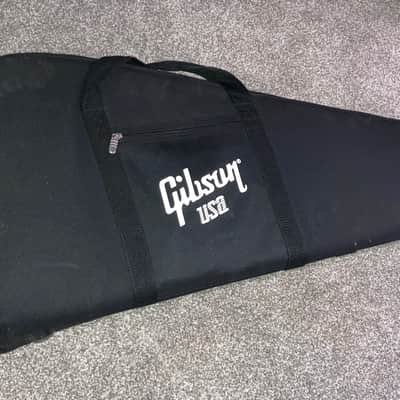

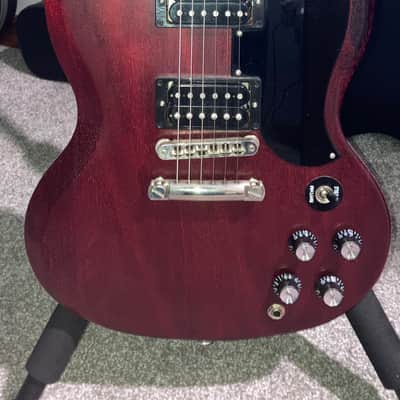

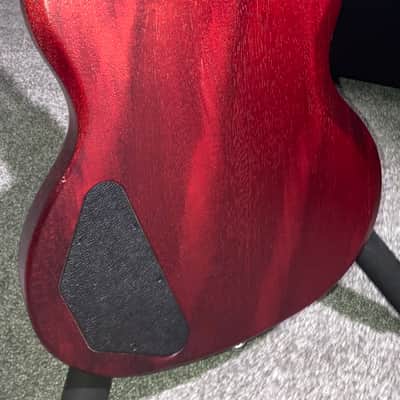

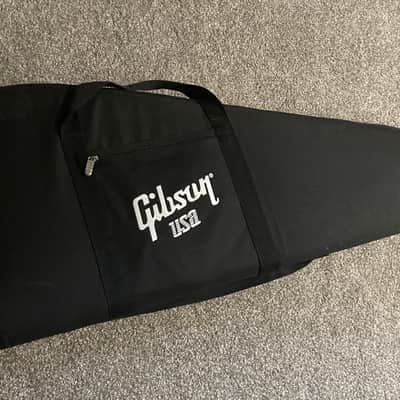

An unused 2017 Gibson SG Special T in satin cherry. Comes with original gig bag in black w/ the white Gibson logo on it. Also included, is a Gibson USA guitar strap, a Gibson USA polishing cloth, and a Gibson USA owners manual. Everything that was originally included, and all in PRISTINE/BRAND NEW CONDITION!!….

*NOTE* - Intonation needs to be set

SPECS:

BODY:

Wood Species:

Mahogany

Pieces:

Multi-matched

Grade:

A

Binding:

None

WEIGHT:

Average Weight (body only):

4.2lbs

MATERIALS USED:

Glue:

Franklin Titebond 50

BODY CONTOUR:

Carve:

Flat

NECK:

Wood Species:

Mahogany

Pieces:

1

DETAILS:

Truss Rod:

SG

Profile:

Slim Taper

Thickness at Fret 1:

0.800"

Thickness at Fret 12:

0.875”

Average Weight:

1.2lbs

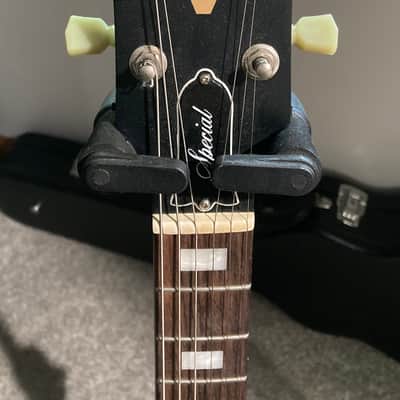

PEG HEAD:

Type:

SP1-B

Inlay:

None

Peg Head Binding:

None

Logo:

None

Silkscreen:

Gold "Gibson" & Holly

Headstock Angle:

17 degrees

NECK FIT:

Joint Angle:

4.25 degrees

Joint Angle Tolerance:

0 deg 0 min 15 sec

Type:

Mortise and Tenon

Adhesive:

Franklin Titebond 50

Gauges Used:

Pitch Height Gauge, Alignment Gauge

NUT:

Style:

Nut

Material:

TekToid

Width:

1.695"

Slots:

E: 0.046"

A: 0.036"

D: 0.026"

G: 0.016"

B: 0.011"

E: 0.009"

FINGERBOARD:

Wood Species:

Rosewood

Pieces:

1

Shade:

Medium

DETAILS:

Radius:

12”

Frets:

24

Nut/End of Board:

1.695" @ nut, 2.260" @ end of board

Scale:

24 3/4

Binding:

None

Side Dots (Color):

White

FINGERBOARD INLAY:

Style:

Small Blocks

Material:

Acrylic

Dimensions:

Large: .77 x .5”

Small: 1 x .25”

Average Weight:

4.16 oz

ELECTRONICS:

Style:

490R / 490T

Winds/Coil: Screw side/Slug side:

5250 / 5250

Material of Wire (gauge):

Copper (42)

Coil Dimensions (per coil):

2.61 x 0.68"

Coil Material:

ABS

Coil Winding Process:

Machine Wound

Pole Piece Material:

Nickel

Pole Piece Position from Nut:

18 5/8” / 23 7/16”

Magnet Material:

Alnico II

Magnet Position from Nut:

19 " / 23 1/8"

Magnet Dimensions:

2.5” x 0.5”

POLARITIES:

Cover:

Nickel

Qfactor:

5.62

ResistanceDC:

7803 Ohms

Resonant Frequency:

2715.71 Hz

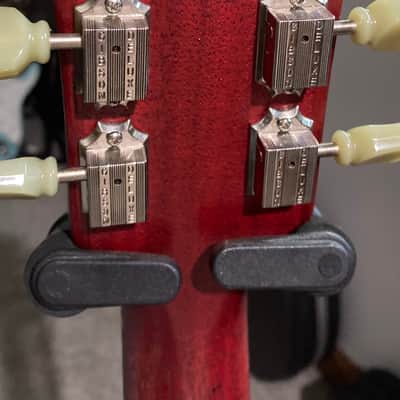

TUNING KEYS:

Style:

Vintage Style Keystone

Material:

Zamak

Weight:

1.0oz

TUNING KEYS DETAILS:

Tuning Ratio:

14:01

Gear Type:

Worm

What is allowable turn:

+/- 4 degrees

Plating specs:

Nickel

STRING DIMENSIONS:

E:

0.046"

A:

0.036"

D:

0.026"

G:

0.016"

B:

0.011"

e:

0.009"

BRIDGE:

Style:

Tune-o-matic

Material:

Aluminum

Plating Specs:

Nickel

Weight:

0.96 oz

SLOTS:

E:

0.058"

A:

0.048"

D:

0.038"

G:

0.028"

B:

0.019''

e:

0.014"

TAILPIECE:

Style:

Stop Bar

Compensated:

No

Material:

Aluminum

Plating Specs:

Nickel

Part Number:

Weight:

1.12 oz

OUTPUT JACK:

Style:

1/4" mono gold plated positive contact

JACK PLATE:

Style:

None

STRAP BUTTONS:

Material:

Aluminum

Plating Specs:

None

Part numbers:

/ 60E

Weight:

0.14 oz

PICK GUARD:

Style:

SG Style

Part number:

SV: 380-12970B - SC: 380-12970C

TRUSS ROD COVER:

Style:

Black/White bell, Stamp “Special”

Part number:

KNOBS:

Style:

SV: Black w/ Gold insert - SC: Black w/ Silver insert

Part Number:

SV: / 12-SC: / 01

DIAL POINTERS:

Yes/No:

No

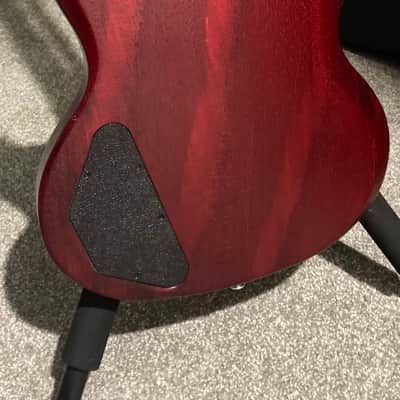

CONTROL PLATE(S) (BACKPLATE COVER):

Style:

SS infused polycarbonate for ESD protection

Part Number:

CONTROL PLATE(S) (SWITCHPLATE COVER):

Style:

None

Part Number: N/A

SWITCH WASHER:

Style:

None

TRIM RINGS:

Style:

SV: Black Humbucker Low/High - SC: Cream Humbucker Low/High

Part Number:

SV: / 51 - SC: / 93
