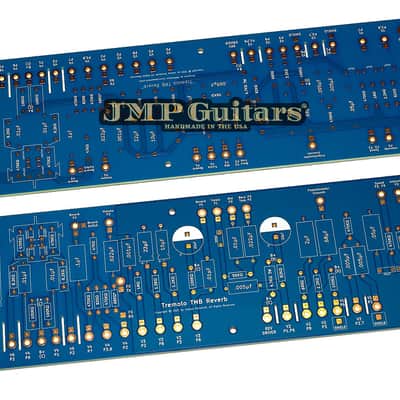

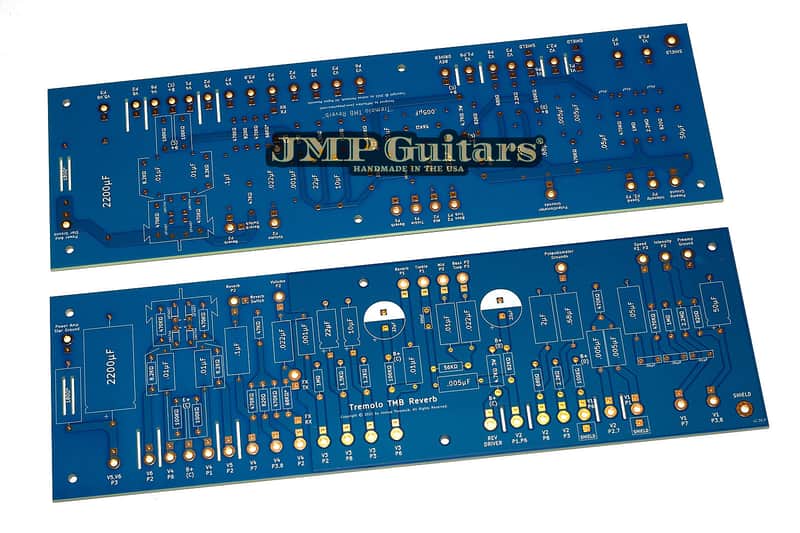

The Tremolo TMB Reverb PCB
The Highest Quality Guitar Amp PCBs Available
This PCB is designed for DIY guitarists that want to build an incredible guitar tube amp for themselves. This is a classic style 18Watt circuit, with Tube Driven Tremolo, Tube Driven Reverb, and a full TMB Tone Stack.
The values on the PCB are for 18 watt amps. The board has also been built as 36 to 40 watts with a few value changes.
The listing price is for ONE PCB.
PCB Specs:
Dimensions: 12.1" x 3.75" (307.34mm x 95.25mm)
Thickness: 1/8" (3.2mm)
Material: FR4-TG170
Surface Finish: ENIG(2µ")
Solder Mask: Matt Blue
Copper: 2oz
RoHS: Yes
Circuit information and support is available on 18watt.com. Circuit documentation:
I will eventually create a full instruction set, but between the well-labeled PCB, and the docs on 18watt.com, it's fairly straight forward. The board is fully tested, and due to the DIY nature of it, no returns will be accepted. However, the support is great through 18watt.com.
I prefer to ship only to the US, but if you're outside of the US, send me a message and we can see what it will cost to ship. The shipping box dimensions are 14" x 4" x 2".
Please note: That demo was recorded by an 18watt.com member who built the amp by himself using one of the PCBs available in this listing. It is not my demo, but is used with permission.
Please ask any questions prior to purchasing .
