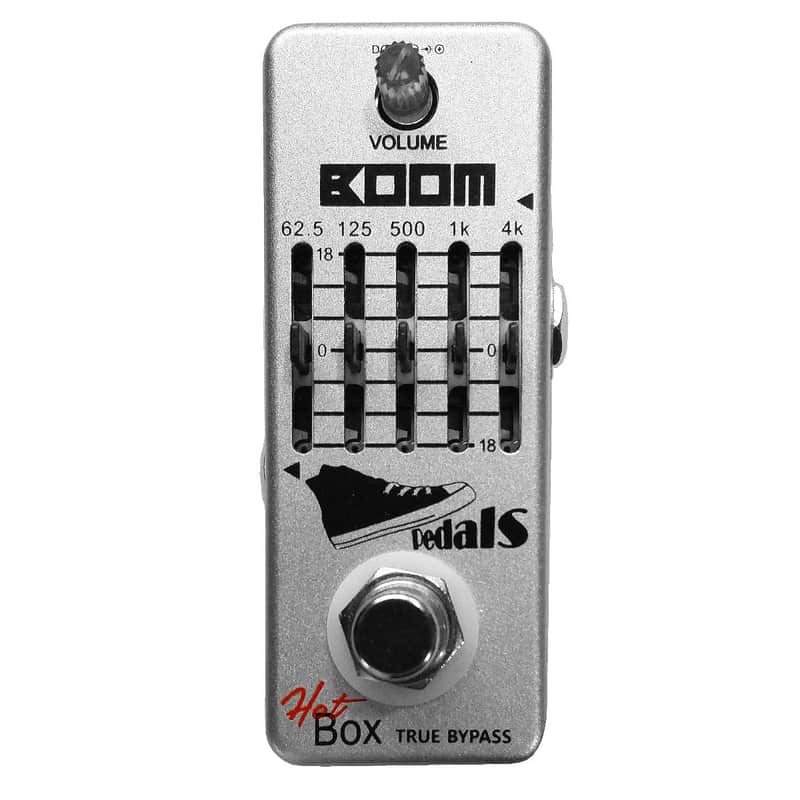

Hot Box Pedals Boom 5-band Bass Graphic Equalizer Attitude Series Pedal True Bypass

Hot Box Pedals Boom 5 band Bass Guitar Graphic EQ Pedal features five adjustable frequency faders that can be used to shape and sculpt your sound. Cut problem frequencies, add warmth and achieve classic tones. Designed for discerning bassists.

Description

Hot Box Pedals Attitude Series Boom 5 Band Bass Guitar Graphic Equalizer Pedal

The Boom Graphic EQ Pedal is designed for the bass players. It features five adjustable frequency faders that can be used to shape and sculpt your instrument sound to perfection. With 18dB of gain or attenuation ranging from 62.5Hz-4kHz, this pedal can be used to cut problem frequencies, add warmth or sparkle, and create those fat bass tones.

Compact / Miniature Case Size
This is the smallest bass guitar EQ pedal in the world. Advances in circuitry design have made is possible for guitar effect pedals to be built in a compact enclosures that literally fit in the palm of your hand. The mini design allows more pedals to fit on your pedal board and also helps reduce the overall weight.

True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.

Specifications:

• Full Metal Shell
• 5 bands of EQ - 62.5Hz, 125Hz, 500Hz, 1kHz, 4kHz
• 18dB of attenuation or gain
• True Bypass 3DPT Switch

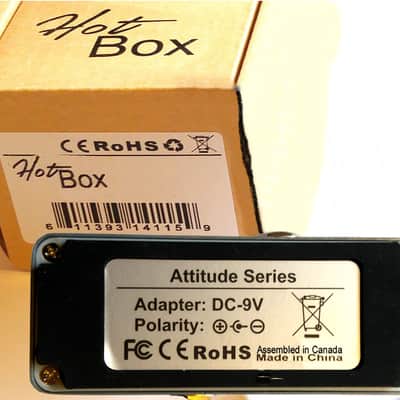

• Power Supply: 9V DC (Negative Centre) - (Not Included)
• Working Current: 40mA
• Input Impedance: 470K Ω
• Output Impedance: 470k Ω
• Input and Output Connectors: 1/4" jack
• Dimensions: L93.5mm x W42mm x H52mm (incl. switch)
• Weight: .2kg (203grams)

• Power supply not included.
  Please use the 9V power adapter whose polarity is negative center otherwise, the product may not work properly.

  Package List:
  1 * Effect Pedal
  1 * User Manual(English)
