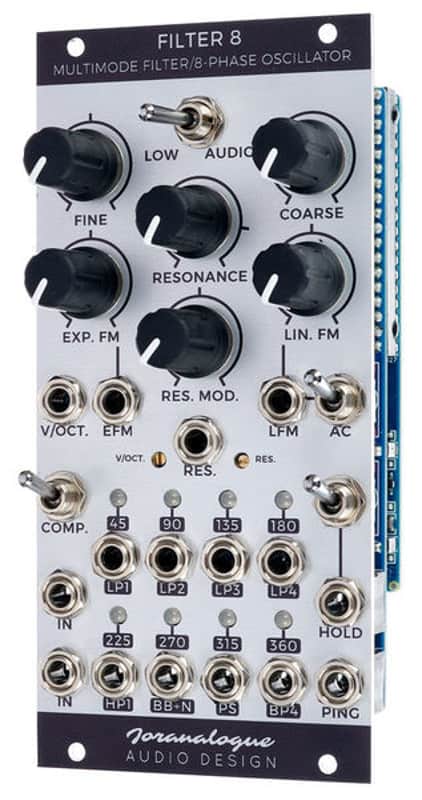

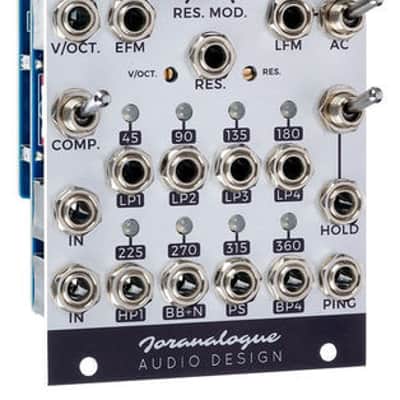

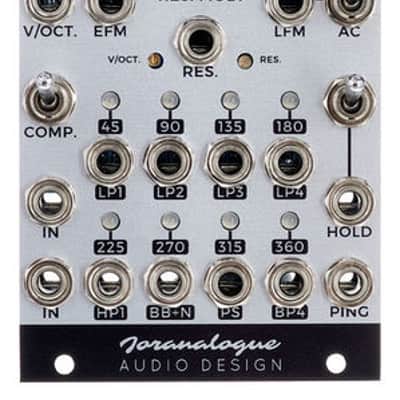

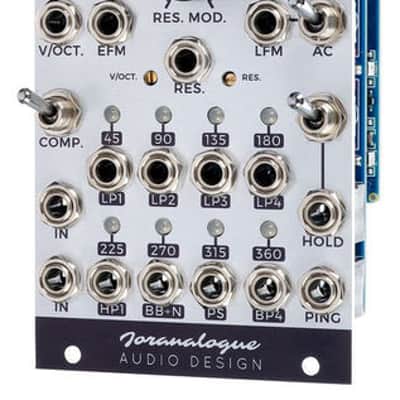

Joranalogue Audio Design Filter 8 Eurorack Module
Price$399
+ $39 Shipping
Listed:over a month ago
Views:570
Saves:10
Hong Kong, Hong Kong
Our users rate Reverb
- Multimode filter and 8-phase oscillator
- OTA-based 4-pole filter
- 8 Separate filter pole outputs with the characteristics: Low-pass (6 dB, 12 dB, 18 dB, 24 dB), high-pass (6 dB), band-pass + notch.
- Phase shifter and bandpass
- Coarse and fine controls for filter frequency
- Linear and exponential FM for filter frequency
- Each with bipolar attenuator
- 1V/oct. CV input
- CV input with bipolar attenuator for resonance
- "Ping" input triggers an internal transient generator for creating drum sounds
- "Hold" input and switch freezes the filter core to the current value
- Works as an 8-phase sine oscillator with 45° phase shift between the outputs when self-oscillating
- Switchable LFO mode
- Switchable level compensation for all outputs
- Can process audio and CV signals
- 2 Audio inputs
- Current consumption: 75 mA (+12 V) / 75 mA (-12 V)
- Width: 12 HP
- Depth: 43 mm
