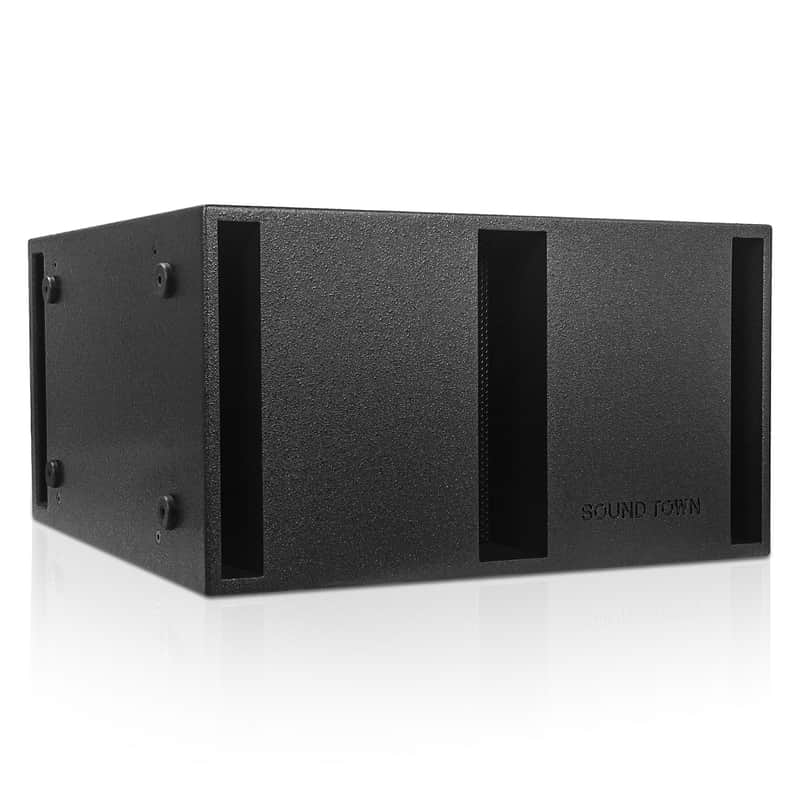

CARME-212S | CARME Series Dual 12" 1600W Passive PA DJ Subwoofer with Folded Horn Design, Black, for Lounge, Club, Bar, Theater, Restaurant, Church

The Sound Town CARME-212S is a professional-grade, powerful, roadworthy and affordable PA passive subwoofer with sturdy plywood enclosure. It handles 800W RMS 1600W program power and comes with 2 12“ woofers, which deliver deep and punchy bass down to 38Hz. With folded horn design, it improves power efficiency and allows the sub to be built in a compact-size enclosure without compromising sound quality.

The subwoofer is constructed of birch plywood with a hard wearing matte black finish. It also comes with two side-mounted M20 pole sockets, supporting horizontal or vertical setups, while M8 rigging points facilitate easy installation for under-stage, in-wall, under-seating, and ceiling mount applications. This design is perfect for background music playback in clubs, bars, theaters, restaurants, churches, and more.

FEATURES

• MASSIVE POWER: A professional-grade, powerful, roadworthy and affordable PA passive subwoofer with sturdy plywood enclosure; 800W RMS 1600W program power handling capability.
• GREAT BASS PERFORMANCE: Dual 12“ driver subwoofer designed to deliver deep and punchy bass and extend the low frequency down to 38Hz
• POWER EFFICIENT: Folded horn design improves power efficiency and allows the sub to be built in a compact-size enclosure without compromising sound quality
• STURDY CONSTRUCTION: Solidly constructed of cross-laminated birch plywood in texture painting finish provides great protection
• VERSATILE APPLICATIONS: Two side-mounted M20 pole sockets SB, while M8 rigging points facilitate easy installation for under-stage, in-wall, under-seating, and ceiling mount applications. This design is perfect for background music playback in clubs, bars, theaters, restaurants, churches, and more.

SPECIFICATIONS

Specifications

Model CARME-212S Active / Passive Passive Frequency Range 38 Hz - 180 Hz Frequency Response 43 Hz - 300 Hz Sensitivity 99 dB (Passive) SPL Max 128 dB Dispersion -- Configuration Dual 12" folded horn passive subwoofer Transducer LF: 2 x 12", HF: -- Impedance 4Ω Power Handling 800W RMS / 1600W Program Cabinet Construction High-grade 100% birch plywood Mounting M20 threading stand mount on two sides, M8 rigging points
Finish Texture coating Grill & Rigging Component Steel with anti-corrosion coat Amplifier -- Input Speakon Output Speakon
Control -- Indicator -- Voltage --

Dimension & Weight

Product Width (in.) 31.8" Package Width (in.) 34.6" Product Height (in.) 15.8" Package Height (in.) 19.1" Product Depth (in.) 25.2" Package Depth (in.) 28.2"
Product Weight (lb.) 85.7 lbs
Package Weight (lb.) 95.9 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year
