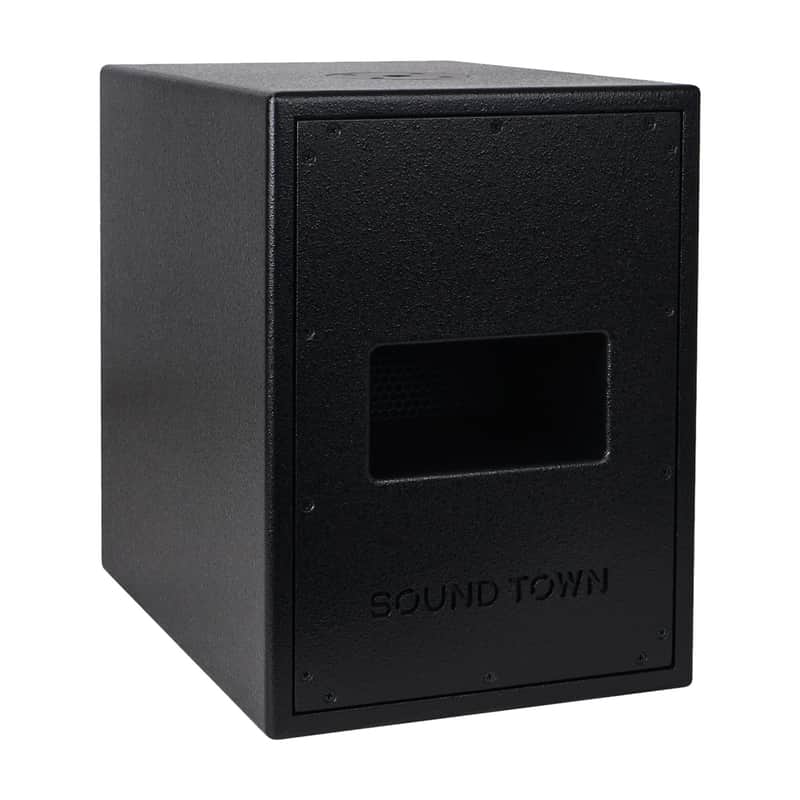

CARME-208S | CARME Series Dual 8" 800W Passive PA DJ Subwoofer with Folded Horn Design, Black, for Lounge, Club, Bar, Theater, Restaurant, Church

The Sound Town CARME Series CARME-208S is a professional-grade, powerful, roadworthy and affordable PA passive subwoofer with sturdy plywood enclosure. It handles 400W RMS, 800W peak power and comes with two 8“ woofers, which deliver deep and punchy bass down to 42Hz. With folded horn design, it improves power efficiency and allows the sub to be built in a compact-size enclosure without compromising sound quality.

The subwoofer is constructed of birch plywood with a hard wearing matt black finish. It also. comes with integral M10 rigging points for ease of installation, under-stage, in-wall, under-seating and ceiling mount applications, perfect for background music playback in clubs, bars, theaters, restaurants, churches and etc.

FEATURES

• MASSIVE POWER: A professional-grade, powerful, roadworthy and affordable PA passive subwoofer with sturdy plywood enclosure; 400W RMS, 800W peak power handling capability
• GREAT BASS PERFORMANCE: Dual 8“ driver subwoofer designed to deliver deep and punchy bass and extend the low frequency down to 42Hz
• POWER EFFICIENT: Folded horn design improves power efficiency and allows the sub to be built in a compact-size enclosure without compromising sound quality
• STURDY CONSTRUCTION: Solidly constructed of cross-laminated birch plywood in texture painting finish provides great protection
• VERSATILE APPLICATIONS: Integral M10 rigging points for ease of installation, under-stage, in-wall, under-seating and ceiling mount applications, perfect for background music playback in clubs, bars, theaters, restaurants, churches and etc.

SPECIFICATIONS

Specifications

Model CARME-208S Active / Passive Passive Frequency Range 42 Hz - 180 Hz Frequency Response 48 Hz - 300 Hz Sensitivity 97 dB (Passive) SPL Max 123 dB Dispersion -- Configuration Dual 8" folded horn passive subwoofer Transducer LF: 2 x 8", HF: -- Impedance 4Ω Power Handling 400W RMS / 800W Peak Cabinet Construction High-grade 100% birch plywood Mounting M20 threading stand mount on top
Finish Texture coating (RAL colors available) Grill & Rigging Component Steel with anti-corrosion coat Amplifier -- Input Speakon Output Speakon
Control -- Indicator -- Voltage -- Low Frequency Woofer Parts#

Dimension & Weight

Product Width (in.) 13.0" Package Width (in.) 16.0" Product Height (in.) 17.7" Package Height (in.) 21.0" Product Depth (in.) 18.9" Package Depth (in.) 21.8"
Product Weight (lb.) 47.0 lbs
Package Weight (lb.) 52.0 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year
