PEAVEY - PVXp 10 - 400 watts

Description française :

PEAVEY - PVXp 10 - 400 watts

Introducing the next level in world-class non-powered mixer performance. The all new PV® series mixing consoles include Peavey's reference-quality mic preamps that spec in at an incredible 0.0007% THD, making the PV series mixers excellent for live or recording applications.

The PV 10 BT includes 4 channels of reference quality mic preamps, 4 direct outputs for recording, a stereo channel, media channel with Bluetooth® wireless input, high quality digital effects with LCD display, streaming USB out, MP3 playback via USB A input, Peavey's exclusive Kosmos® audio enhancement, 48-volt phantom power, dual selectable control room outputs, 2 channels of compression, one channel of on board selectable guitar preamp, 3-band EQ per channel with bypass, channel mute buttons, aux send, signal clip indicators, and a stereo master LED meter bridge. This amazingly versatile mixer is at home both in the studio as well as live applications.

Modern features such as Bluetooth allow seamless connection to almost any "smart" device. 4 direct outs allow easy connection to most DAW interfaces for recording. In addition, the PV 10 BT can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and play back music. The PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs, and the EQ bypass allows the user to hear and compare the EQ'd signal to the original signal with the push of a button. 2 channels of compression keep signals with difficult levels under control, and Peavey's exclusive guitar shape adjusts the EQ and preamp specifically for guitar. Hi pass filters on every channel remove unwanted rumble and noise, and balanced AUX and Master outputs ensure a clean noise-free signal to your powered speakers or power amplifier.

Features:

• New rugged, slim, low-profile console design
• Convenient tablet cradle
• 4 combination XLR/1/4" low noise mic preamps
• Selectable Hi Pass Filter on first 4 inputs
• 3-band EQ on all channels
• 4 channels of Peavey's exclusive MidMorph® EQ
• EQ bypass per channel
• 2 channels of built-in compression
• Individual channel mutes
• Individual Listen/Solo function
• LED clip and signal present indication
• 4 Channels of direct out
• Stereo pan control per channel
• Channel 5/6 stereo 1/4", RCA, or 3.5mm input channel
• Dual selectable control room outputs
• One pre-fader AUX send
• KOSMOS® bass and treble enhancement
• Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
• Precision 60 mm faders on master
• High quality master LED meter bridge
• Master mic mute
• Studio quality headphone output
• Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
• On-board USB-A MP3 and WAV playback
• Stereo USB-B streaming audio in and out, 16-bit, up to 48kHz sample rates
• Built-in Digital Effects with LCD Display
• Peavey's exclusive on-board Hi Z guitar input
• Global 48V phantom power
• Product Dimensions: 12.75" wide x 15.1" deep x 2.1875" high (32.39 cm x 38.35 cm x 5.56 cm)
• Weight Packed: 9.48 lb(4.3 kg)
• Width Packed: 16.14"(40.9956 cm)
• Height Packed: 16.54"(42.0116 cm)
• Depth Packed: 3.54"(8.9916 cm)

English description :

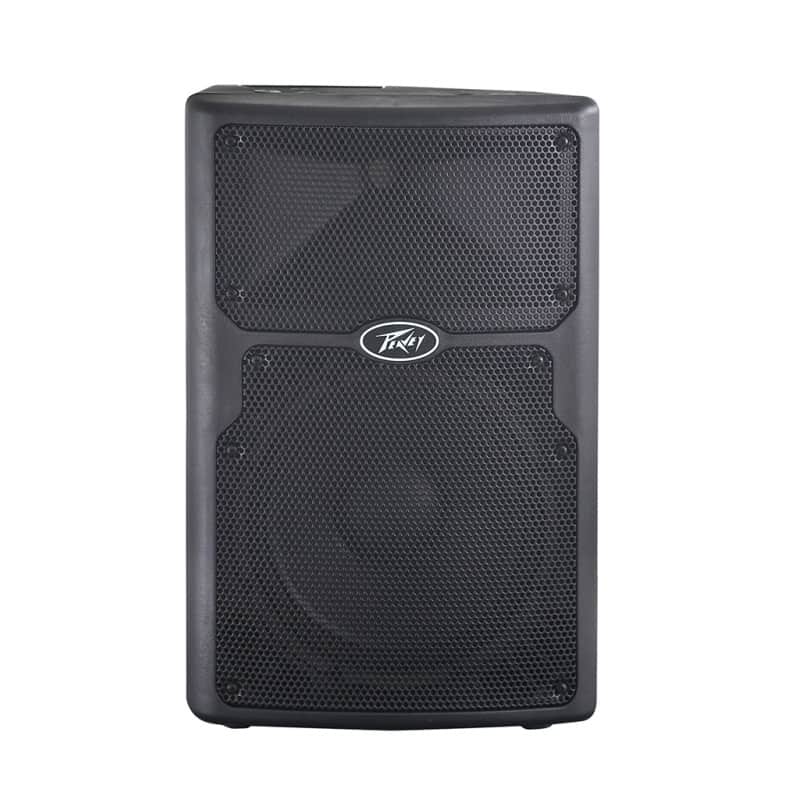

PEAVEY - PVXp 10 - 400 watts

The PVXp™10 is a two-way sound reinforcement system based on a heavy-duty Pro 10 10" woofer and a RX™10N dynamic compression driver mounted on a 100 by 60 degree coverage constant directivity horn It's sleek modern appearance coupled with excellent performance offer an outstanding package.

The lightweight yet rugged injection-molded plastic enclosure with molded-in stand mount cup facilitates portable use for live music or PA sound. The trapezoidal cabinet has two handles for ease of portability, and an extra 45-degree angled section on the right side to allow use as a floor monitor. Four sets of flying/mounting points, two on the top, and two on the bottom, with a total of 10 cabinet inserts, provide for the ultimate in installation flexibility. A black powder coated perforated steel grille provides driver protection and a professional appearance.

The heavy-duty 10" woofer provides a good strong low end for such a compact enclosure. The RX™10N compression driver tweeter is coupled to a constant directivity horn with smooth, even response, low distortion and good high frequency dispersion. This horn has an asymmetrical vertical polar response, aiming the main energy lobe down 10 degrees, so it is aimed at the audience, instead of over their heads. The vertical polar pattern is +25 degrees, -35 degrees. This helps reduce ceiling reflections for greater clarity and gain before feedback.

The PVXp™10 speaker system power amplifiers providing the bi-amplification are low-distortion ultra-reliable fan-cooled. The power supply for both amps is a switch mode type for low weight and high efficiency. Both amplifiers feature our DDT™ compression, which virtually eliminates audible power amplifier clipping. Cooling is provided via a low-noise fan, for reliable operation under any conditions. Input is via a combo female XLR and 1/4" TRS phone jack with balanced input to the preamp/EQ electronics, and a level control. A Thru output has an XLR and a TRS 1/4" phone jack connector. These outputs allow linking of additional speaker systems, or feed of the signal to a powered subwoofer, etc.

The cabinet of the PVXp™10 speaker system has multiple mounting fly points, providing outstanding versatility in permanent install use. Two pairs of M10 inserts are molded-in on the top and bottom, and a set of four M8 inserts is available on the top and bottom, in the pattern used for the Peavey VM70 mounting bracket. This is a total of 12 mounting inserts in all. All of these inserts have retaining hardware on the inside of the plastic cabinet, providing a more reliable and safe mode of mounting the cabinet.

Features:

• 10" Heavy-duty woofer
• Ultra-reliable fan-cooled power amps with DDT
• Patented Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
• Asymmetrical horn aims the sound down to 10 degrees, at the audience, not over their heads
• 400 watts peak available power
• Thru output is via an XLR and 1/4" TRS phone jack
• Durable plastic injection-molded trapezoidal enclosure
• Full coverage heavy-duty perforated steel grilles, with powder coat finish
• Pole mount molded-in for 1 3/8" diameter poles
• RX™ 10N compression driver, with 1" diaphragm
• Top and bottom flying point inserts
• Input is via a combo female XLR and 1/4" TRS phone jack with balanced input
• Two-way bi-amped sound reinforcement enclosure
• Extra angled section on right side allows floor monitor use
• Weight Packed: 35.27 lb(16 kg)
• Width Packed: 16.142"(41.00068 cm)
• Height Packed: 22.44"(56.9976 cm)
• Depth Packed: 14.174"(36.00196 cm)

Please note that we sell European 220/240v versions, most of which can be switched to 110/120v if needed, either directly via the hardware next to the power supply, or via an external power transformer, don't hesitate to contact us if you have any questions.
