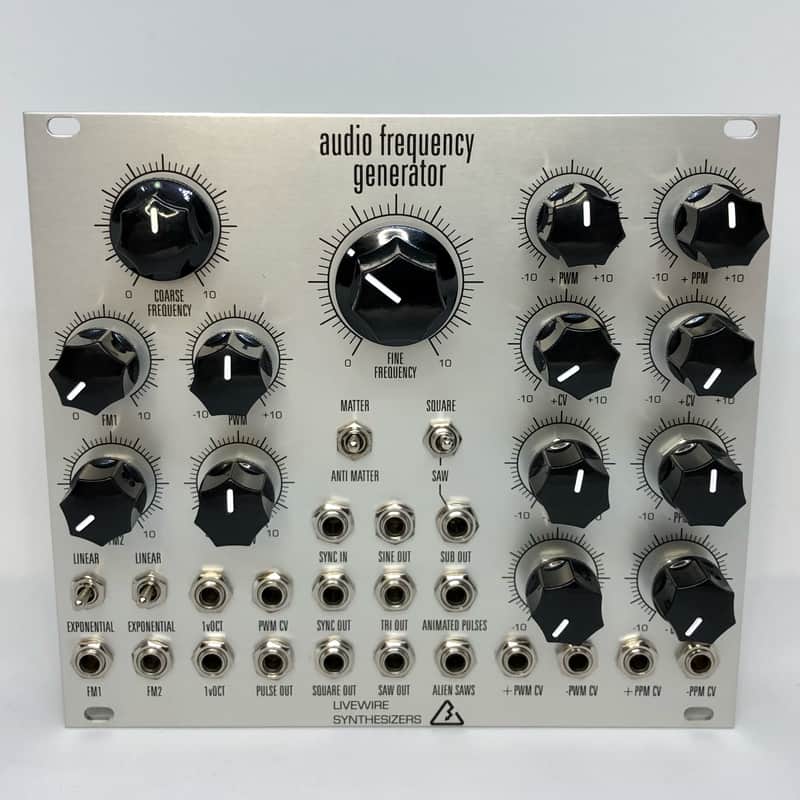

Livewire Synthesizers Audio Frequency Generator (new stock)

SAWTOOTH CORE VCO / 18 different waveform types (8 simultaneous)

2 FM CV inputs with 2 response curves (LINEAR/EXPONENTIAL via switch)

2 1vOct inputs

1 PULSE WIDTH MODULATION (PWM) CV input

HARMONIC ANIMATION from dedicated waveshaper (produces ANIMATED PULSES and ALIEN SAWS waveforms) with independent CV control of the + and – slopes of the waveform cycle

1 PULSE WIDTH MODULATION (PWM) CV input

HARMONIC ANIMATION from dedicated waveshaper (produces ANIMATED PULSES and ALIEN SAWS waveforms) with independent CV control of the + and – slopes of the waveform cycle

Version 2 NEW FEATURES:
Improved Power management
-previous version required 2 power cables
-previous version was sensitive to voltage differences between +12v/-12v rails
Improved tracking (8 octave range +/- 5 cents) with separate calibration for HIGH FREQEUNCY scaling
2 SYNC options (hard/soft)
Shallower profile (will fit the depth of most eurorack enclosures)
