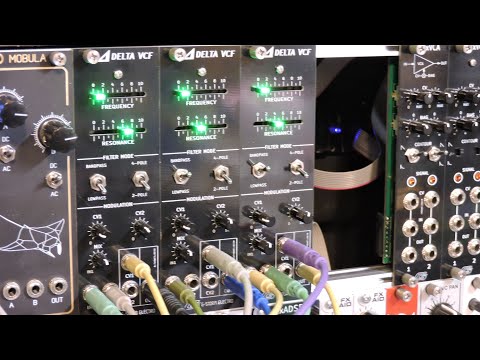

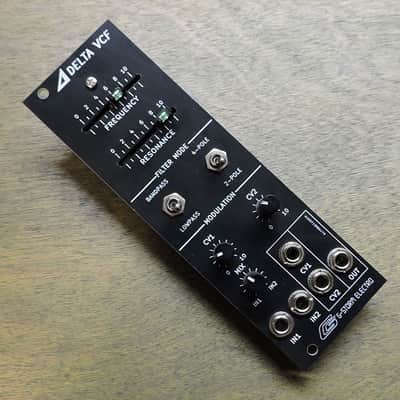

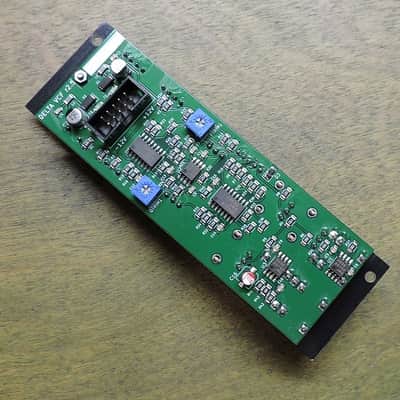

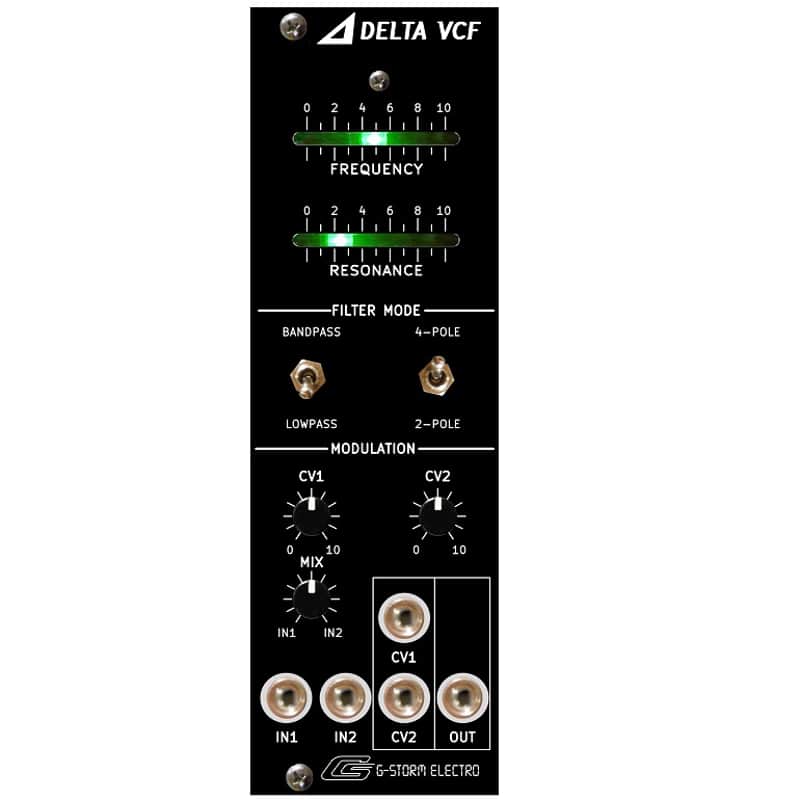

The Delta VCF is back in Black panel version! It is the same circuit as all my previous versions have always been. The Delta VCF is a faithful adaptation of the analog Korg Delta synthesizer filter in Eurorack. The lowpass circuit was also found in the Poly-61. And uses 13XXX series OTA chips and dual transistor as on the original Delta. And with resonance it will not dilute your bass frequencies like some filters do.
FEATURES
- Two filter slopes: original 4-pole, and 2-pole.
- Two filter modes: lowpass or bandpass.
- Illuminated Frequency and Resonance Bourns Slider pots.
- Mix together two different input oscillators at the input jacks w/ a signal MIX . At full MIX pot setting CCW or CW, these inputs can overdrive the filter.
- Modulate the filter cutoff with two different input control voltages w/ signal attenuation pots.
- There are trim pots for adjusting frequency and resonance range. Some of you out there may want to give a little boost to the resonance trim pot. Doing so will make this thing scream and howl a little harder.
My modules are lovingly hand-crafted in the USA. Includes a 10-pin to 16-pin Eurorack ribbon connector.
Specifications:
- Inputs - 2 Audio Inputs, 2 CV Inputs
- Outputs - 1 Mono Output
- Current - 23mA +12V, 20mA -12V,0mA +5V (not used)
- Depth - 22mm
- Width - 8HP, 40.5mm
