Electro-Harmonix | MOP-D10
Brand New with Full Manufacturer's Warranty!

Pedals with noise-free operation!

DESCRIPTION

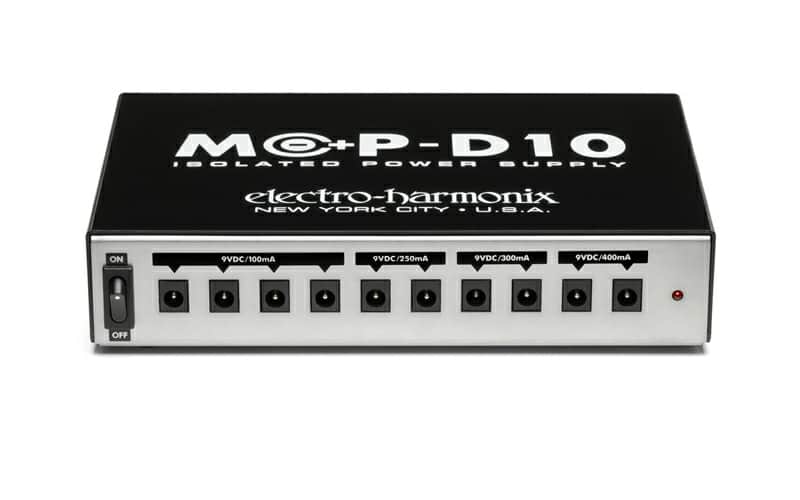

The MOP-D10 is a multi-output power source that was developed by EHX engineers to provide a player with noise-free pedal operation. It features ten isolated 9VDC outputs that handle the most popular power requirements: 4x100mA, 2x250mA, 2x300mA and 2x400mA.

From its premium analog power path featuring low-noise linear regulators to its custom-wound toroidal transformer, the MOP-D10 is designed to let a pedal user achieve a sonically pure signal path. Unlike many other multi-output power supplies which rely on switching power conversion, the MOP-D10’s transformer-based power conversion is significantly less susceptible to spurious noises leaking into the audio path. An AC Voltage Selector Switch also ensures the MOP-D10 can be used with a range of voltages commonly found around the world.

Each of the MOP-D10’s outputs is center-negative and all output power jacks are isolated from each other. The dimensions of each output connector are 5.5mm x 2.1mm. The unit is supplied with a 6′ detachable power cord and ten 24″ long DC power cables equipped with one straight and one right-angle end. It also includes hardware for pedalboard mounting.

FEATURES

• Professional pedalboard power solution with ten isolated 9VDC outputs: 4x100mA, 2x250mA, 2x300mA and 2x400mA
• Provides a premium analog power path with low-noise linear regulators
• Custom-wound toroidal transformer delivers exceptional isolation and clean power
• Relies on transformer-based power conversion which is superior to switching power conversion
• AC Voltage Selector Switch allows the MOP-D10 to be used with a range of voltages commonly found around the world
• All output power jacks are isolated from each other for noise-free operation
• Comes with ten 24″ long DC power cables equipped with one straight and one right-angle end
• Includes hardware for pedalboard mounting

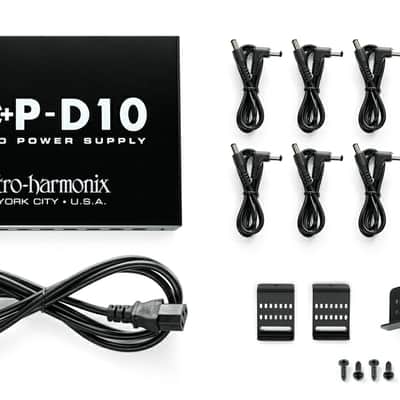

• MOP-D10 ISOLATED POWER SUPPLY
• The MOP-D10 features ten isolated 9VDC outputs for powering effects pedals and other musical instrument accessories. Maximum output current on each output ranges from 100mA to 400mA: 4x100mA, 2x250mA, 2x300mA, 2x400mA.
• DC CABLES
• 10 x DC cables with 5.5 x 2.1 (mm) plugs.
• AC POWER CORD
• PEDALBOARD MOUNTING HARDWARE
• 4 x Pedalboard mounting brackets 4 x Pedalboard mounting screws: Screw B

“Power your pedalboard with EHX!”
–Mike Matthews

Shipping Weight: 4.0 lbs.
Shipping Dimensions (L x W x H): 11.25" x 8.75" x 2.25"

Unboxed Weight: 2.7 lbs
Unboxed Dimensions (L x W x H): 7.87" x 5.51" x 1.73"

UPC: 683274012032
