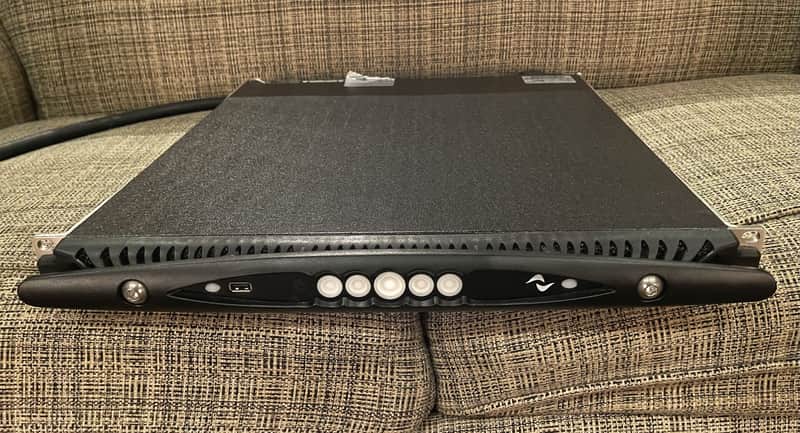

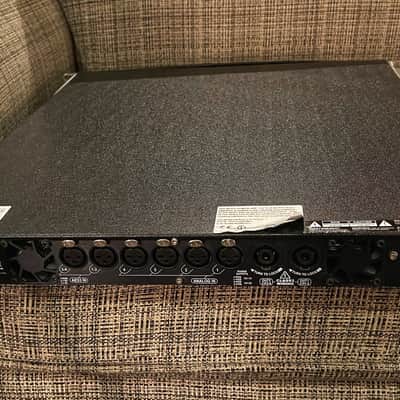

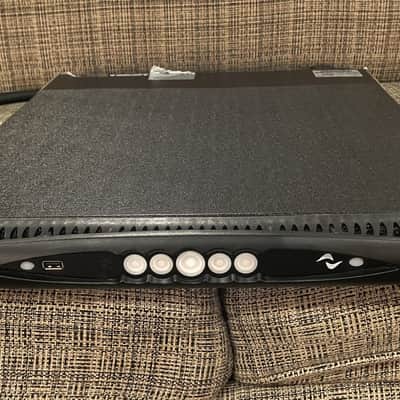

Powersoft X4 4-Channel Power Amplifier with DSP
New Price$4,000
+ $150 Shipping
This listing has ended
See similar gear from other Reverb sellers
Listed:5 years ago
Views:653
Watchers:7
Offers:8
Austin, TX, United States
Our users rate Reverb
Used PowerSoft X4 Amp with DSP Has worked great for me, Currently selling my PA system for smaller set up as career changes are underway.
4-Channel High Performance Amplifier Platform
Powersoft X4 innovates and evolves the concept of the amplification platform though the integration of a worldwide compatible power-box and a full feature DSP inside the power amplifier.
The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing non-boolean routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 4 s in input processing and 200 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters and Active DampingControl.
The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is now suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 440 VAC without need of manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design.
PowerSoft X4 Specs
• 1600 Watts per Channel @ 8 Ohms

• 3000 Watts per Channel @ 4 Ohms

• 5200 Watts per Channel @ 2 Ohms

• Channel Routing System

• 3 Phase Power Supply

• Full Featured DSP

• 1U Rack Space
4-Channel High Performance Amplifier Platform
Powersoft X4 innovates and evolves the concept of the amplification platform though the integration of a worldwide compatible power-box and a full feature DSP inside the power amplifier.
The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing non-boolean routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 4 s in input processing and 200 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters and Active DampingControl.
The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is now suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 440 VAC without need of manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design.
PowerSoft X4 Specs
• 1600 Watts per Channel @ 8 Ohms

• 3000 Watts per Channel @ 4 Ohms

• 5200 Watts per Channel @ 2 Ohms

• Channel Routing System

• 3 Phase Power Supply

• Full Featured DSP

• 1U Rack Space
