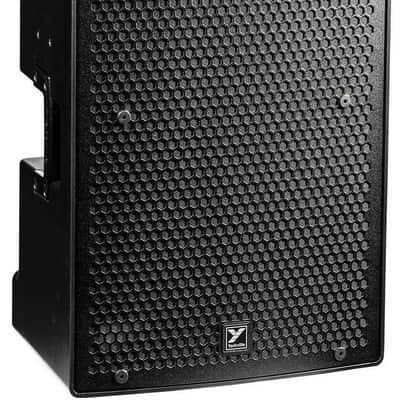

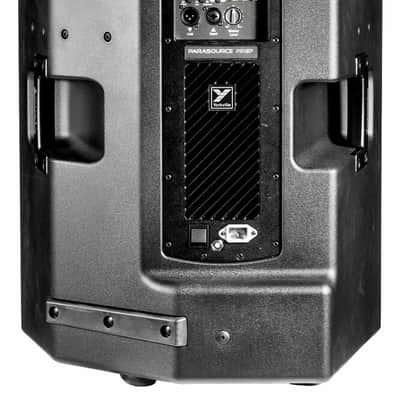

Yorkville PS15P Pro Powered 15" 4400W Parasource Series Active Loudspeaker 15" woofer

15-inch / 1-inch - 1400 watts

As the largest cabinet in the Parasource Series, the PS15P delivers maximum bottom end from a high power 15-inch ceramic woofer (with 3-inch voicecoil). A focused 85° x 50° (H x V) conical horn delivers improved constant directivity and better midrange response than competitive cabinets in this class.

Overview

Integrated DSP ensures the PS15P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS15P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS15P without cluttering midrange program or affecting the cabinet's overall intelligibility - making it the perfect small speaker solution for larger events where additional subwoofer support is not available.Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS15P's speaker components.

Unlike competitive powered cabinets, the Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low frequency material like kick drums and bass tracks. This delivers an extremely smooth and precise mix even at the highest output levels the cabinet can produce.Designed for maximum versatility, the PS15P works equally well as a Front-of House cabinet, side fill cabinet or floor monitor. Innovative and highly efficient passive cooling scheme ensures the PS15P will operate in any environment without need of noisy internal dust collecting fans. Integrated reinforced flypoints ensure the PS15P can be flown quickly and easily in any fixed installation.Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term reliability in the field.

Features

• Integrated 4400 Watt Amplifier Peak Power (1400 Watts Program)
• 15-inch Woofer with 3-inch Voicecoil
• 85° x 50° Horn with Thermal and Peak Protection
• 38mm Compression Driver with 1-inch Exit
• Max SPL 134dB Peak (129dB Continuous)
• High Efficiency Bi-Amplified Class-D Power Module
• Passive Cooling Scheme (No Loud Fans Required)

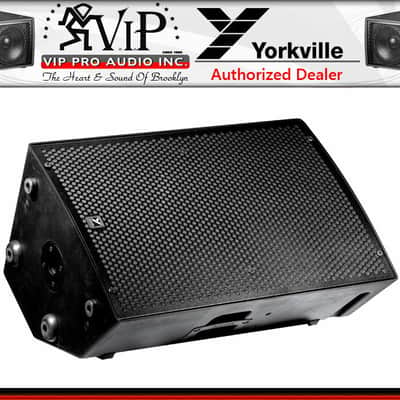

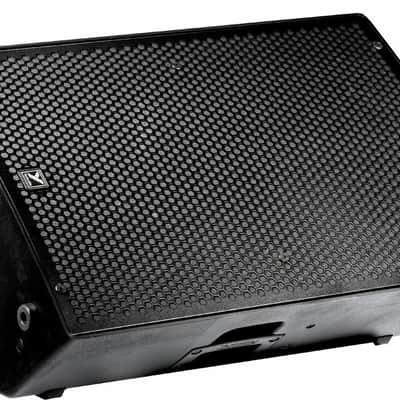

• Designed for Front-of-House or Monitor Applications

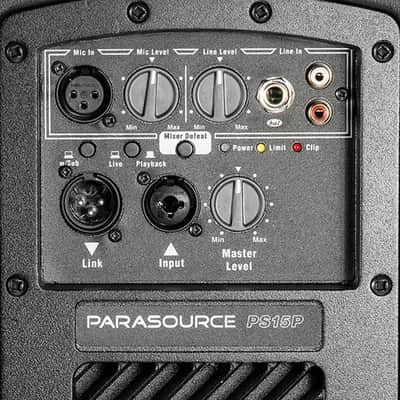

• Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs
• Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
• Integrated All Metal Speaker Standmount Adaptor
• Integrated Reinforced Flypoints
• Lightweight ABS Cabinet Construction
• Optional PS15PCOVER available
• Made in Canada

Specifications

System Type

• Active Loudspeaker

Active or Passive

• Active

Program Power (Watts)

• 1400 watts (4400 watts peak)

Max SPL (dB)

• 134dB Peak (129dB Continuous)

Frequency Response (Hz +/- 3dB)

• 45Hz to 26kHz

Crossover Frequency (Hz)

• 1.0kHz

Driver Configuration

• 15-inch / 1-inch

HF Driver(s)

• 38mm Voicecoil w/ 1-inch Exit

HF Dispersion (°H x °V)

• 85 x 50

HF Protection

• Thermal/Peak Limiter

LF Driver(s)

• 15-inch (3 inch voicecoil)

LF Protection

• Thermal/Multiband Peak Limiter

MF Processing

• Dynamic Bass Extension

Cooling Scheme

• Passive

Power Cable

• Detachable IEC

Power Consumption (typ/max)

• 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac

Inputs

• 1/4-inch, XLR, RCA

Inputs - 1/4" Jacks

• Yes (x2)

Inputs - XLR

• Yes (x2)

Input Sensitivity (Vrms Sine)

• 1.23 Vrms +4dBu

Mixer Controls

• Sub Mode HPF, Bass Boost, Mixer Enable

Level Controls

• Master Level, Mic Level, Line Level

LED Indicators

• Power, Limit, Clip

Bar Handles

• Yes

Flying Hardware

• EYEBOLT1/4A

Pole Mount Adapter (1 3/8"-3.5cm)

• Yes

Enclosure Materials

• ABS

Baffle Material

• ABS

Grille

• Perforated Metal

Dimensions (DWH xbackW, inches)

• 14.2 x 20.5 x 30.75

Dimensions (DWH xbackW, cm)

• 36.1 x 52.1 x 78.1

Weight (lbs/kg)

• 65 / 29.5
