Sonoclast MAFD 2hp Eurorack Module with Power Supply and Case (MIDI Adapter for DFAM)

*** Please note that the cases are running a little lighter in color currently. See the second photo above. ***

Play your Moog DFAM with MIDI! The MAFD 2hp lets you play the  individual steps of your DFAM in any order and any rhythm you like. Use a  keyboard, drum controller, or other MIDI controller to play the steps  live, or sync your DFAM with your DAW to sequence it alongside other  tracks.

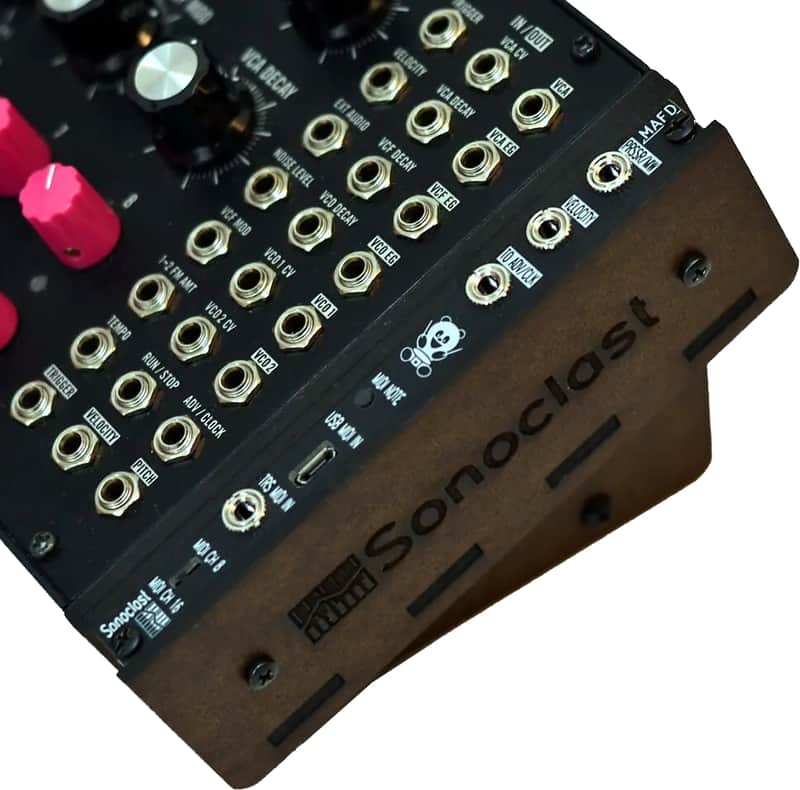

Note that this listing is for the MAFD 2hp Eurorack Module with a power supply and case. The power supply and case make your MAFD 2hp mountable on the side of your DFAM as shown in the first photo. Additionally, the case can be mounted on the outside of a tiered rack provided that you get some #6-32 x 1" machine screws to replace the four stock DFAM ones that are a little bit too short to span the tiered rack.

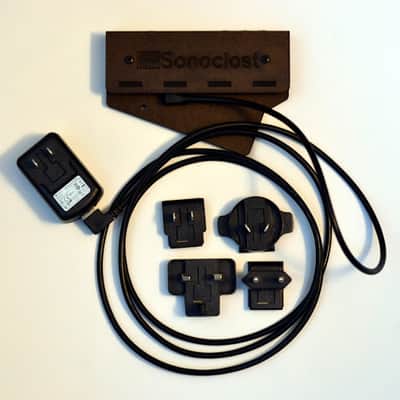

The third and fourth photos above show what is included: the module, a USB cable, a DIN to TRS adapter, the case with hardware, and a power supply.

There is another (lower priced) listing that does not include the case or a power supply so that your MAFD 2hp can be mounted and powered in your Eurorack case. You can search for it or go to Sonoclast.com to find a link to it.

Specifications

• Eurorack: 2hp wide, 36 mm deep, 45mA at +5V
• Inputs: USB MIDI as a device, MIDI TRS via DIN/TRS Type B adapter
• Outputs: TO ADV/CLK connects to Adv/Clock on a DFAM, VELOCITY  outputs 0-5V, PRSSR/MW outputs 0-5V, MIDI Note LED flashes when a note  is received on the selected MIDI channel
• One small switch to select MIDI channel 8 or 16

Please note that a phillips screwdriver is required to assemble and attach the case onto your DFAM. Instructions for doing this are available in written form in the manual and as a video which can be found on the MAFD 2hp product page at Sonoclast.com.
