Multi-Tuner Pin Hole Drilling Jig
This is the quick, easy (and fun) way to drill perfectly precise tuner alignment pin holes in your headstock. Versatile and complete with everything you need.

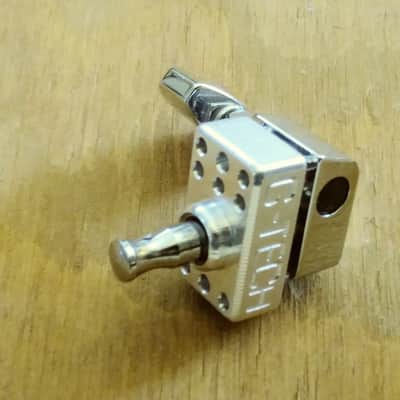

Simply slide any tuner into the back of the jig and you'll instantly be able to see which guide holes match your tuners. A printed diagram is also included.
Two different size drill bits included - Different brand/model tuners DO NOT have the same diameter pins. (Beware of jigs that compromise and use a single drill bit for all holes).
Handy finger-chuck included, no electric drill needed.
This jig and all of the tuners below mount in 10mm (25/64") headstock holes.
High Quality - Made in the USA
FITS:
- All Fender/Schaller (F-Type) tuners with two pins (locking & regular)
- All Schaller M6 tuners with two pins - NEW!
- All Schaller locking tuners with one pin
- All Schaller M6 tuners with one pin
- All Squier tuners with two pins
- All Squier tuners with one pin
- All Sperzel tuners with one pin
- All Sperzel Open Back tuners with one pin
- Hipshot Directrofit tuners for Fender
WILL NOT FIT:
- Schaller DaVinci tuners with one pin
- Any tuners that mount with screws rather than pins

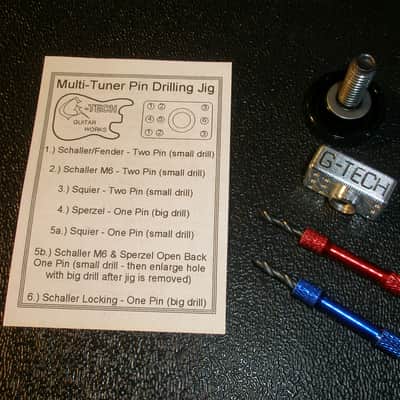

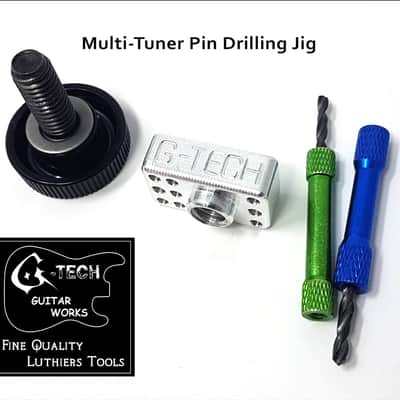

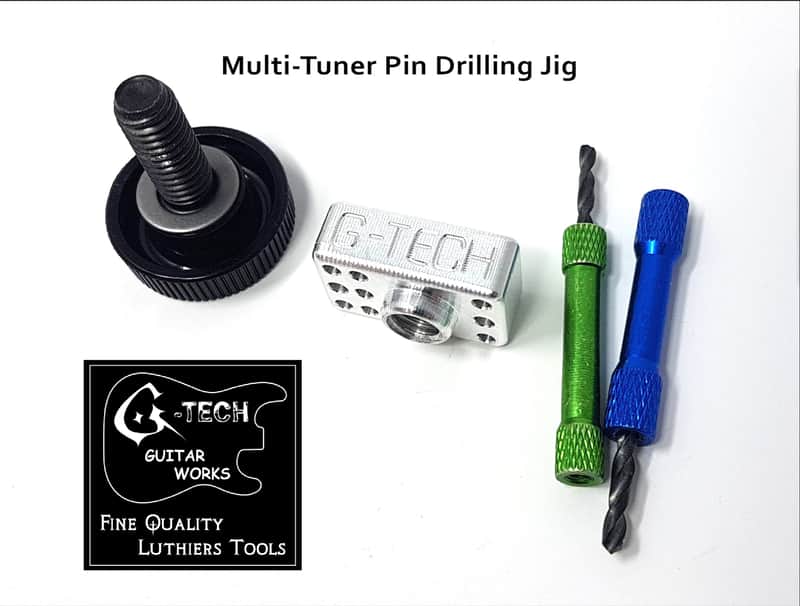

INCLUDES:
- Precision machined jig
- Clamping knob
- Brass finger chuck
- 2 different size drill bits
- Guide sheet
(Tuners & ruler not included)
Instructions:

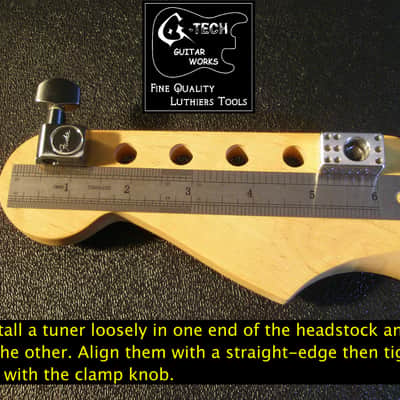

1.) Install a tuner loosely in one end and the jig in the other, aligning them with the straight-edge then tighten the clamp knob

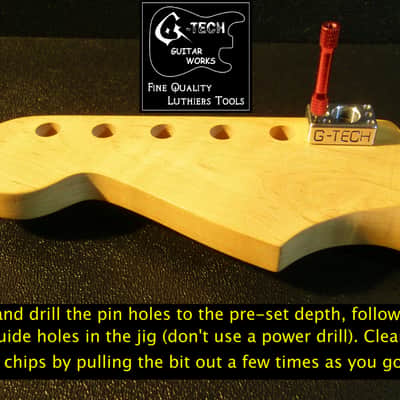

2.) Hand drill the pin holes to the preset depth, following the guide holes in the jig. Clear the wood chips by pulling the bit out a few times

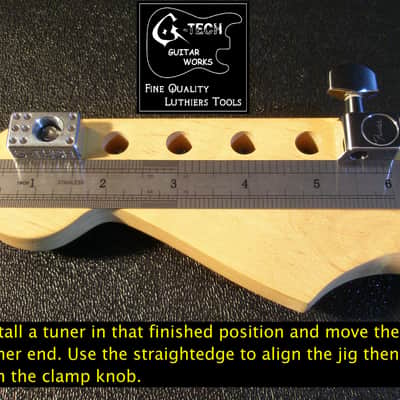

3.) Install a tuner in that finished position and move the jig to the other end. Use the straightedge to align the jig then tighten the clamp knob

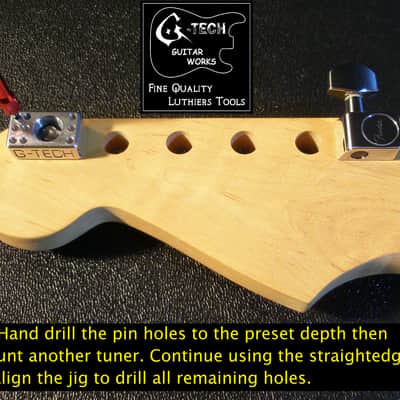

4.) Hand drill the pin holes to the preset depth then mount another tuner. Continue using the straightedge to align the jig to drill all remaining holes
