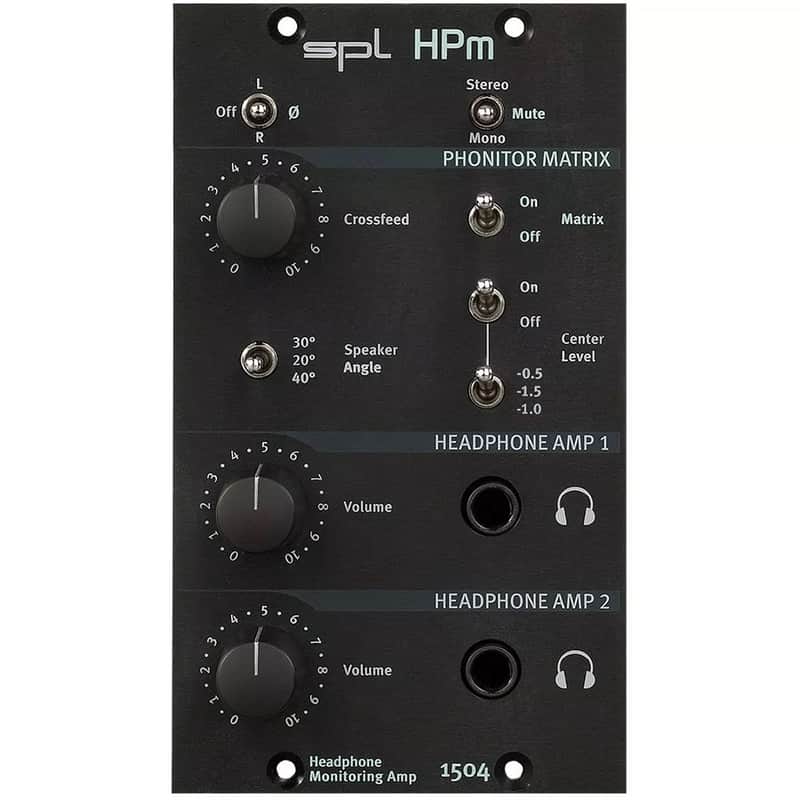

SPL HPm 500-Series Headphone Amplifier
Free Shipping
from Irmo, SC
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The SPL HPm 500-Series Headphone Amplifier brings the power of a Phonitor Headphone Amp to the convenient format of the 500 series module!
The SPL HPm 500-Series Headphone Amplifier brings the Phonitor Matrix into the world of 500 series rack modules. Each of the two headphone outputs is fed with a separate amplifier to allow independent operation of two headphones with high-quality amplification. With the Phonitor Matrix you control Crossfeed, Speaker Angle and Center Level to create speaker-like listenig and monitoring on headphones. The HPm can easily be inserted between the DAW and a monitor controller because the input signals of the HPm are slaved through to the outputs of the 500 series rack. Phase Inversion of left or right channel as well as a Stereo/Mono/Mute switch round off the feature set of the HPm.
SPL HPm 500-Series Headphone Amplifier Features
- Phase Inverse
- Stereo/Mono/Mute
- Phonitor Matrix
- Crossfeed
- Speaker Angle
- Center Level
SPL HPm 500-Series Headphone Amplifier Specifications
- Maximum input & output gain: 21 dBu
- Input impedance: 10 kΩ
- Output impedance: 150 Ω
- Common mode rejection: > 82 dB
- Frequency range (-3 dB): 10 Hz – 100 kHz
- THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
- Noise (A-weighted): -92.3 dBu
- Dynamic range: 113 dB
SPL HPm 500-Series Headphone Amplifier Includes
- HPm 500-Series Headphone Amplifier
- Manual
