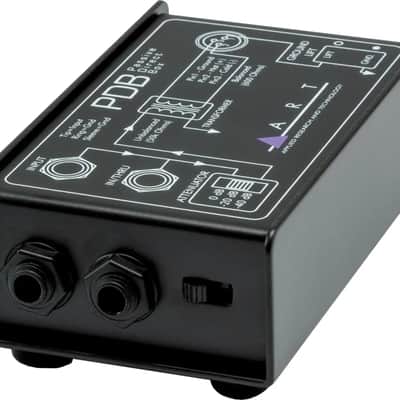

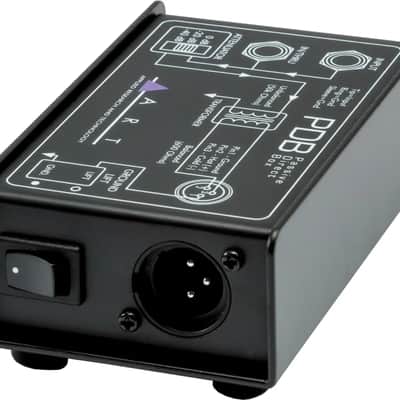

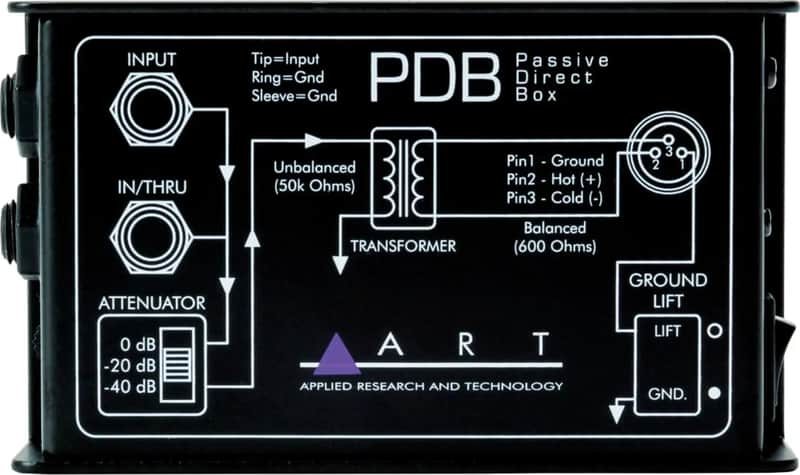

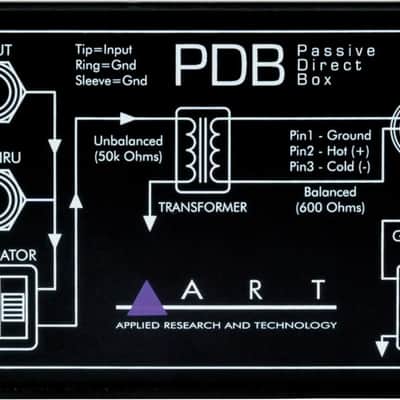

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs. The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage. A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction. As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps. Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.

Product Features

• 1/4" TRS Input and Thru Connectors
• Balanced XLR Output
• Switchable Attenuation (-20 dB, -40 dB) and Ground Lift
• Passive Design - No Power Required
• Rugged Steel Case

Technical Specifications

• Features: Ground Lift
• Active/Passive: Passive
• # of Channels: 1
• Dimensions: 2" H x 3" W x 5" L
• Inputs: 1x 1/4" TRS
• Outputs: 1 x XLR, 1 x 1/4" TRS Thru
• dB Pad: -20 dB / -40dB
