Corsynth - C107: Quad Linear VCA / VC Mixer (5U/MU)

Manufacturer Description:

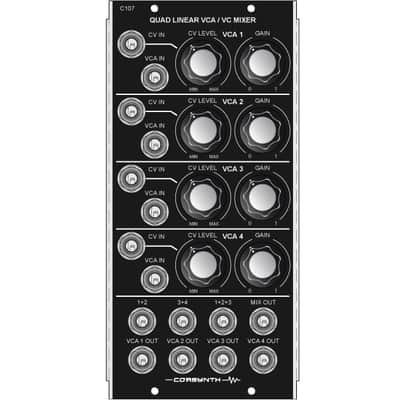

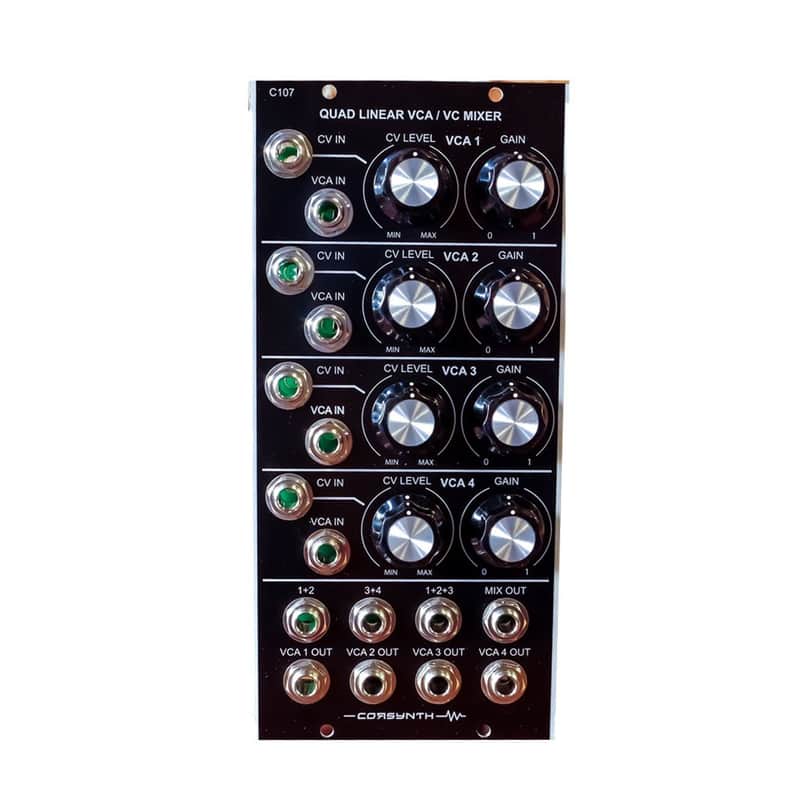

The C107 Quad Linear VCA / VC Mixer is a combination of four voltage controlled amplifiers and four mixers.

This module is really useful either in big modular synthesizers or
small/medium size systems. With four VCAs and four independent mixer
outputs, the C107 Quad VCA / VC Mixer brings you a great routing
flexibility in a only two units wide module, saving space and money.

The C107 Quad Linear VCA / VC Mixer is designed to work with audio and
control signals and can be used in many different ways , for example:

Four independent VCAs

A two channel voltage controlled mixer (with independent outputs per channel) and two VCAs.

A two channel voltage controlled mixer (with independent outputs per
channel) with a voltage controlled master channel, and one VCA.

A three channel voltage controlled mixer (with independent outputs per channel) and one VCA.

Two independent two channel voltage controlled mixers (with independent outputs per channel).

A three channel voltage controlled mixer (with independent outputs per channel) with a voltage controlled master channel.

A four channel voltage controlled mixer (with independent outputs per channel).

Each VCA features :

A signal input.

An initial gain control.

A voltage control input with a level potentiometer.

An output.

The VCAs in the included in this modules are not only attenuators, they
can also boost the input signal. Using the initial gain potentiometer
and a five volts CV signal, the VCA has a maximum gain of 2 (doubles the
signal amplitude). This is very useful for signal processing or to
boost external signals.

The C107 Quad Linear VCA / VC Mixer is built using high quality
electronic components, Switchcraft jacks, Cosmo knobs (the same used by
Moog Modular) , anodized aluminum front panel.

Technical Data

Module Format : 5U, MU format ( Synthesizers.com, Moog )

Module Width : 2 MU ( Moog Unit )

Module Depth : 52 mm ( 2,05 inches )

Power : +15V@51mA , -15V@53mA

Power connectors : Synthesizers.com , MOTM ( 4 pin )

VCA Maximum Gain : without using CV maximum gain 1 , using CV maximum gain 2
