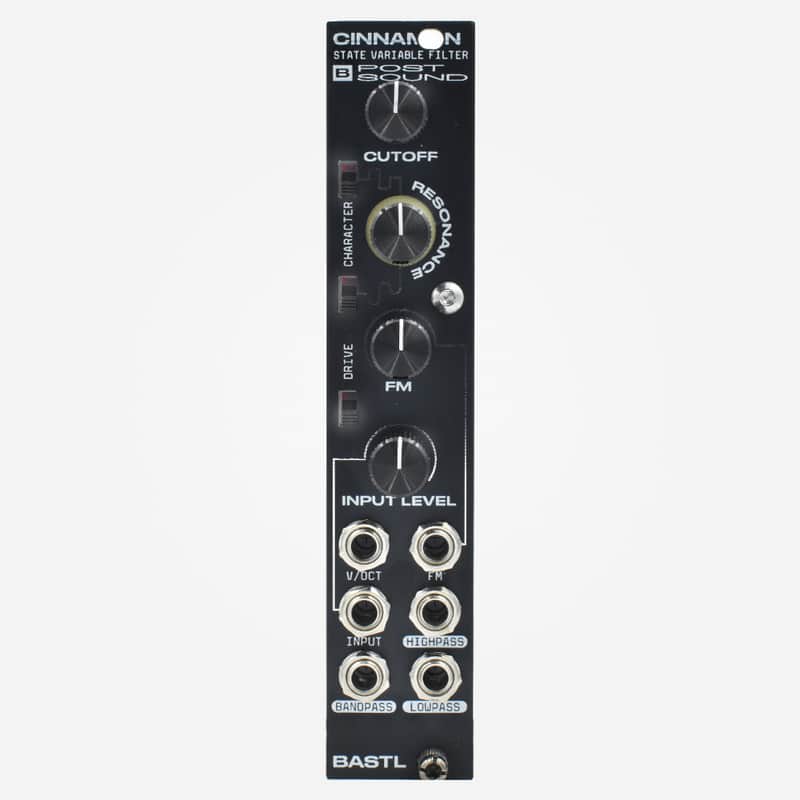

Bastl Instruments CINNAMON (Black) Eurorack State Variable Filter

Voltage controlled V/oct tracking State Variable Filter, now with a high quality black panel!

Cinnamon is a very unique sounding filter. The drive and character switches makes it a multi-flavoured spice for your sound!

Features:

• Low pass output (12db/oct 2-pole)
• Band pass output (6db/oct 1-pole)
• High pass output (12db/oct 2-pole)
• CV input with attenuator
• Volt per Octave CV input - With maxed resonance, works as an oscillator (0 degree, 90 degree, and 180 degree phased sinewave at LP,BP and HP outputs)
• Audio input with gain control
• Drive switch to overdrive the input of the filter
• Character switches to change the resonance response (character switches might break V/Oct tracking)

Specifications:

5HP
Current consumption: +12V: <30mA, -12V: PTC fuse and diode protected 16pin power connector
35mm deep
