Works perfectly. Housed in a smoke free studio. Power supply not included.

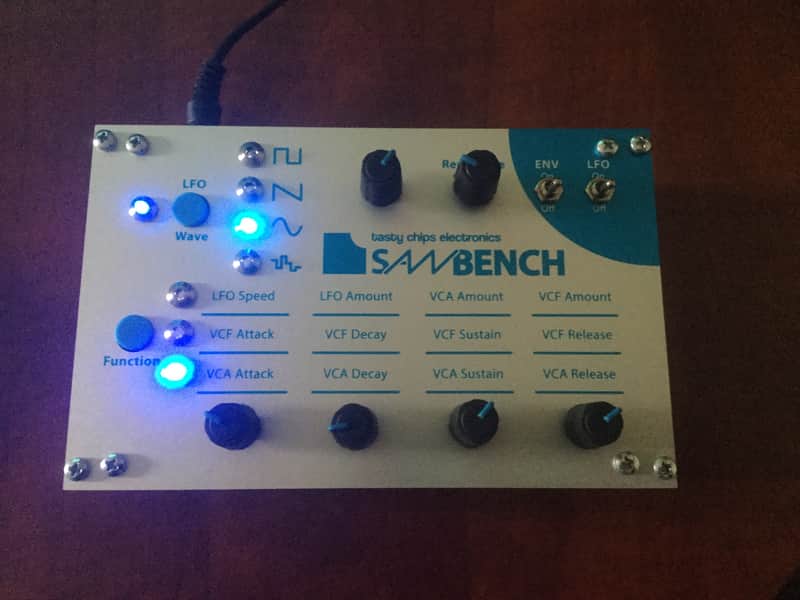

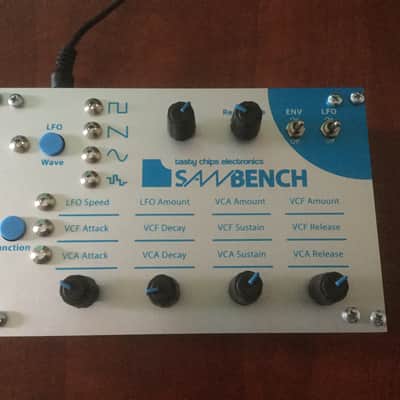

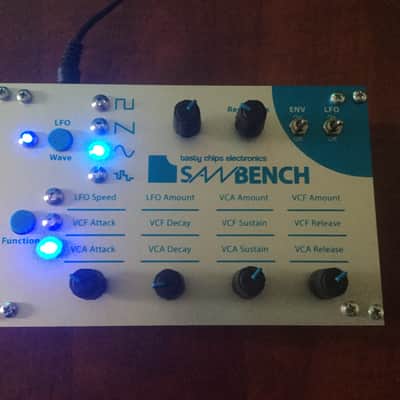

The Saw Bench Synthesizer. A highly portable and affordable monosynth, with a
100% analog signal path. This is the fully assembled unit.
Features:
Small and portable, yet very ergonomic. Focus on hands-on controls with good grouping and spacing.
A four-pole diode ladder VCF, with high resonance
Separate ADSR envelopes for VCA and VCF
LFO with 3 waveforms, plus a Sample & Hold, for VCF
Frequency Modulation for deep growling bass sounds
Manual controls such for Env and LFO enable, waveform selection, ADSR mode / LFO switching
MIDI controls of all digital features (envelopes, VCF cutoff, LFO, etc)
Legato, glide, looping ADSR’s (MIDI)
Sturdy metal casing.
Main Features:
VCO (saw, 4 Hz – 4 kHz (LFO range – around the highest piano note))
VCF (four pole low-pass, diode ladder)
VCA (80 dB)
Frequency Modulation
LFO (four wave forms, 200 mHz – 20 Hz)
2 ADSR Envelopes
Direct control: 6 rotary knobs, 2 buttons and 2 toggles
Interfaces:
Power Supply:
12V DC, 2.1mm, center positive, 1A or more
MIDI input:
DIN-5, full size
Audio out
6.35 mm phono jack, line output (-cannot- drive a headphone!)
The Saw Bench Synthesizer. A highly portable and affordable monosynth, with a
100% analog signal path. This is the fully assembled unit.
Features:
Small and portable, yet very ergonomic. Focus on hands-on controls with good grouping and spacing.
A four-pole diode ladder VCF, with high resonance
Separate ADSR envelopes for VCA and VCF
LFO with 3 waveforms, plus a Sample & Hold, for VCF
Frequency Modulation for deep growling bass sounds
Manual controls such for Env and LFO enable, waveform selection, ADSR mode / LFO switching
MIDI controls of all digital features (envelopes, VCF cutoff, LFO, etc)
Legato, glide, looping ADSR’s (MIDI)
Sturdy metal casing.
Main Features:
VCO (saw, 4 Hz – 4 kHz (LFO range – around the highest piano note))
VCF (four pole low-pass, diode ladder)
VCA (80 dB)
Frequency Modulation
LFO (four wave forms, 200 mHz – 20 Hz)
2 ADSR Envelopes
Direct control: 6 rotary knobs, 2 buttons and 2 toggles
Interfaces:
Power Supply:
12V DC, 2.1mm, center positive, 1A or more
MIDI input:
DIN-5, full size
Audio out
6.35 mm phono jack, line output (-cannot- drive a headphone!)
