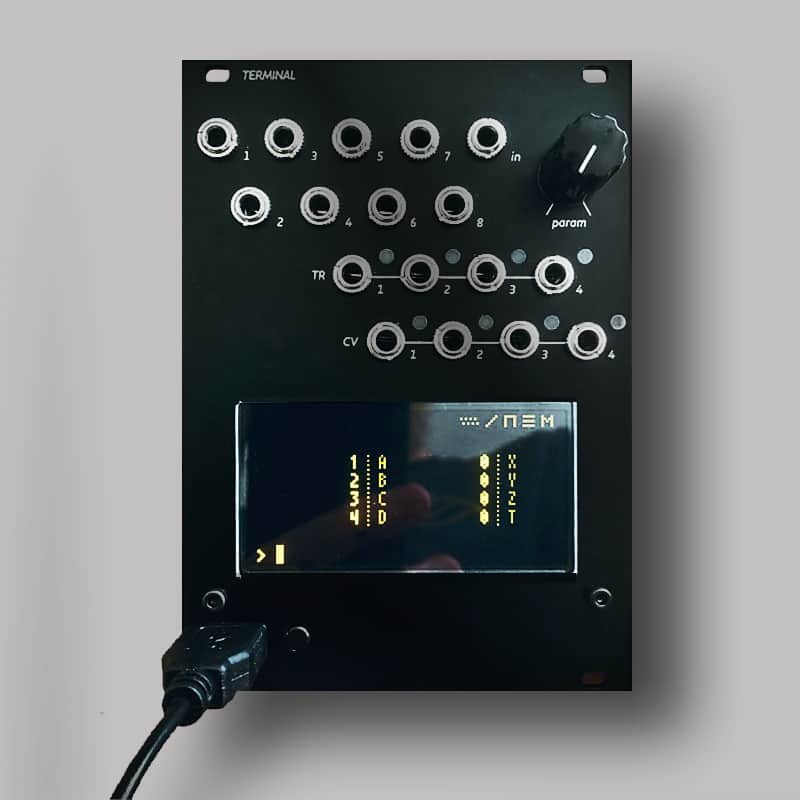

Diy monome Teletype eurorack

Teletype

- professionally assembled

- aluminum front panel

- thickness 1 mm

- quality electronic components

- flat 5 pin cable included

- screws included

- free assistance

Algorithmic ecosystem: a dynamic, musical event triggering platform.

Scripts are assigned to each of the eight trigger inputs. Herein you can set CV values (four outputs) and trigger gates (four outputs) with extended functionality for pattern manipulation, slews, randomness, sequences, basic arithmetic, stacks, delays, and much more.

Edit scripts with a USB keyboard (included with new modules + ) which plugs into the front panel. Syntax is simple and easy to learn with the provided tutorials, video, and reference pages. Teletype runs without the keyboard attached: you might treat editing as precomposition, or leave the keyboard plugged in for live coding.

Specifications

Eurorack

18hp width

26mm depth

Installation Power

Align the 10-pin ribbon cable so the red stripe corresponds to the white indicator on the rear of the module’s circuit board. This is toward the lower edge of the module.

Be careful not to misalign the connector left-to-right either – while Teletype is protected against incorrect connection, doing so may damage other modules in your Eurorack case.

Secure the module with the four included screws, hiding under the tape in the box lid.

Power consumption:

72mA @ +12V

12ma @ -12V

No +5v required

ii/i2c

If you wish Teletype to communicate with Ansible or other modules with , you will need to attach an ii cable (not included, but DIY’able ) as outlined in the  page. Teletype can also connect to a world of other . If your Teletype has a green circuit board, it can support 2 direct ii/i2c connections. If it has a black circuit board (Dec 2018 revision), it can support 4 direct ii/i2c connections.

Keyboard

Teletype cannot use a USB keyboard if it has an internal USB hub, and does not work with USB hubs in general. Otherwise most keyboards should work, but keep in mind that backlit keyboards etc. are drawing power from Teletype, so you may wish to use external USB power. Teletype assumes the keyboard layout is US-ANSI.
