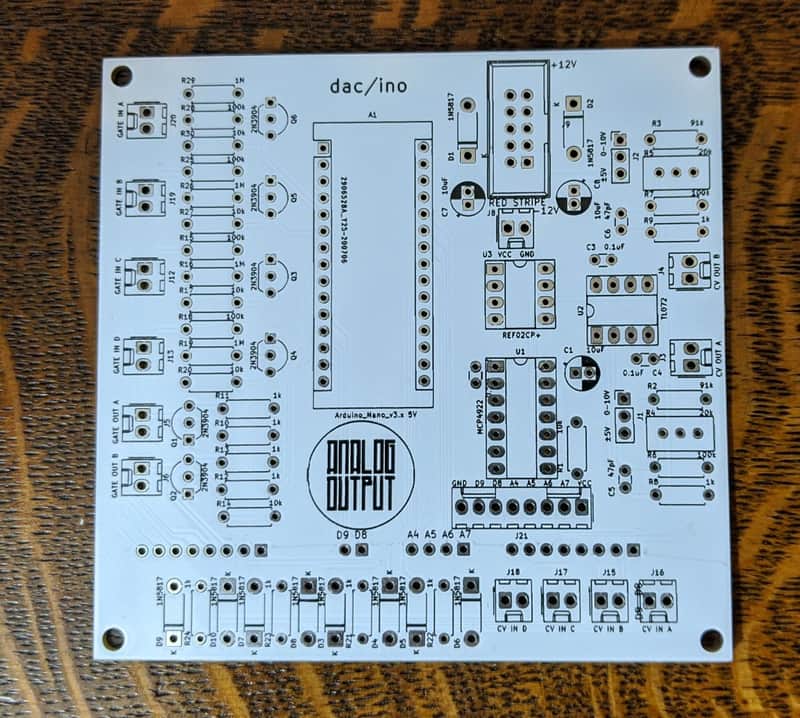

Polymorphic synth PCB which provides CV and gate I/O for an Arduino Nano. It is derived from shaduzlabs/synapse, and there are obvious similarities to ArdCore, but there are significant differences with both.
Features 4 x control voltage inputs, 0 to 5V 2 x control voltage outputs, individually configurable as 0 to 10V or -5 to 5V via jumpers, with 12 bits of resolution 4 x gate inputs (with interrupt) 2 x gate outputs Pads for additional inputs/outputs: 4 analog, 2 digital All above inputs/outputs also available via pin headers for daughterboards Voltage reference chip 1 x eurorack power connector (10 pin) Color: White
