Joranalogue Test 3 DIY Kit Eurorack V/mA Meter DIY Kit
Our users rate Reverb

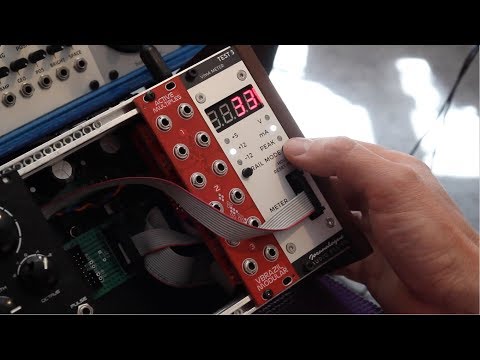

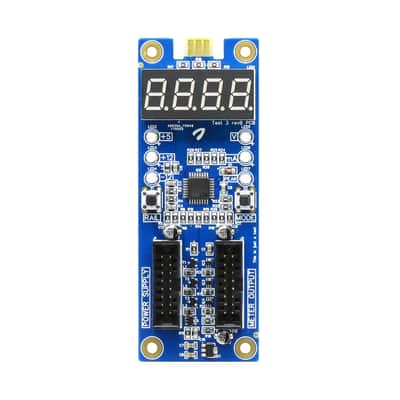

Test 3 is a purpose-designed 8hp tool for measuring voltages and currents in your Eurorack system. A single circuit board or module can now replace a convoluted test setup with multiple multimeters, custom cables etc. Two push buttons allow you to cycle the value shown on the LED display between three measurements (voltage, current and stored peak current) of the three power rails. The peak currents continually update in the background on all rails, making it ideal for quickly getting maximum current figures. Test 3 also supports testing power supplies and cables, measuring an entire system (up to 1 A of current on each rail), troubleshooting DIY modules, powering a skiff or breadboard from a larger system.

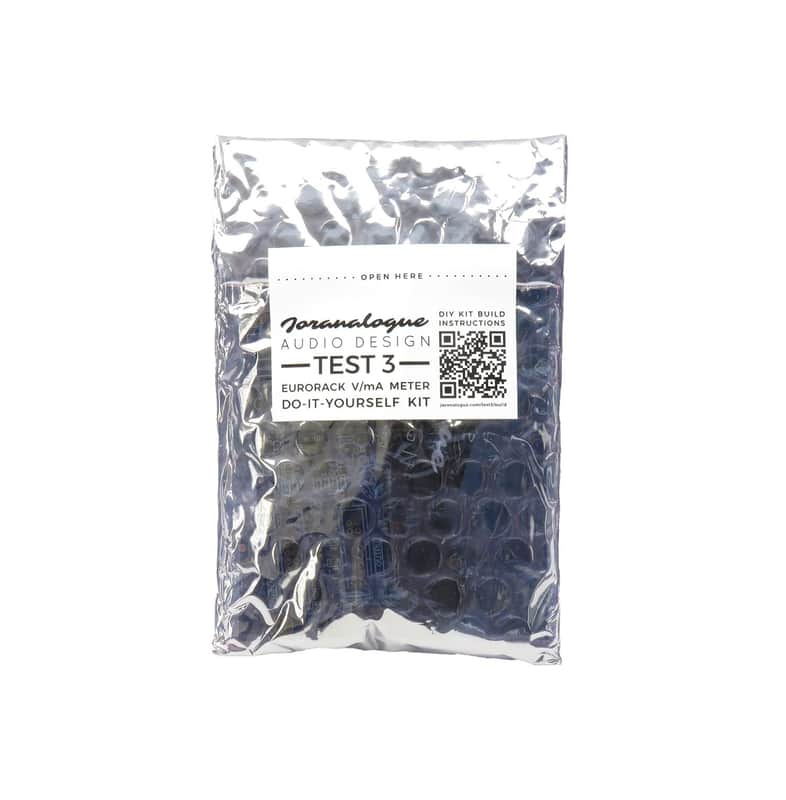

Note: Test 3 is an easy do-it-yourself project, requiring some soldering and basic tools. With just 11 components to solder.
• 8 HP 30 mm deep
Utility
Found Sound Australia Pty Ltd.
110 Albert St
Brunswick East, VIC 3057
Australia
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Horizontal Pitch |
|
| Modular Synth Format |
|
