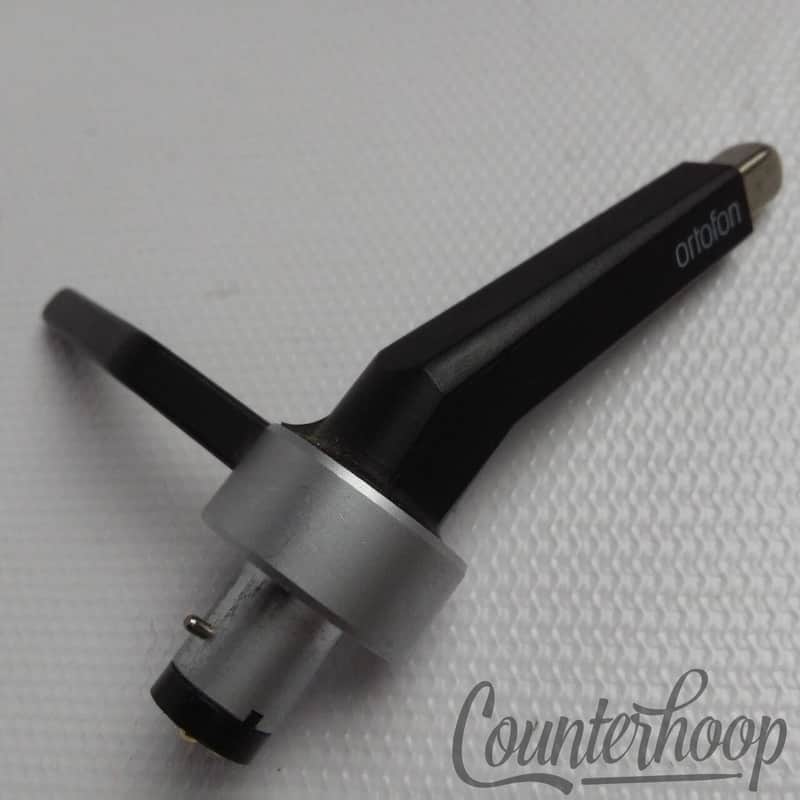

*Ortofon Concorde Cartridge Black DJ Scratch Turntable Turntablism*

• The Ortofon Concorde is a general purpose turntable cartridge for scratch and back cueing, mounted with a spherical diamond
• It achieves an output of 5
• 0 mV
• Several Ortofon technologies make it possible to realize high sound quality and low record wear at the high tracking forces that are necessary in disco environments

• One of the best cartridges for hip hop dj's with accurate playback and durability to scratch records

US Shipping is $11.95 with 1-3 Day Delivery

International Airmail is $36.95

Condition Description: EXC - Cartridge is in excellent condition, very clean with minimal signs of use. Just needs a needle to work perfectly

Technical Info:

Output voltage at 1000Hz, 5cm/sec.  -  5 mV

Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz -  15 dB
Frequency range at -3dB  -  20-20.000 Hz
Frequency response  -  20-18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommmended tracking force  -  70 ��m
Compliance, dynamic lateral -  7 ��m/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 ��m
Tracking force range  -  3,0-5,0 g (30-50 mN)
Tracking force recommended -  4,0 g (40 mN)

Tracking angle -  20��
Internal impedance, DC resistance -  750 Ohm
Internal inductance -  450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde weight -  18,5 g
OM cartridge weight - 5,0 g
Replacement stylus unit  -  Pro or Pro S
