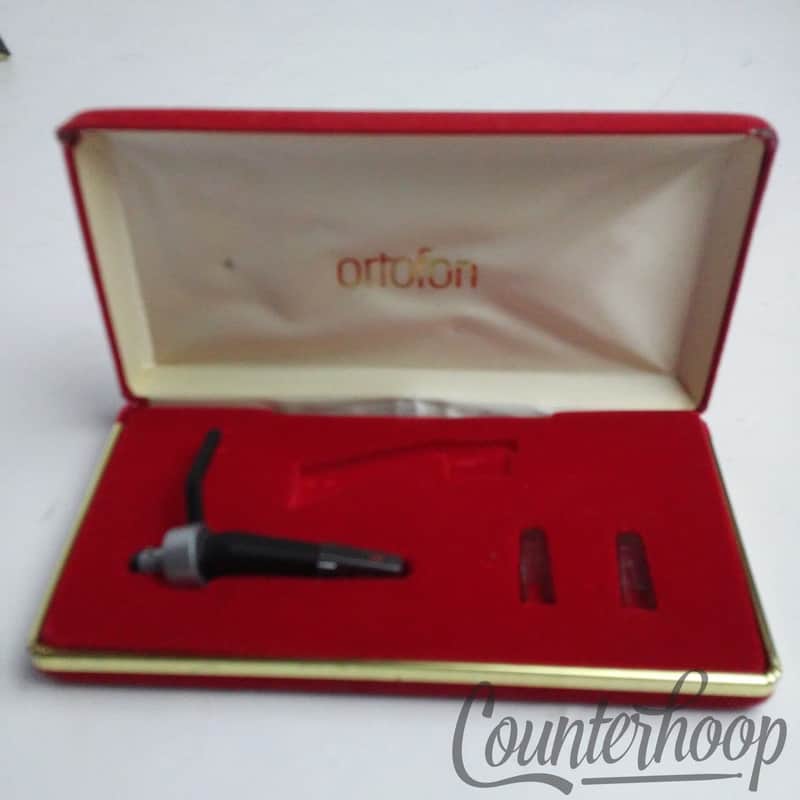

Ortofon Concorde Pro S Cartridge + Stylus + Protective Case DJ Scratch Turntable
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
- The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable
One of the best cartridges for hip hop dj's with accurate playback and durability to scratch records
With an output voltage of 7mV and a frequency response of 20Hz to 18kHz, this is a cartridge that performs with the best club setups. 3-5 grams tracking range. Its spherical stylus is best suited for club/scratch applications.
Features- 5mV output
- 20Hz to 18kHz frequency response
- Spherical stylus tip
US Shipping is $11.95 with 1-3 Day Delivery
International Airmail is $36.95
Condition Description: EXC - Cartridge and stylus are in excellent condition, very clean with minimal signs of use. Fully functional with no damages. Includes protective case
Technical Info:
Output voltage at 1000Hz, 5cm/sec. - 5 mV
Channel balance at 1kHz - 2 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Frequency response - 20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmended tracking force - 70 ��m
Compliance, dynamic lateral - 7 ��m/m N
Stylus type - Spherical
Stylus tip radius - R 18 ��m
Tracking force range - 3,0-5,0 g (30-50 mN)
Tracking force recommended - 4,0 g (40 mN)
Tracking angle - 20��
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde weight - 18,5 g
OM cartridge weight - 5,0 g
Replacement stylus unit - Pro S
