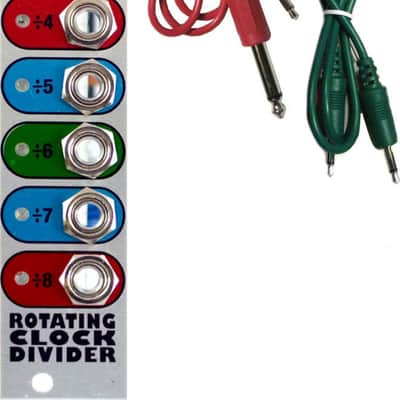

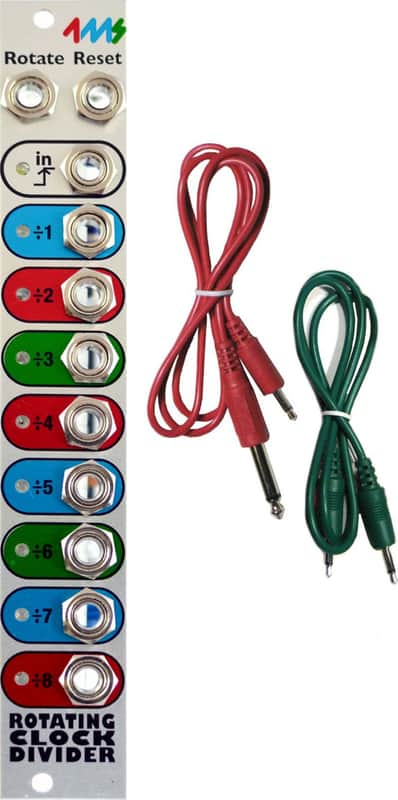

4MS RCD Rotating Clock Divider V2 Eurorack Synth Module w/ 2 Cables

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.JacksClock Input (5V to 15V clock, rising edge triggered), max 3kHzCV Rotate (0V to +5V input)CV Reset (5V to 15V trigger)Divided Clock Outputs (8 jacks):Divide-by-(1+R)Divide-by-(2+R)Divide-by-(3+R)Divide-by-(4+R)Divide-by-(5+R)Divide-by-(6+R)Divide-by-(7+R)Divide-by-(8+R)...where R is the CV Rotation.Selectable Gate/Trigger mode:Selectable Divide range up to Divide-by-64:Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.Selectable Auto-reset: Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

Product Features

• CV Reset jack to reset/re-sync all jacks
• CV Rotate jack to shift divide-by amount on each jack
• Divide-by-1 to Divide-by-64, on 8 output jacks
• Divide-by-1 to Divide-by-64, on 8 output jacks

Attributes

• Type (X): Divider/Distributor
• Color (X): Silver

Included Items

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.

Attributes

• Color: Silver

Technical Specifications

• Type: Synth Module

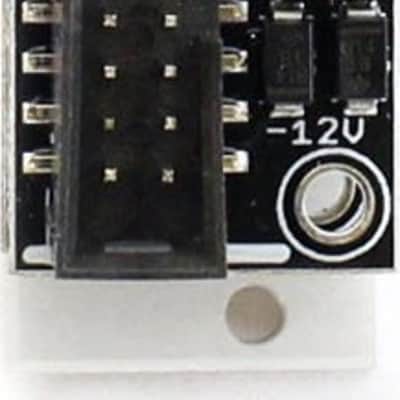

• Power Supply: Requires Eurorack case and power supply
• HP Size: 4HP

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Green

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Red

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"
