Alpha Potentiometer A500K Concentric Stacked Pot

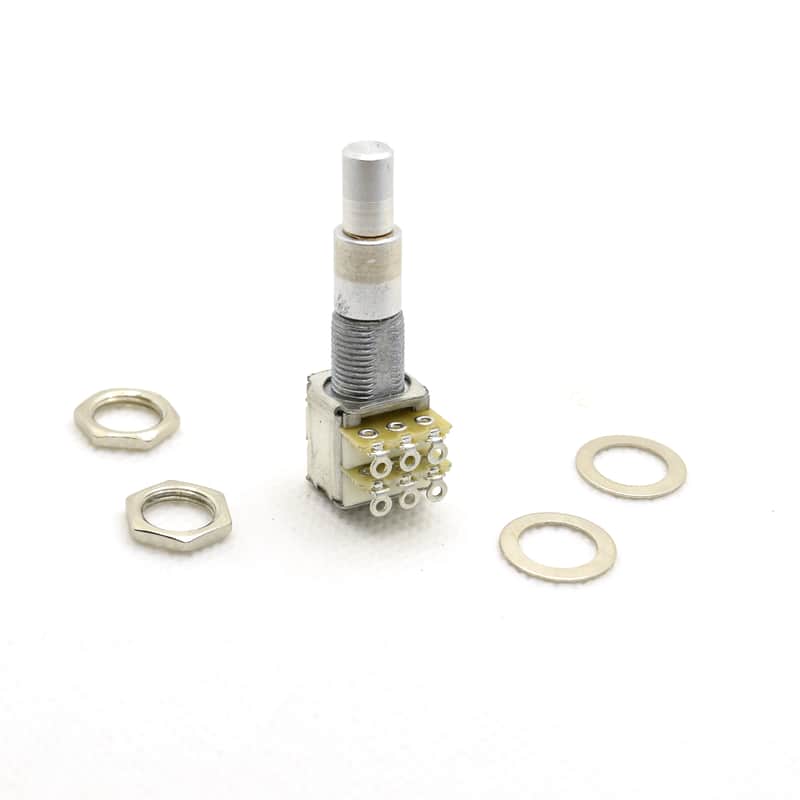

One A500K Concentric Stacked Potentiometer

6mm top shaft, 8mm bottom

Threaded bushing is 3/8" diameter x 3/8" long
Overall length is 1 3/4"

These are great for stacking tone and volume in one control. NO center detent.

This design is far more compact and lower profile than a normal concentric stacked pot. With a barrel housing that is just a little over half an inch tall and wide, you have tons more room to work within your control cavity. The elongated shafts also provide more room to move the knobs up and down as desired.

This has the same shaft measurements, same threaded bushing length and diameter of a regular concentric pot in a far better, more compact design. These are perfect for any guitar, bass, keyboard, PA or amplifier application.

High quality, made in Korea

Thompson Guitar & Thrift is your go-to source for high quality and affordable guitar parts, musician owned and operated.

For quantity pricing and B2B discounts for small business guitar builders, guitar shops and luthiers, send us a message!
