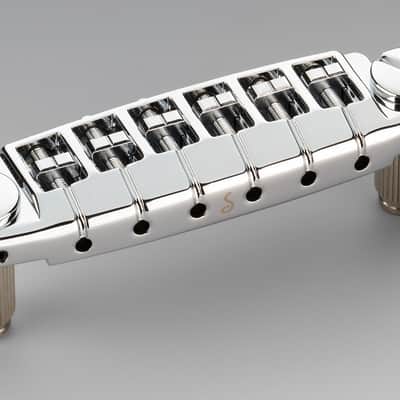

Schaller Germany Signum Wrap-Around Locking Guitar Bridge - CHROME 12350200

Introducing the all new Schaller Signum locking bridge.

Designed to boost your guitars sound, playability and looks.

• Special design locking studs for tight connection and perfect sound coupling.
• Superb tonal definition by state-of-the-art string saddle shaping.
• Perfect natural resonance resulting in rich dynamics, sustain and overtones.
• Top surface elements designed for unparalleled playing comfort.
• Vast intonation space of 9 mm string saddle travel.
• Meticulously designed break and pressure angles.
• Optimized string-through-bridge routing for effortless restringing.
• Rectangular ballend retainer holes to prevent untwisting ballends.
• Elegance and versatility for all guitar styles.
• Suitable for curved and flat guitar tops alike.
• New die-cast zinc with machined special-design brass saddles.
• With its sleek design and unique construction details Signums G/D string height above body can be adjusted as low as 13.20 mm (0.520).

Technical specification

• distance height adjustment screws 81.8mm
• string spacing E-e 52.5mm
• string spacing individual 10.5mm
• string radius 12“ (usable for fretboard 10-14 inch)
• minimal G/d string height above body 13.2mm
• maximum string gauge 80
• weight 90g (206g with accessories)
• for lefty: yes

 Scope of supply

• 2 Signum Locking studs M8 with 2 Signum Locking stud bushings 11.2 x 25 mm
• 1 Signum Locking key ergonomically shaped for trouble-free locking
• 2 pairs of different lengths Allen screws (6 mm/10 mm) for flawless visual appearance (6 mm pre-installed)
• 1 Allen key for Allen screws
