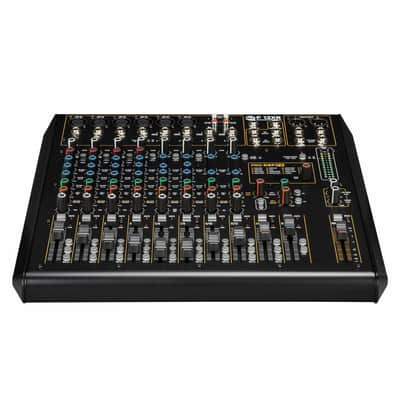

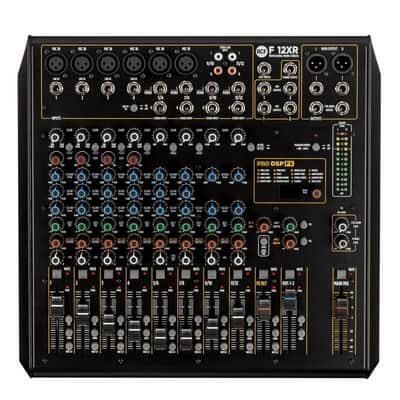

RCF F 12XR 12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 4 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• Internal Universal Power Supply

The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.

SPECIFICATIONS

Electrical specifications

FREQUENCY RESPONSE:

• 20 Hz ÷ 20 kHz

 THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):

• <0,02% A-Weighted

POWER SUPPLY:

• Internal

VOLTAGE REQUIREMENTS:

• 100 V - 240 V

POWER CONSUMPTION (W):

• 24 W

Inputs

GAIN RANGE:

• 0 dB ÷ -50 dB

GAIN SELECTION:

• 20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):

• 1 Mohm

HI-Z LINE INPUTS:

• 1

INPUT NOISE LEVEL (DBU A-WEIGHTED):

• -124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):

• 14k ohm

LINE:

• 4

LINE INPUT IMPEDANCE (KOHM):

• 21k ohm

LOW CUT:

• 80 Hz

MIC:

• 6

PHANTOM POWER +48V:

• Yes

STEREO LINE:

• 4

STEREO LINE GAIN SELECTION:

• 20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:

• 15k ohm

Outputs

MAIN MIX:

• 1

CONTROL ROOM:

• Yes

FX SEND:

• 1

AUX SEND:

• 1

AUX OUTPUT:

• 2

GROUP OUT:

• 1

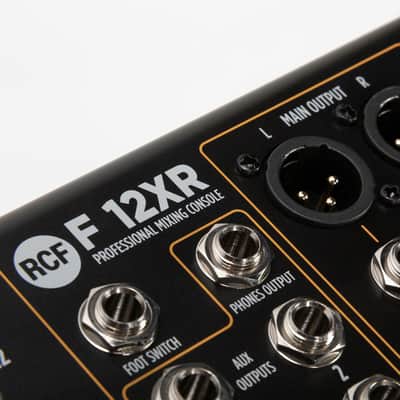

PHONES:

• 1

Outputs specifications

MAIN OUT LEVEL (DBU):

• 28 dBu

AUX OUT LEVEL (DBU):

• 28 dBu

GROUP OUT LEVEL (DBU):

• 28 dBu

PHONES OUT IMPEDANCE (OHM):

• 150 ohm

Compressors

RCF COMPRESSORS:

• n° 4 Single Control Compressors on Channels 1 to 4

EQ

INPUT CHANNELS EQ:

• 2 Shelving / 1 Generic

DESCRIPTION:

• High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

AUX:

• 1 PRE/POST

FX POST:

• 1

Internal Effects

SEND EFFECTS:

• 1

USB audio

TYPE:

• B

PLAY TRK:

• 2

REC TRK:

• 2

SUPPORTED SAMPLE RATE (KHZ):

• 44.1, 48.0 kHz

Other features

FOOTSWITCH:

• Yes

Standard compliance

CE MARKING:

• Yes

Physical specifications

CABINET/CASE MATERIAL:

• Metal

COLOR:

• Black

Size

DEPTH:

• 355 mm / 13.98 inches

HEIGHT:

• 97 mm / 3.82 inches

WEIGHT:

• 4.5 kg / 9.92 lbs

WIDTH:

• 373 mm / 14.69 inches

Shipping information

PACKAGE DEPTH:

• 425 mm / 16.73 inches

PACKAGE HEIGHT:

• 140 mm / 5.51 inches

PACKAGE WEIGHT:

• 5.5 kg / 12.13 lbs

PACKAGE WIDTH:

• 400 mm / 15.75 inches
