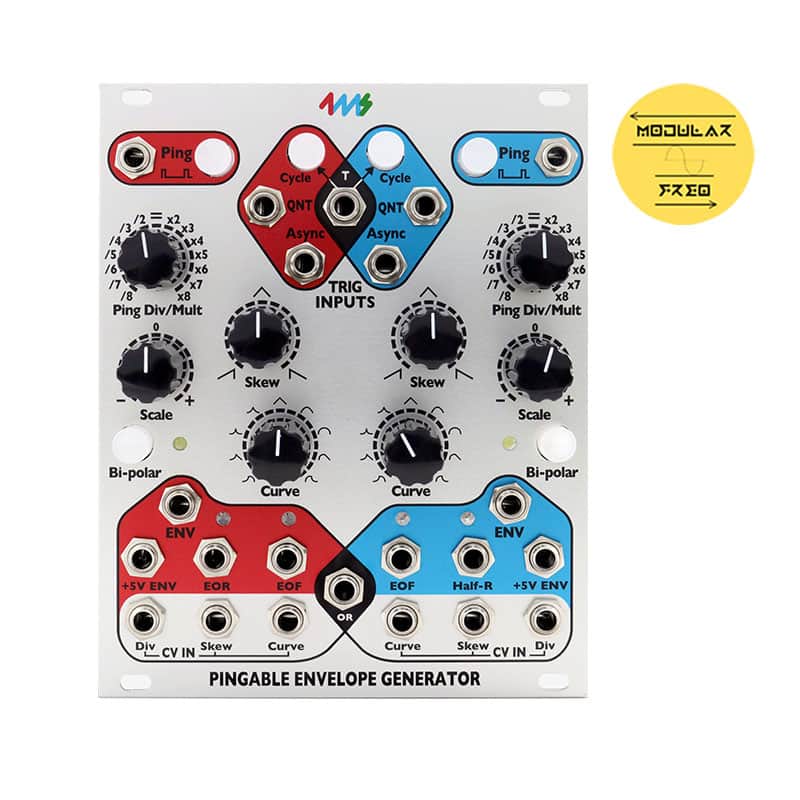

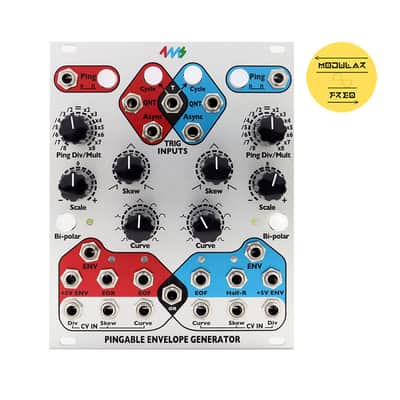

The Pingable Envelope Generator (PEG)
from 4ms is a dual envelope generator whose envelope lengths are set by incoming clocks or "pings".
The PEG has full CV control of envelope shape, skew, and ping (clock) division/multiplication, as well as a plethora of triggering and cycling options (AD, AR, quantization, cycle), and a tap tempo button for each channel.
Electrical and Mechanical Specifications:
- Module size:
- 20 HP Eurorack format module
- 16-pin Eurorack power header
- 1.0" (26mm) maximum depth with power cable
- Power consumption:
- +12V rail:
- 60mA max with jumper selecting external 5V
- 105mA max with jumper selecting internal 5V.
- +5V rail:
- 40mA max with jumper selecting external 5V
- not used (0mA) with jumper selecting internal 5V.
- -12V rail:
- 35mA max
- A jumper selects using +5V from the power supply, or generating +5V on-board from the +12V rail.
- Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
Included with the PEG:
- 16-to-16 pin power cable
- 4 M3 Knurlie screws
