High-End DCS Elgar Plus & DCS Purcell DAC + Upsampler

DCS Elgar Plus IEEE1394 DAC + DCS Purcell Upsampler Without box, with remote control

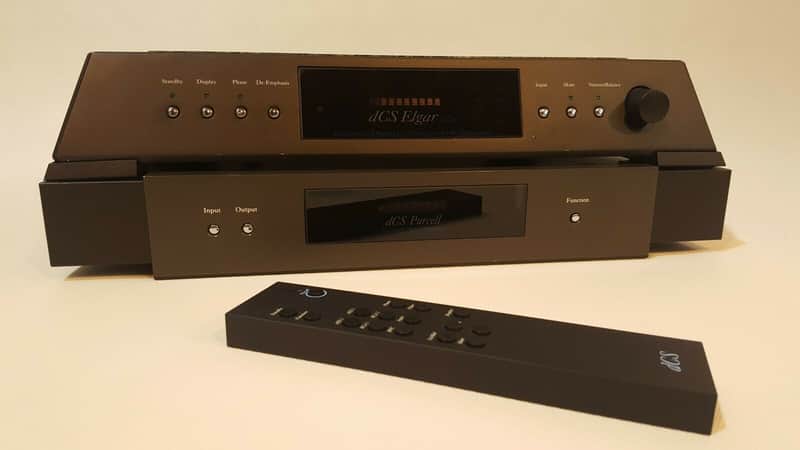

Elgar Plus - the most perfect DAC 24/192 and DSD Purcell - the converter of digit capacity and frequency of a signal to 192 kHz and 24 bits An uncompromising system for playing the right sound. I can sell a sound card with which you can listen to Hi-Res files on your computer, including DSD. I can sell all the cables to the inputs / outputs. This kit was bought for $ 24,000. The kit was rarely used to demonstrate this system. The state can be seen in the photo, worked few, not even warmed up.
about Elgar Plus is a reference DAC released in 2000. with a retail of $ 19000. The dCS Elgar Plus is derived from dCS's award-winning Elgar, the world's first 24/96 and 24/192 audiophile DAC. Elgar Plus offers many improvements over the standard Elgar, including the ability to handle DSD from IEEE 1394 or SDIF-2 interfaces, the ability to slave to a World Clock or act as a Master Clock, a digital output, and a substantially expanded Function Menu. All dCS DACs feature patented dCS Ring DAC technology, which unveils the intricate low- level musical detail that is dCS' hallmark. Specifications Elgar Plus 5-bit, approximately 3MS/s oversampled, dCS-patented Ring DAC topology. 5-bit, approximately 3MS/s oversampled, dCS-patented Ring DAC topology. Integral digital volume and balance controls. Inputs: dual AES/EBU XLR, BNC, TosLink, ST optical (optional), word clock (I/O), SDIF-2, DSD, IEEE1394 (I/O) Analog outputs: XLR balanced, RCA single-ended Sample rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, or 96kHz on single-wire interfaces and SDIF- 2/word-clock input, auto-selected. Optical inputs not guaranteed at 88.2kHz and 96kHz. 88.2kHz, 96kHz, 176.4kHz, or 192kHz on dual AES interface auto-selected. 2.822MS/s for DSD on IEEE1394 interface requires a 44.1kHz word clock. 44.1kHz for word-clock output in master mode, not temperature-compensated. Frequency responses (set to filter 1): Fs=32kHz: 10Hz-15kHz, ±0.1dB. Fs=44.1kHz or 48kHz: 10Hz-15kHz, ±0.1dB. Fs=88.2kHz or 96kHz: 10Hz-35kHz, ±0.1dB. Fs=176.4kHz or 192kHz: 10Hz-55kHz, +0.25/-0.35dB. DSD: 10Hz-55kHz, +0.2/-0.35dB. Dimensions: 18.15" W by 2.94" H by 16" D. Weight: 26.4 lbs About dCS Purcell is a reference digital-to-digital converter released in 2000. with a retail of $ 5000. signal frequency converter The appearance in January 1999 of dCS Purcell - the first high-precision re-sampler, designed specifically for record buffs, was an event. Both digital processing hardware and Purcell software are developed by dCS, which allows us to upgrade the device, improving its functionality and characteristics. The newest version of Purcell can not only increase the sampling rate and signal width of digital audio sources (CD and DVD players, digital radio receivers) to 192 kHz and 24 bits. The digital-to-analog conversion of a high sampling rate signal offers the following advantages:

• improved dynamics;
• increases the width and depth of the sound stage;
• more accurately reproduced bass;
• improved resolution of parts;
• the sound becomes more free and natural.

These are distinct improvements, clearly felt by even inexperienced listeners. Such an effect may seem implausible and contrary to common sense, but over the past 5 years we have successfully demonstrated this technique to thousands of amazed visitors to exhibitions around the world, using various amplifiers and acoustic systems. The reaction was very different: from the amazed silence that followed the beat of the jaws that fell to the floor, to a complete daze, which deprived of the ability to ask questions about what was just heard. Imagine that you have installed a new, higher quality pickup head on your turntable. You play the same records, but each disc is revealed much more fully than before. In the same way, Purcell gives you the opportunity to hear familiar works of music in a new way. Specifications of dCS Purcell - 24/192 - Digital Upsampler Input sample rates: 32, 44.1, 48, 88, and 96kHz. Output sample rates: 32, 44.1, 48, 88, 96, 176.4, and 192kHz. Output word lengths: 16, 18, 20, 22, and 24 bits. Noiseshaping options: first-, third-, and ninth-order. Dither options: Triangular, Noise Shaped Triangular, Top Hat PDF. Digital interfaces: S/PDIF (RCA and BNC), AES (XLR), and ST (optional extra). Output digital interfaces: S/PDIF (RCA and BNC), AES, dual AES (XLR). Digital downsampling function Dimensions: 18" (461mm) W by 2.4" (62mm) H by 15.8" (406mm) D. Weight (kg.): 8.5 kg Made in the UK
