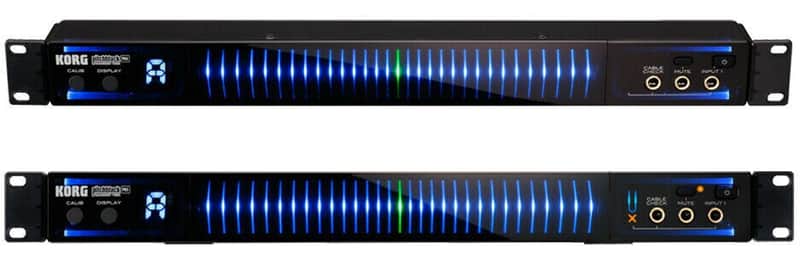

Korg PB05 Pitchblack Pro 1U Rackmount Guitar/Bass Tuner

• Korg PB05 Pitchblack Pro 1U Rackmount Guitar/Bass Tuner
• 19-inch 1U rackmount tuner for guitar/bass
• Large "3D" style visual meter for unprecedented visibility
• Lightweight, thin, with removable; not limited to rack installation
• Three meter display modes: regular, strobe, and half-strobe
• Cable Checker warns of broken or shorted cables

Since producing the world's first rackmount tuner, the DT-1pro, which appeared in 1987, Korg has continued to produce classic models that define the era, including the DTR-1/DTR-2 in 1994 and the DTR-1000/DTR-2000 in 2002. Now, in 2013, Korg unveils its latest rackmount model. The pitchblack Pro features a new "3D" visual meter with a three-dimensional expression of light that delivers an unprecedented visual element. Although it's in a rackmount form factor, the body is ultra-lightweight and slim, allowing it to be used anywhere. This is a new generation of rackmount tuner that every guitarist/bassist with professional aspirations should experience. The pitchblack Pro is a rackmount tuner that's easy to see even from a distance, allowing you to tune confidently. It's ideal not only on stage but also during rehearsals or recording. The crisp lights in your rack will attest to your professionalism. While the previous DTR-1000/DTR-2000 models weighed 1.4 kg, the pitchblack Pro is astoundingly light at 363 g. The depth has also been dramatically reduced from 113 mm to 49 mm, allowing it to be installed in an effect pedalboard. The rackmount adapters on the left and right can be attached or detached at a touch, and can be attached to the bottom of the unit to serve as a stand. The unit can also be used in a variety of situations other than in a rack; you can simply set it in a desired location, or attach it to a floor monitor.

Tuning: 12 Note Equal Temperament
Detection Range: E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
Calibration Range: A4 = 436-445 Hz (1 Hz steps)
Detection Accuracy: +/- 1 cent
Display Mode: Regular / Strobe / Half Strobe
Input impedance: 1 M ? (when tuner is on)
Connectors
Front Side:
Input 1 (mono 1/4" jack) for Guitar /Bass
Mute (mono 1/4" jack)
Cable Check (mono 1/4" jack)
Rear Side:
Input 2* (mono 1/4" jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4" jack) DC IN (9V)
Power supply: DC 9V, AC adapter(KA350)
Dimensions (W x D x H): Tuner Only: 430 x 49 x 44 mm / 16.93 x 1.93 x 1.73 inches (including protrusions)
When used with the rackmount adapters: 482 x 49 x 44 mm / 18.98 x 1.93 x 1.73 inches (including protrusions)
Weight: 363 g / 12.80 Oz. (Tuner Only)
Accessories: AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
