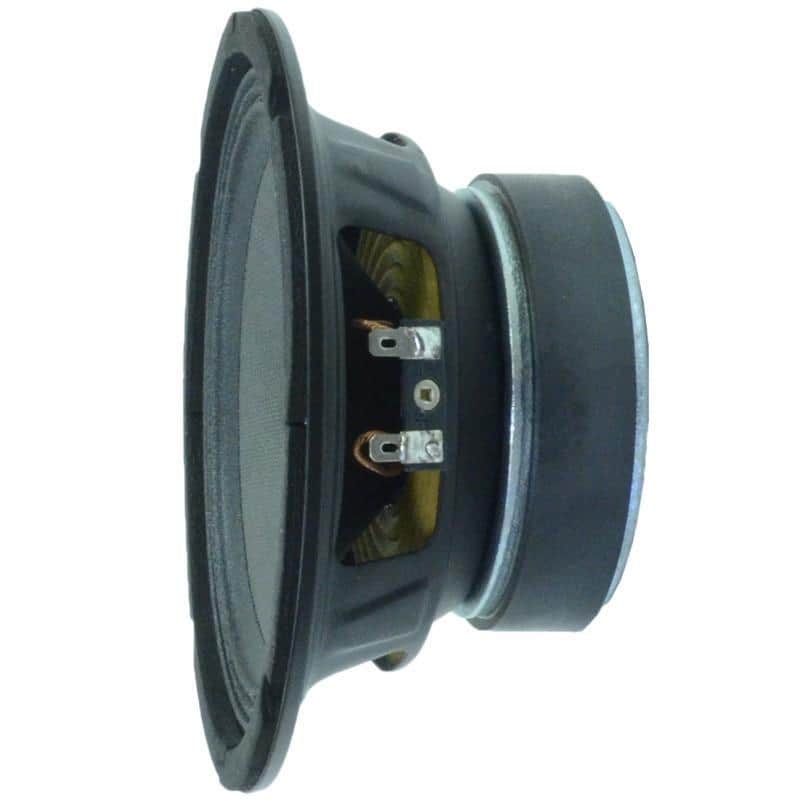

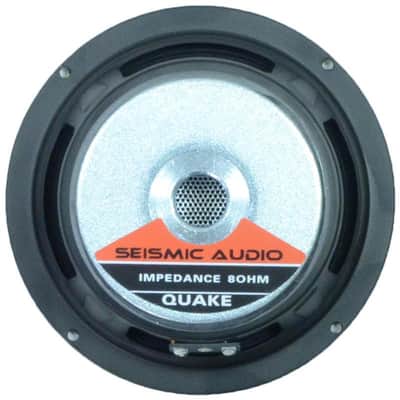

Quake 6" Loudspeaker - 8 Ohm Steel Frame Driver for PA Speakers

When your PA cabinet takes a hit and you need a replacement driver that won't break the bank, this 6-inch midrange workhorse handles the job. The Quake 6" covers that critical 500Hz to 5kHz range where vocals live and die – it's not trying to be a full-range miracle worker, just solid midrange reproduction that cuts through the mix.

The 16-ohm impedance is the real story here. If you're building custom monitor wedges or need to wire multiple drivers in series without your amp seeing a crazy low load, this impedance makes the math work in your favor. The pressed steel frame takes the kind of abuse that comes with load-ins and teardowns, while the paper cone delivers natural midrange response without the harshness you get from some cheaper alternatives.

At 50 watts RMS with 95dB sensitivity, you're getting decent output without needing massive amplification. This isn't a powerhouse – it's designed for venues in the 100-200 person range when part of a proper system with complementary drivers. Think church installations, small club monitors, or replacing blown drivers in existing cabinets.

The 30-ounce magnet and 1.5-inch voice coil provide enough motor strength for consistent performance, and at 4 pounds, it's substantial enough to feel professional without being a back-breaker during installation.

Bottom line: This is a solid replacement/build driver for anyone who needs reliable midrange performance with 16-ohm impedance – perfect for DIY monitor builds or PA repairs where impedance matching matters more than earth-shaking output.

Technical Specifications

• Power (RMS): 50 Watts
• Power (Peak): 100 Watts
• Driver Size: 6 inches
• Frequency Response: 500-5K Hz
• Impedance: 16 Ohm
• Sensitivity: 95 dB
• Voice Coil: 1.5 inches
• Magnet: 30 ounce
• Chassis: Pressed Steel
• Cone Material: Paper
• Weight: 4 lbs
• Warranty: One year
• Recommended For: DIY builds, PA repairs, midrange applications

Frequently Asked Questions

Can I swap this 16-ohm driver for an 8-ohm one that blew?

Not directly. Changing impedance affects your amp load and can mess with passive crossovers if your cabinet has them. Check that your amp is happy with 16-ohm loads and verify any existing crossover components are designed for this impedance before making the swap.

What kind of cabinet size works best for this driver?

For sealed enclosures, stick to 0.5 to 1.0 cubic feet. If you're going ported, 1.0 to 1.5 cubic feet gives you room to work. The exact tuning depends on your crossover points and what frequency response you're after, but these ranges are solid starting points.

How many people can this handle in a live setting?

In a properly designed system with tweeters and subs, this driver works well for 100-200 person venues. Remember, it's a midrange driver covering vocals and instrument clarity – you'll need complementary drivers above and below for full-range coverage.

What's the deal with the 16-ohm impedance anyway?

The higher impedance makes it easier to wire multiple drivers in series without your amp seeing dangerously low loads. It's particularly useful in line arrays or when you're building monitor wedges with multiple drivers and need the impedance math to work out cleanly.
