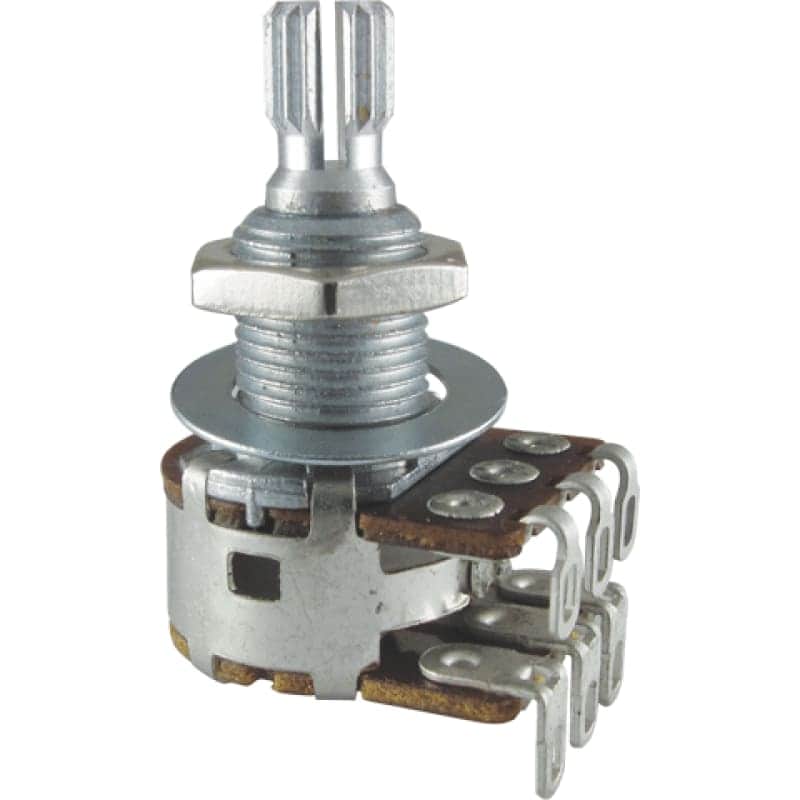

Potentiometer - Bourns, Dual MN Taper, Knurled Shaft, Resistance: 500 kOhm
Price$8.94
Free Shipping
This listing has ended
See similar gear from other Reverb sellers
Listed:over a month ago
Views:733
Saves:5
Tempe, AZ, United States
Our users rate Reverb
Dual MN taper blend-balance with center detent. Split shaft. 17 mm body diameter. 1/4" watt, 300° rotation. 1/4" shaft diameter. Solder lugs. 3/8" bushing.
M taper: 0% to 100% output voltage from 0% to 50% rotation (linear). 100% output voltage from 50% to 100% rotation.
N taper: 100% output voltage from 0% to 50% rotation. 100% to 0% output voltage from 50% to 100% rotation (linear).
Full output for both outputs at 50% rotation (center detent).
Product Measurements
Body Diameter: 0.67 in.
Body Depth: 0.45 in.
Bushing Length: 0.38 in.
Shaft Length: 0.38 in.
Shaft Diameter: 0.235 in.
Shaft Rotation: 300°
U.S. Thread Major Diameter: 0.375 in.
U.S. Thread Pitch: 32 tpi.
Resistance: 500 kΩ
