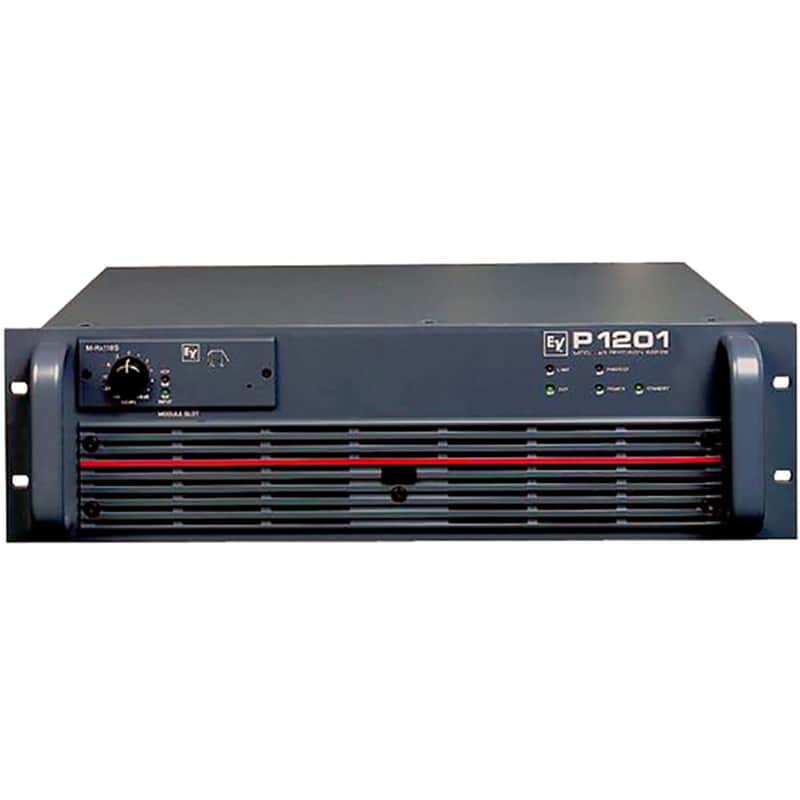

Electro Voice Modular Power Amplifier, 1 x 1200 watts at 4 ohms, 3 RU

Overview

P-Amps - a modular power amplifier concept and the most flexible solution for any mobile and permanent installation application. The modular architecture of the P-Amps allows flexible selection of filter/signal processor as well as input and output modules. This provides the possibility to easily include P-Amps power amplifiers into basically any existing and most of all any future application, using principally any connection technique.

Specifications

• Load Impedance: 8 \ 4 \ 2 Ohms
• Maximum Midband Output Power,THD = 1%, 1 kHz: 750 \ 1200 \ 1600 W
• Rated Output Power, THD < 0.2%, 20 Hz - 20 kHz: 500 \ 1000 \ —— W
• Max. Single Channel Output Power, Dynamic-Headroom, IHF-A: 850 \ 1450 \ 1700 W
• Maximum RMS Voltage Swing, THD = 1%, 1 kHz: 86 V
• Voltage Gain at 1 kHz: 33 dB
• Slew Rate at 1 kHz: 40 V/us
• Power Consumption at 1/8 maximum output power at 4 Ohms: 870 W
• Input Sensitivity at rated output power at 4 Ohms, 1 kHz: 1.4 V
• THD at rated output power, MBW = 80kHz, 1kHz: < 0.05 %
• Frequency Response, -1dB, ref. 1 kHz: 13 Hz - 45 kHz
• Power Bandwith, THD = 1%, ref. 1 kHz, half power at 4 Ohms: 10 Hz - 50 kHz
• Input Impedance, 20 Hz - 20 kHz, balanced: 20 kOhms
• Damping Factor at 100 Hz / 1 kHz, 8 Ohms: > 300 / > 200
• Signal to Noise Ratio, A-weighted, non internal summing mode: 106 dB
• Protections: Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn-on delay
• Dimensions (W x H x D): 483 x 132.5 x 426 mm
