Very clean, near mint, and well working Sansui combo here. This setup is considered to not only be one of Sansui's flagship combos, but separately, they are highly revered as well. Just for what they are going for separately, on here or any other online market place, this is a smoking deal. I was tempted to keep this for myself, but I am swimming in gear I need to sell, and am attached to my Phase Linear stuff. Not that it takes a back seat in the way of sound quality, but I am more partial aesthetically to silver than black. Great Amp. Great Tuner. You will be very happy for a long time with this setup.

Please allow up to 8 hours response time for answers to questions/offers.

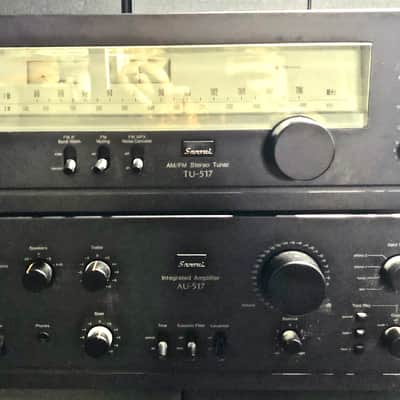

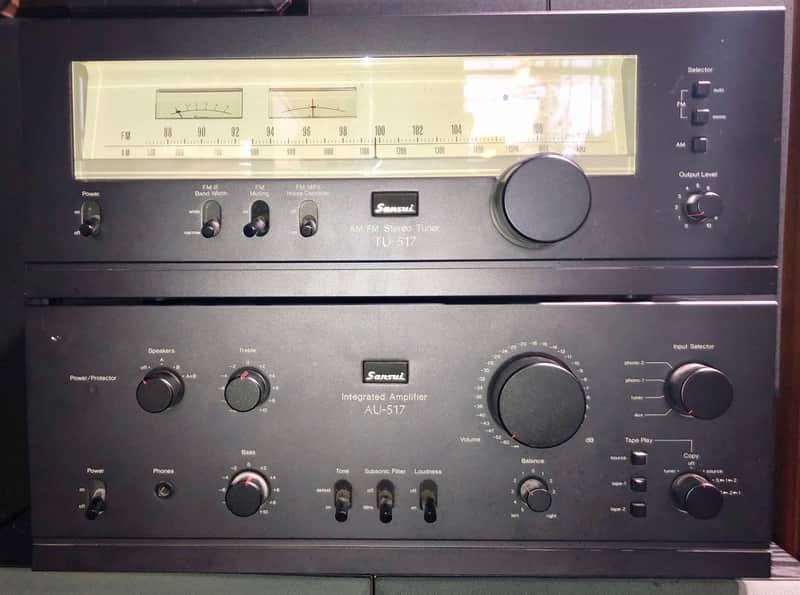

Here are some specs on this combo from Hifi Engine:
TUNER
Description

The TU-717 is a high technology AM/FM stereo tuner made to match the most sophisticated amplifier.

It features a sensitive front end and a dual bandwidth IF section with selector switch for either lowest distortion or highest selectivity.

Specifications

  • Type: Mono/Stereo Tuner
  • Tuning Bands: FM, MW
  • Tuning Scale: Analogue
  • FM Tuning Range: 88 to 108 MHz
  • MW Tuning Range: 530 to 1600 kHz
  • Sensitivity: 1.7uV (FM), 220uV (MW)
  • Signal to Noise Ratio: 78dB (FM), 52dB (MW)
  • Distortion: 0.25% (FM), 0.35% (MW)
  • Selectivity: 80dB (FM), 35dB (MW)
  • Frequency response: 30Hz to 15kHz (FM)
  • Output: 1000mV

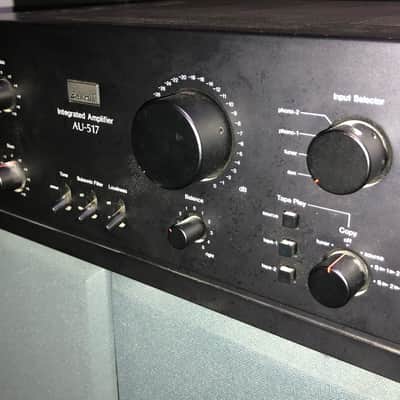

Amplifier

Description

The AU-517 with it's DC power amp boats highly accurate reproduction of all signals (including any kind of musical signal), and it achieves exceptionally high circuit stability. The pre-driver circuitry is so effective in assuring stable performance in the face of temperature and voltage changes that Sansui has registered it with major patent offices around the world.

The subsonic filter attenuates harmful frequencies from 16Hz and below on a 6dB / octave slope, yet keeps musical content intact.

The potentiometer for master volume control is a precision attenuator type with 32 accurately calibrated steps marked in decibels (dB). By a simple calculation you know how much average power you are feeding your speakers.

The AU-517 has full monitoring/recording/dubbing facilities for two stereo tape decks. All play/copy operations can be handled by a trio of switches and a rotary knob, permitting a number of practical uses.

Specifications

  • Power output: 65 watts per channel into 8Ω (stereo)
  • Frequency response: 20Hz to 20kHz
  • Total harmonic distortion: 0.025%
  • Damping factor: 60
  • Input sensitivity: 2.5mV (MM), 150mV (line)
  • Signal to noise ratio: 78dB (MM), 100dB (line)
  • Channel separation: 60dB (MM), 65dB (line)
  • Output: 150mV (line), 1V (Pre out)
  • Speaker load impedance: 8Ω (minimum)

Promoted similar listings













Listed7 years ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • AU-517 & TU-517 Stereo Integrated Amplifier & Tuner W/Pre Outs
Finish
  • Black
Categories
Year
  • 1977
Made In
  • Japan
