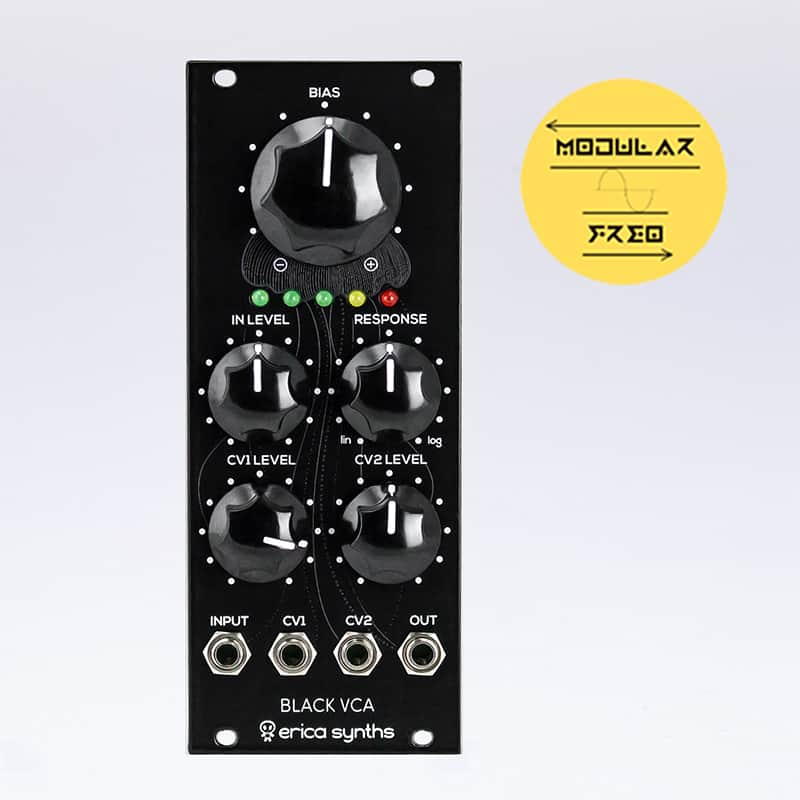

Erica Synths Black VCA V2

Erica Synths Black Voltage Controlled Amplifier
is a unique design hi-fi level VCA with an improved attenuation, CV reject levels and bias control for great tremolo effects. Features

• Manual bias control

• Manual fading between linear and logarithmic response

• Two CV inputs

• Output level indicator bargraph

Smooth fading between linear and logarithmic response allows you to create versatile percussion sounds. LED bargraph gives visual feedback on the output level.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

CV level  -10V – +10V

Attenuation level:  CV

 0V (max attenuation)   -80dB
CV = +10V (unity gain)  0dB
Power consumption     +45mA, -32mA
Module width  10HP
Module depth 25MM
