REDUCED!!!! Save 0ver $8000 on my demo unit. Retail $15000

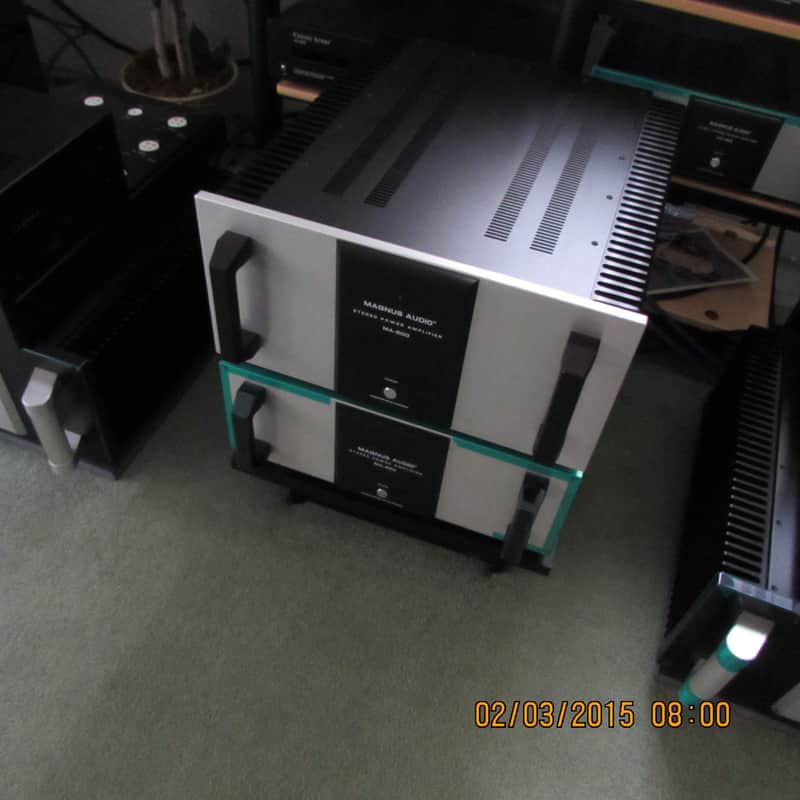

The Magnificent Magnus flagship has it all, power, clarity, speed, definition and dynamics
MA-500 Highlights

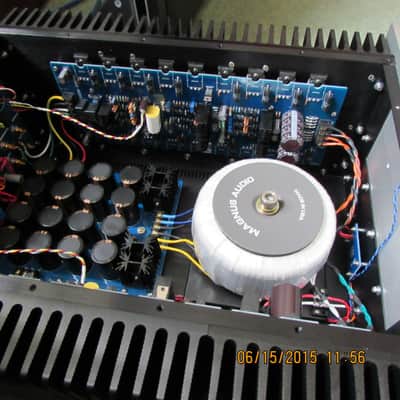

Advance and sophisticated Class AB design with high output performance.
32 carefully selected and matched MOSFET output transistors of highest quality.
Current mirror input for more stable output throughout entire dynamic range
Custom wound audio grade toroidal transformer with separate windings for
left and right channel.
Custom made heavy-duty heat sinks with special thick rib design ensure a
lower operating temperature.
Sophisticated protective circuit ensures highest operational safety for the
amplifier and the connected loudspeakers.
Integrated power curcuit with time-delay relay to eliminate turn-on thump.
Advance layout and wiring techniques guarantee a hum free operation.
Switchable balanced (XLR) and single-ended (RCA) inputs.
Full metal housing for optimum shielding.
Handcrafted in California, USA.
Rated Output Power: 450 Watts RMS at 8 Ohms
900 Watts RMS at 4 Ohms
Frequency Response: +/- 0.1 dB from 10 Hz to 100 KHz Signal-to-Noise Ratio: 110 dB Total Harmonic Distortion (THD): <0.001% Gain: 29.1 dB Input Impedance: 25K Ohms (single-ended)
50K Ohms (balanced) Input Sensitivity: 2.1 V RMS Output Voltage: 60 V RMS Damping Factor: 300, referred to 8 ohms Power Consumption: 1,000 watts continuous Inputs: 2 balanced via XLR connector (1 per channel)
2 single-ended via RCA connector (1 per channel) Outputs: 4 pairs high quality binding posts (2 pairs per channel) Operating Voltage: 100V, 120V, 220V, 230V or 240V at 50 or 60 Hz Dimensions: 19 in. W x 9.5 in. H x 26 in. D
The Magnificent Magnus flagship has it all, power, clarity, speed, definition and dynamics
MA-500 Highlights
left and right channel.
Rated Output Power: 450 Watts RMS at 8 Ohms
900 Watts RMS at 4 Ohms
Frequency Response: +/- 0.1 dB from 10 Hz to 100 KHz Signal-to-Noise Ratio: 110 dB Total Harmonic Distortion (THD): <0.001% Gain: 29.1 dB Input Impedance: 25K Ohms (single-ended)
50K Ohms (balanced) Input Sensitivity: 2.1 V RMS Output Voltage: 60 V RMS Damping Factor: 300, referred to 8 ohms Power Consumption: 1,000 watts continuous Inputs: 2 balanced via XLR connector (1 per channel)
2 single-ended via RCA connector (1 per channel) Outputs: 4 pairs high quality binding posts (2 pairs per channel) Operating Voltage: 100V, 120V, 220V, 230V or 240V at 50 or 60 Hz Dimensions: 19 in. W x 9.5 in. H x 26 in. D
