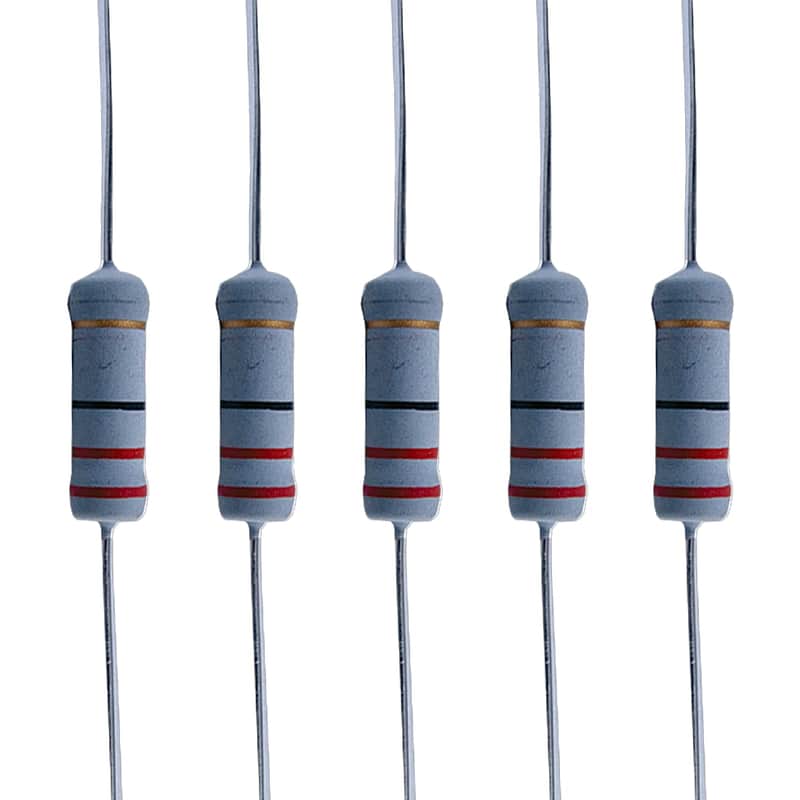

Resistors - 2 Watt, Metal Oxide, Power, Resistance: 200 Ohm

Metal Oxide resistors are for applications where stability under high temperature conditions is required. Sold in multiples of 5.

• 2 watt
• ±5% tolerance
• -55° C to 240° C operating range (derated over 70° C)
• 350 V working, 600 V overload
• Excellent flame retardant coating
• Stable performance in diverse conditions
• High purity ceramic core
• EIA color coded
• .47" long x.20" diameter

Product Measurements

Body Length: 15.0 mm
Item Diameter: 5.0 mm
Lead Length: 35 mm
Lead Diameter: 0.78 mm
Tolerance: ±5%
Wattage: 2 W
Operating Temperature (TJ): -55°C to 240°C
Working Voltage, maximum: 350 V
Overload Voltage, maximum: 700 V
Dielectric Withstanding Voltage: 500 V
Intermittent Overload Voltage, maximum: 1,000 V
Resistance: 200 Ω
