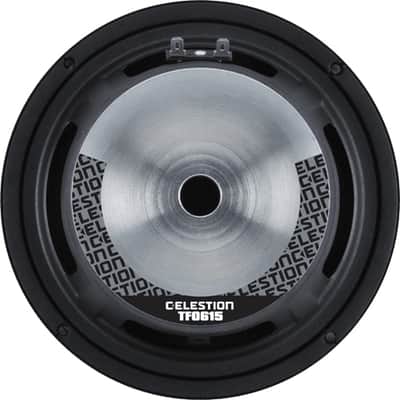

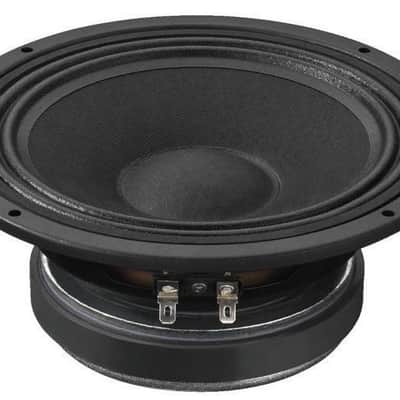

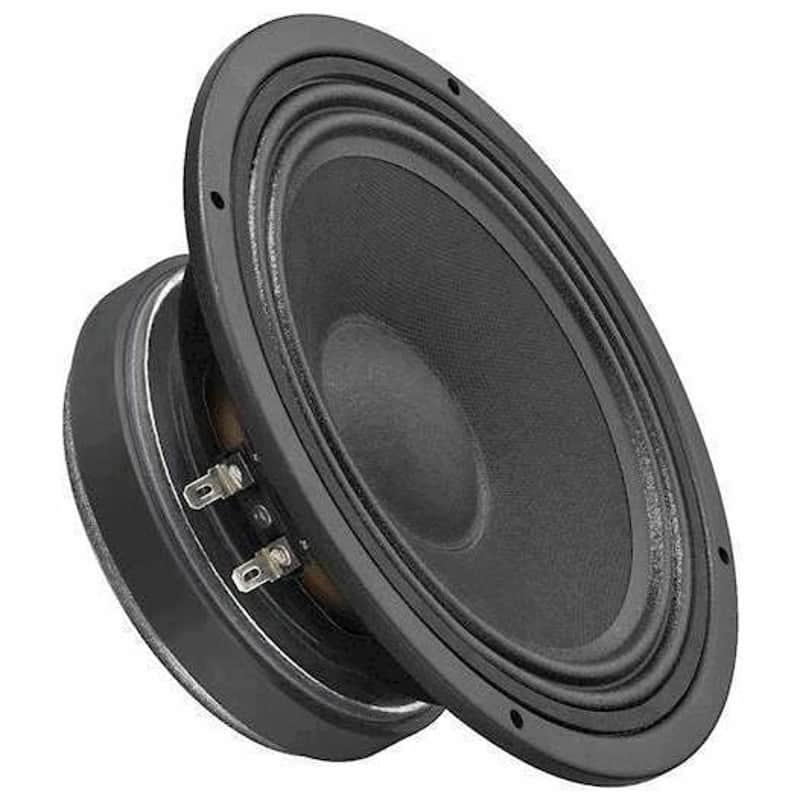

Celestion TF0615 6" 100 Watt Professional Woofer Driver 8 Ohm LF Pressed Chassis / Ferrite

Authorized Dealer/ Brand New Item / In Stock!

The Celestion TF0615MR 6" professional midrange speaker is a purpose-built device dedicated to high-SPL, low distortion reproduction of the critical midband

frequencies. Its integrated sealed chassis isolates the driver's soft parts from the loudspeaker system woofer's "back pressure", while at the same time

eliminating the need to construct a separate sub-enclosure. The TF0615MR features a 1.5" high-temp voice coil and 17 oz. ceramic ferrite magnet, guaranteeing high efficiency and excellent power handling.

Product Details Celestion TF0615 6" 100 Watt Professional Woofer Driver 8 Ohm

The versatile Celestion TF0615 6" driver offers excellent performance when used in bass and dedicated midrange applications. Its 1.5" copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures.

A cloth sealed surround is combined with an optimized Kevlar-loaded paper cone, to ensure the speaker's frequency response is smooth and extended. An intelligent heat vented motor assembly enhances cooling, and a rigid chassis design for maximum energy transfer.

Product Specifications

• Nominal Diameter6"
• Power Handling (RMS)100 Watts
• Power Handling (max)200 Watts
• Impedance8 ohms
• Frequency Response85 to 6,000 Hz
• Sensitivity95 dB 1W/1m
• Voice Coil Diameter1.5"
• Magnet Weight17 oz.

Thiele-Small Parameters

• Resonant Frequency (Fs)107.2 Hz
• DC Resistance (Re)7.25 ohms
• Mechanical Q (Qms)5.83
• Electromagnetic Q (Qes)0.68
• Total Q (Qts)0.61
• Compliance Equivalent Volume (Vas)0.23 ft.³
• Mechanical Compliance of Suspension (Cms)0.19 mm/N
• BL Product (BL)9.03 Tm
• Diaphragm Mass Inc. Airload (Mms)11.39g
• Moving Mass Of Diaphragm (Mmd)11.31 g
• Maximum Linear Excursion (Xmax)2.50 mm
• Surface Area of Cone (Sd)188 cm²

Materials of Construction

• Cone MaterialPaper / Kevlar
• Surround MaterialCloth
• Voice Coil Wire MaterialCopper
• Voice Coil FormerKapton® / Polyimide
• Basket / Frame MaterialSteel
• Magnet MaterialFerrite

Mounting Information

• Overall Outside Diameter7.01"
• Baffle Cutout Diameter5.79"
• Depth2.91"
• Bolt Circle Diameter6.63"
• # Mounting Holes4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume0.33 ft.³
• Sealed F3139 Hz
• Vented Volume0.56 ft.³
• Vented F365 Hz

Celestion TF0615 6" 100 Watt Professional Woofer Driver 8 Ohm

• Brand Celestion
• Model TF0615
• UPC 739894588959
• Weight 4.1500 lbs
