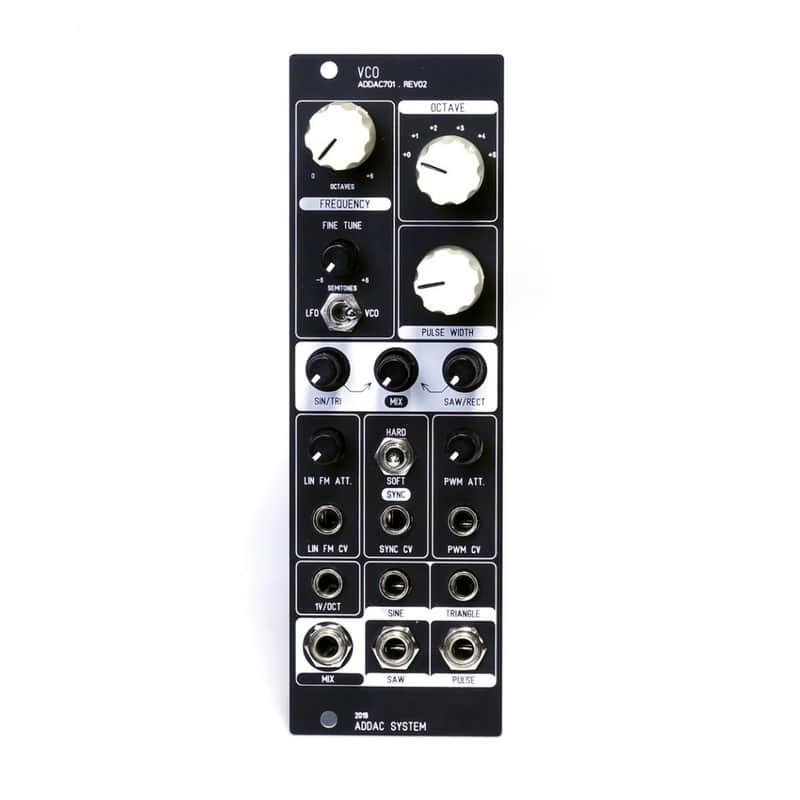

ADDAC System 701 VCO Vs2

This is our new VCO, we discontinued our ADDAC701 VCO a few years back and since we’ve been wanting to release a more stable version with better pitch tracking increasing pitch reliability further minimizing the detuning issues of analog VCO’s.
For this new revision we chose to use the modern version of the CEM3340 ic from CoolAudio and add the triagle to sine circuitry of our previous VCO. This new version is extremelly stable over 7 octaves.
We also added a new Mix section which allows mixing of all waveforms controlled by 3 knobs SIN/TRI, MIX and SAW/RECT.
Features: Frequency knob with 6 octave range Fine Tune knob with 12 semitone range Octave switch with 6 octave range 1v/octave cv input Linear FM cv input with attenuator LFO/VCO switch sets overall frequency range Soft/Off/Hard Sync switch Pulse Width control with initial knob and cv input with attenuator SINE, TRIANGLE, SAW and PULSE outputs Mix output controlled by 3 knobs SIN/TRI, MIX and SAW/RECT.
Tech Specs: 8HP 3.5 cm deep 60mA +12V 60mA -12V
LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes up to 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
