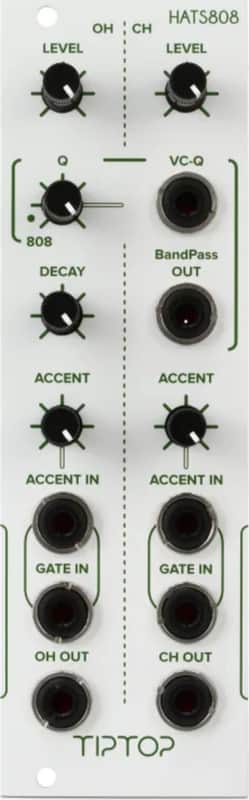

Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning. The HATS808 uses six analog square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original “choke” circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

Product Features

• Analog remake of the classic '808 hi-hat circuits for your Eurorack modular rig
• Q control starts in original '808 territory, adds metallic resonance and character as it increases
• Choking can be disabled for expanded rhythmic possibilities
• Powerful gain stages allow you to increase harmonic richness and achieve overdrive effects
• Use CV or gate signal to control the accent volume for dynamic performances
• Only 8hp wide, so you'll have plenty of space for more drum synths
• Depth: .55"
• Power Usage: +12V/30mA, -12V/25mA

Attributes

• Color: White

Technical Specifications

• Type: Synth Module
• Inputs: 2 x 1/8" (accent), 2 x 1/8" (gate)
• Outputs: 1 x 1/8" (open hat), 1 x 1/8" (closed hat), 1 x 1/8" (bandpass)
• Processing Type: Analog
• Power Supply: Requires Eurorack Case and Power Supply
• Oscillator: 6 x Square Wave Oscillators
• HP Size: 8HP
