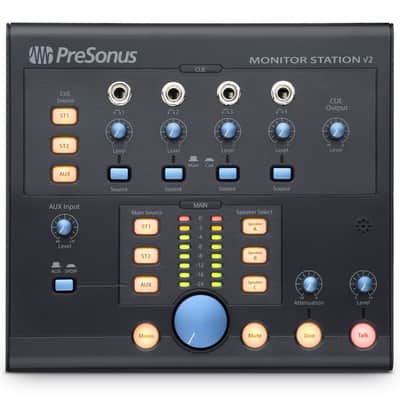

Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer—all from your desktop. Consider Your Sources. Switch quickly and easily between up to four audio sources with a selection of input types. Manage Your Destinations. Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control—and four screaming-loud headphone outs. Get This In Your Head. With Monitor Station V2, you can evict the drummer from the main room, banish the guitarist to the bathroom, shove the singer into a closet, and make them like it. Have it Your Way. The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.

Inputs and Outputs

2 Stereo pairs of ¼" TRS inputs

1 Stereo pair of RCA Aux inputs

1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)

3 Stereo pairs of ¼" TRS speaker outputs with level controls

1 Stereo pair of ¼" TRS Main outputs

1 Stereo pair of ¼" TRS Cue outputs

4 ¼" TRS screaming-loud stereo headphone outputs ​Controls

Large Main level control

3 Individual Main Source (ST1, ST2, Aux) select switches

3 Individual Speaker Select switches

Cue section with Source select (ST1, ST2, Aux) and output-level control

Aux-S/PDIF Select switch

Aux Input level control

Main Mute, Mono, and Dim switches with variable Dim attenuation Additional Features

8-segment color LED input meters with selectable reference level

Built-in electret-condenser talkback microphone with input-gain control and Talkback button

Convenient desktop design Audio Inputs

Internal Talkback Microphone

Gain Range +15 to +55 dB

Type Electret condenser

Sensitivity -42 dB

Stereo 1 and Stereo 2 Inputs

Type ¼" TRS Active Balanced

Input Impedance (Balanced) 10 kΩ

S/N Ratio (1 kHz @ +10 dBu, Unity Gain) >105 dB

THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.0075%

Frequency Response (±0.5 dB) 10 Hz to 65 kHz

Noise Floor (20 Hz to 20 kHz, 150Ω input termination) -96 dBu

Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) +22 dBu Auxiliary Inputs

Type RCA Active Unbalanced

Input Impedance 47.5 kΩ

S/N Ratio (1 kHz @ 0 dBu, Unity Gain) >115 dB

THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%

Frequency Response (±0.5 dB) 10 Hz to 50 kHz

Gain Range 80 dB to +10 dB S/PDIF

Types RCA 75Ω coax

Dynamic Range 113 dB

THD+N 0.0025% (1 kHz @ -1 dBFS)

Maximum output at 0 dBFS +18 dBu

Sample Rates 44.1, 48, 88.2, 96 kHz

Input Meters (ST1, ST2, and Aux only)

Type Dual 8-segment LED w/peak hold

Sensitivity Range -24 dB to 0 dB Audio Outputs

Type ¼" TRS Active Balanced

Output Impedance (Balanced) 51Ω

THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) <0.01%

Frequency Response (±0.5 dB) 10 Hz to 50 kHz Speaker A, B, and C

Trim Range -80 dB to 0 dB

Main Level Range -80 dB to 0 dB

Dim Attenuation Range -30 dB to -6dB Cue

Cue Level Range -80 dB to 0 dB

Dim Attenuation (Talkback activated) -20 dB Headphones

Type ¼" TRS Active Stereo

Maximum Output (60Ω load) 150 mW / channel

Frequency Response (±1.0 dB) 10 Hz to 50 kHz Power

Power Supply Type: External DC Transformer/Internal Line

Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter

Monitor Station Input Voltage Range: 18 VDC

Power Requirements (Continuous): 10W Physical

Height 2.5" (63.5 mm)

Depth 8.5" (216 mm)

Width 9" (228.6 mm)

Weight 6 lbs. (4.54 kg)

MPN: MONITORSTATION2
