Description:

Powerful. Reliable. Affordable.
The XLI Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

The four models in the series are the XLi800, XLi1500, XLi2500 and XLi3500. They are identical except for output power.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

Features:

• Crown Pro XLi3500 2700 Watt 2-Channel DJ/PA Power Amplifier
• RMS Power @ 4 Ohms: 1350 Watts x 2 Channels
• RMS Power @ 8 Ohms: 1000 Watts x 2 Channels
• RMS Power @ 8 Ohms Bridged: 2700 Watts x 1
• Frequency Response: 20 Hz - 20 kHz
• THD: <0.5%
• Distortion: <0.35%
• Slew Rate: >10V/us
• Voltage Gain: 36 dB
• Damping Factor: 8 Ohms, 10 Hz to 400 Hz
• Signal to Noise Ratio (A-Weighted): >100 dB
• Crosstalk: -75 dB, -59 dB
• Input Sensitivity: 0.775V or 1.4V
• Input Impedance: 20k Ohms, 10k Ohms
• AC Line Voltage and Frequency Configurations: (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz
• IEC Power Connector: 15A
• Stereo/parallel/bridge-mono mode
• User selectable input sensitivity - 0.775V and 1.4V
• Efficient forced-air cooling prevents excessive thermal buildup

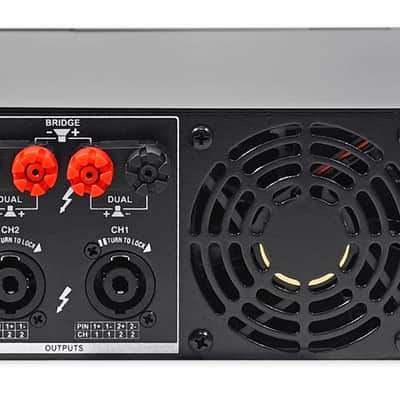

• Electronically balanced RCA & XLR inputs; binding post and Speakon  outputs

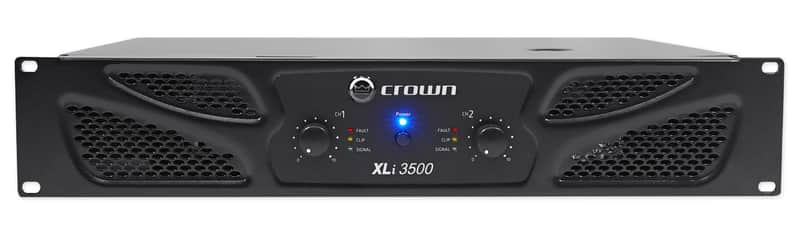

• Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
• Protection against shorts, no-load, on/off thumps and radio-frequency interference
• Product Dimensions: 19" x 3.5" 14.4" inches
• Product Weight: 43 Lbs.
