Authorized JBL Dealer!

Features:

• JBL VMA1120 Commercial/Restaurant 120 Watt Bluetooth Mixer/Amplifier with 5 Inputs
• 5-Input Mixer
• Supports USB Drives and Bluetooth
• 120W, 1-Output Amplifier

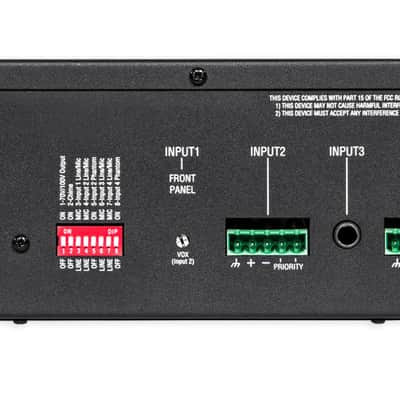

• Euroblock, RCA, and 1/4" Inputs
• Euroblock Outputs
• Per-Channel Bass and Treble Controls
• Voice-Activated Ducking
• Front-Panel Display and Controls
• Configurable Output Routing
• Includes Rack Mount Kit

Specifications:

• Output Power Per Channel: 120 Watts into 4 Ohms or 8 Ohms
• Insertion Loss: 70 V and 100 V Outputs: 1 dB Max.
• Input Channels: 5
• Output Channels: 1
• Tone Control: Bass and Treble non-detented potentiometers on each channel
  • Bass: ±14 dB @ 50 Hz
  • Treble: ±14 dB @ 10 kHz
• Input Sensitivity:
  • Mic Input: 5.5 mVrms
  • Line Input: 1.3 Vrms
  • RCA Input (Stereo In): 130 mVrms
• Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output
  • 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB
  • 70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB
• Total Harmonic Distortion (THD): Power Amp Output: <0.5%, 20 Hz to 20 kHz
• Signal to Noise Ratio: >76 dB
• Input Impedance:
  • Mic: 400 Ohms
  • Line: 20k Ohms
  • RCA: 50k Ohms
• Phantom Power: 27 VDC
• Crosstalk: -70 dB
• Nominal Input Voltages: Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz
• Minimum Load Impedance:
  • Low Impedance Output: 4 Ohms
  • 70 V Output: 40 Ohms
  • 100 V Output: 80 Ohms
• Operating Temperature: 32°F to 95°F
• Humidity: 95% RH
• Storage Temperature: -4°F to 185°F
• Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
• Product Weight: 20.2 Lbs.

for the Owner's Manual
