Manufacturer Description:

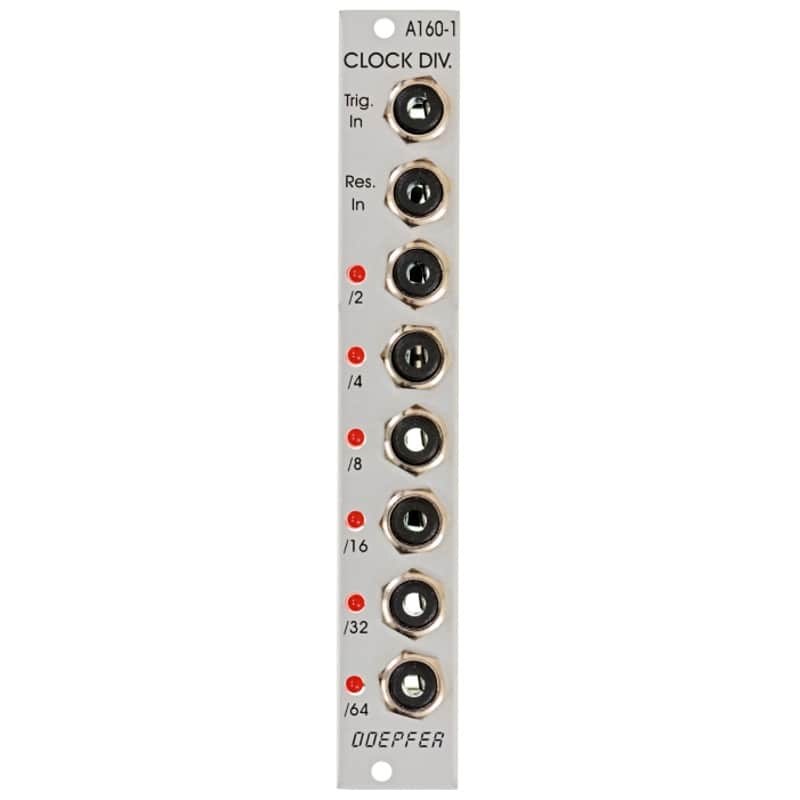

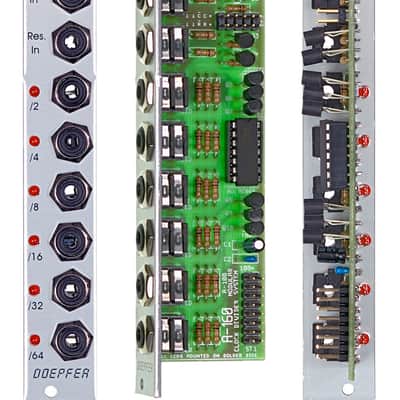

module a-160 is a frequency divider for clock/trigger/gate signals,
designed to be a source of lower frequencies, particularly for rhythm
uses. the trigger input will take clock signals from, eg., an lfo, midi
sync, or the gate from a midi-cv interface.

at the outputs, you have access to the sub-divided clock signals, from half the clock frequency down to 1/64.

the a-160 also has a reset input. whenever a reset signal is sensed, all
outputs are set to zero, until the reset voltage disappears.

the clock divider can be used in combination with the a-161 clock
sequencer to produce stepped sequences with a length of from one to
eight events.

similar modules:

a-152 voltage addressed track&hold / switch (multiplexer) / digital outputs

a-161 clock/trigger sequencer

this module has a maximum current draw of 40ma. it requires 4 te/hp worth of space to fit in a eurorack frame.

Promoted similar listings













ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • A-160-1 Clock Divider
Categories
Made In
  • Germany
Horizontal Pitch
  • 4HP
Modular Synth Format
  • Eurorack
Synth Module Function
  • Clock
