Mad Hatter Guitar Products Terminator SVST-4S Solderless Guitar Electronic System

The Terminator by Mad Hatter Guitar Products is the next generation in Solderless Guitar Electronics.  The Terminator offers compete flexibility in finding the right tone combination for your instrument.  Each Terminator system comes complete with Mad Hatter Guitar Products exclusive:

• CTS Universal Dual Value “Goes to Eleven” Volume and “Killer” Tone Pots

• Switchcraft output jack

• CRL, OakGrisby, and Terminator switches

• “Yin-Yang” Push/Pull Pots Upon Request.

Each Terminator CTS “Goes to Eleven” Volume and “Killer” Tone Pot offers both 250k and 500k wiring options.

With the Terminator we can also bridge the dual value pots together for a higher value of 750k for those seeking a brighter twangier tone.

The Terminator “Goes to Eleven” Volume and “Killer” Tone Pots also offer the ability to simultaneously operate two different pickups with one at 500k, such as a bridge humbucker, and the others, such as a middle and neck single coil at 250k.  We call this Synchronized Operation.

The combinations with the Terminator are nearly endless!

Each Terminator system comes complete with installation instructions and all the components you need to replace the cheap subpar components typically found in today’s instruments.

Hear What Your Guitar is Missing!

The Terminator Single Volume Single Tone Kit with 4-Way Selector Switch (SVST-4S) is a Complete Kit specially designed for instruments with two pickups utilizing a single volume control and a single tone control.

This Kit is designed for the popular 4-Way Telecaster Mod.  The Kit includes a high quality 4-Way OakGrigsby Selector Switch that delivers the standard Telecaster tones in positions 1-3, but delivers a louder beefier tone in position 4 with both pickups in series.  The switch position are as follows:

• Position 1 - Bridge Pickup
• Position 2 - Bridge & Neck Pickups in Parallel
• Position 3 - Neck Pickup
• Position 4 - Bridge & Neck Pickups in Series

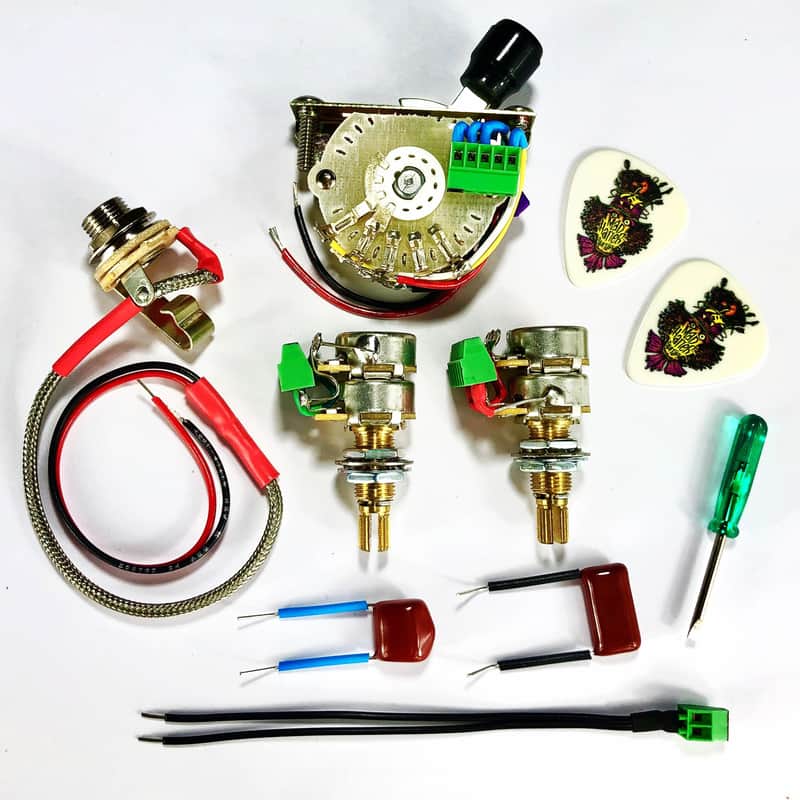

This Kit includes:

• One Terminator "Goes 2/11 Volume" Pot
• One Terminator "Killer Tone" Pot
• Mad Hatter Switchcraft Output Jack
• Terminator OakGrigsby 4-Way Selector Switch
• Two Film Tone Capacitors, a .022uF and a .047uF to help find just the right tone.
• Wiring Instructions for both Traditional and Synchronized Operation


***This Kit includes a switch tip of your choice in color. Please specify your choice of, Black, White, Ivory, or Telly upon purchase.***

*Very Important Note - The installation of this Kit will require the neck pickup cover ground wire (if connected) must be disconnected from black pickup wire.  Separate ground wire to cover is recommended.
