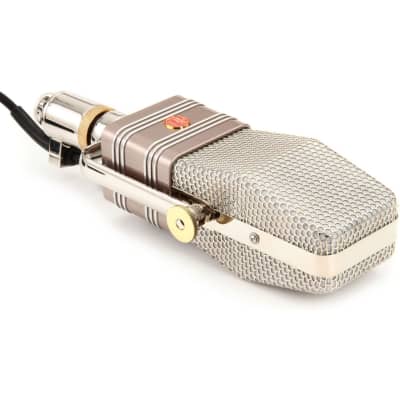

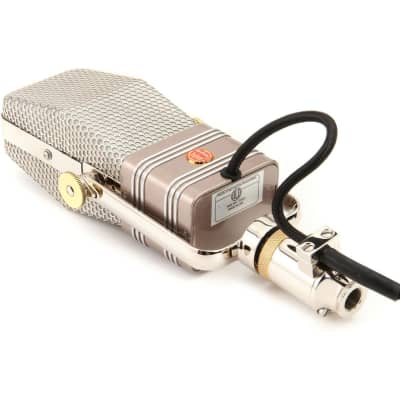

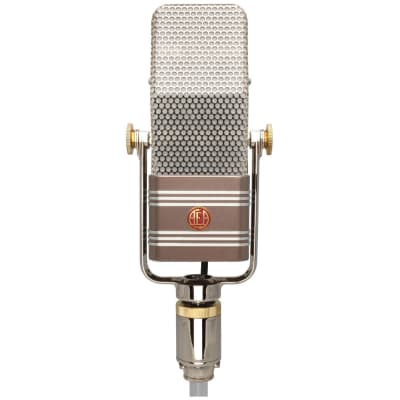

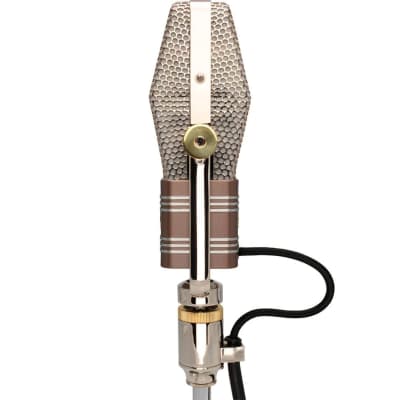

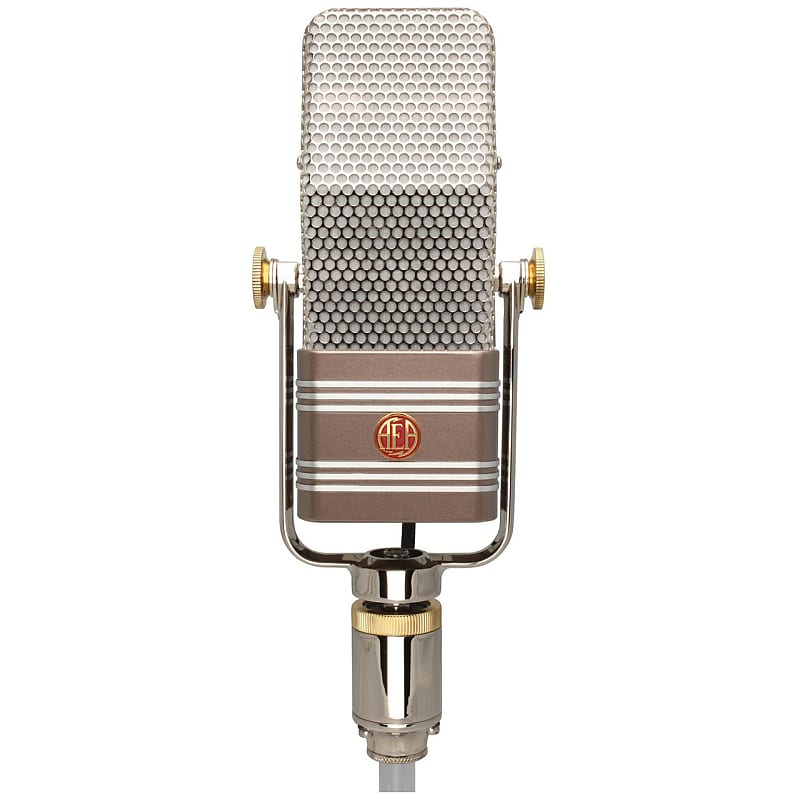

The AEA A440 Ribbon Microphone is an active phantom-powered big ribbon mic with figure-8 pickup pattern. It harnesses the AEA's proven JFET amplifier technology which yields an impressive 18dB boost in output and enhances compatibility with various preamps. Remarkably, the A440 offers higher sensitivity compared to most condenser mics, while maintaining an exceptionally low self-noise level.

The AEA A440 Ribbon Microphone is an iconic and high-performance recording active ribbon mic. In the world of music and audio recording, precision and authenticity are paramount. The AEA A440 Ribbon Microphone embodies these qualities, making it an indispensable addition to any professional studio setup. Renowned for its astonishingly quiet operation, the AEA A440 redefines the ribbon microphone experience, delivering unmatched purity and natural response. It effortlessly continues the legacy of AEA's "Big Ribbon" tradition, reminiscent of the classic RCA 44, while embracing modern innovations.

One of the key features of the AEA A440 is its active JFET amplifier technology, inspired by AEA's TRP preamps, seamlessly integrated into the mechanics of their R44C large-ribbon microphone. This innovation results in an impressive 18dB boost in output, providing enhanced versatility when paired with different preamps. Remarkably, the AEA A440 boasts sensitivity levels higher than most condenser microphones while maintaining an impressively quiet self-noise floor.

In terms of sound quality, the AEA A440 captures the classic and flattering "Big Ribbon" sound that made the RCA 44 a legendary recording icon. Its vintage aesthetics and robust build pay homage to the iconic RCA 44BX from the late 1930s. Moreover, the AEA A440's internal head amp is designed to safeguard the delicate ribbon element from phantom power, alleviating a common concern among ribbon microphone users.

Versatility is at the core of the AEA A440's design, making it ideal for a wide range of instruments and vocal applications. Its native figure-8 polar pattern complements the acoustics of any space, enhancing the midrange and low frequencies while smoothing out harsh highs. With an impressive maximum SPL rating of 132dB, the AEA A440 can confidently tackle vocals, electric guitars, and even full orchestras, all while imparting the distinctive ribbon character that engineers and producers cherish.

The AEA A440 is a quintessential recording tool for those seeking a classic sound with modern functionality. Handcrafted in the USA and backed by AEA's commitment to quality, this microphone offers the ideal balance of tradition and innovation. It faithfully captures the essence of the past while meeting the demands of the present, making it a must-have for any studio looking to elevate its recording capabilities.

AEA A440 Ribbon Microphone Features

  • Classic "Big Ribbon" microphone, powered by phantom power for robust output
  • Crafted in the USA, meticulously handcrafted to order
  • Utilizes JFET active electronics inspired by the AEA TRP tradition
  • Exceptionally low equivalent noise level of 6dB(A)
  • Features authentic RCA New Old Stock ribbon material
  • Constructed with investment cast bronze yoke and machined brass parts, avoiding the use of zinc
  • Single diaphragm with a well-controlled, native figure-8 polar pattern
  • Consistent horizontal polar response, both on and off-axis
  • 90-degree null-plane helps reject challenging room acoustics
  • High SPL capability, with a rating of 132dB (1% third harmonic >1kHz)
  • Computer-matched to production reference standards
  • Frequency response from 20Hz to 20kHz
  • Impressive Signal to Noise Ratio of 88dB (A) (94dB SPL minus equivalent noise)
  • Horizontal and vertical polar response characteristics for versatile recording
  • Requires +48V phantom power for operation

AEA A440 Ribbon Microphone Specifications

  • Operating Principle: Pressure Gradient Transducer
  • Directional Pattern: Bidirectional
  • Frequency Range: < 20 Hz to > 20 kHz
  • Polarity: Pin 2 High for Positive Pressure on Front of Microphone
  • Polar Response: Figure-of-8 Pattern
  • Horizontal: Up to 90 dB Rejection at Right Angles to the Front/Back Axis
  • Vertical: Level Changes with Angle of Incidence, but Frequency Response is Consistent
  • Maximum SPL: 136+ dB SPL (1% 3rd Harmonic > 1 kHz)
  • Sensitivity: 30 mV/Pa (-33.5 dBV) into Unloaded Circuit
  • Output Impedance: 92 Ω Broadband
  • Recommended Load Impedance: 1.0 k Ω Or Greater
  • Phantom Power: P48 Phantom Power, 7 mA
  • Weight w/ Cable: 7 lb 9 oz (3.43 kg)
  • Connector: XLR-3M

AEA A440 Ribbon Microphone Includes

  • AEA A440 Ribbon Microphone

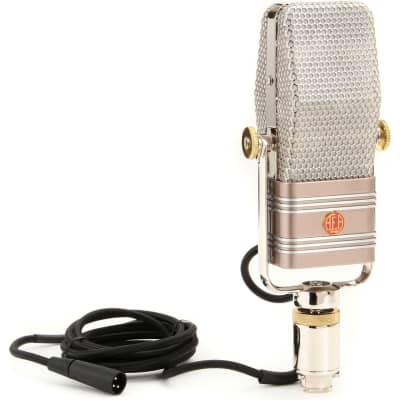

  • Captive 10-Foot Output Cable w/ XLR-3M Connector
  • Vertical Storage Case
  • Zippered Canvas Bag
  • User Manual
  • Manufacturer Warranty
