Brand NEW!
Including 90 Days USA Factory Warranty.
Product Highlights
Up to 24-bit/96 kHz Resolution Ultra-HDDA Preamps and NE5532 Op-Amps 2 x XLR-1/4" Combo Inputs 1/4" Headphone and Line Outputs 5-Pin DIN MIDI I/O Angled Aluminum Design Powered via USB or Optional AC Adapter Mac, Windows, iOS Compatible Includes Software Download

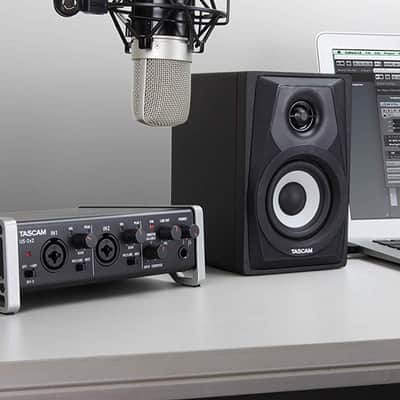

Tascam US-2X2 Overview The Tascam US-2x2 is a 2-channel USB audio interface designed for audio capture and reproduction at up to 24-bit/96 kHz resolution for musicians, vocalists, and producers in home and project studios, and mobile recording rigs. It features two Ultra-HDDA low-noise mic preamps fed by XLR-1/4" combo jacks and NE5532 op-amps in the input and output sections. Its angled aluminum design enables easy visibility when placed on a desk or table.
Separate level knobs are provided for the two 1/4" balanced line outputs and the single 1/4" stereo headphone jack. Rear-panel MIDI ports allow simple hook-up of your MIDI controller, keyboard, or synthesizer. Power the US-2x2 via USB connection to your compatible Mac, Windows, or iOS device or via an AC adapter (available separately). Use your favorite DAW or download the supplied copy of Cubase LE and explore it.
Mic/instrument/line inputs with up to 57 dB of gain 2-in/2-out USB 2.0 interface with up to 24-bit/96 kHz resolution XLR-1/4" combination input jacks with selectable phantom power Zero-latency monitoring Separate volume controls for line and headphone outputs NE5532 op-amps USB Audio Compliant 2.0 drivers for iOS compatibility Independent line out and headphone level controls MIDI input and output jacks Aluminum body with angled design for better desktop visibility Includes Cubase LE cross-platform compatible DAW
Tascam US-2X2 Specs Interface Max Sample Rate/Resolution   96 kHz / 24-Bit Connectivity Host Connection   1 x USB Type-B (USB 2.0) Analog I/O   2 x Combo XLR / 1/4" Input 2 x 1/4" (6.3 mm) TRS Balanced Line Output 1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output Digital I/O   None MIDI I/O   1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out
Performance Frequency Response   Headphone Outputs: 20 Hz to 20 kHz ±0.5 dB (at 48 kHz) 20 Hz to 40 kHz ±2 dB (at 96 kHz) Line Outputs: 20 Hz to 20 kHz +0/-0.1 dB (at 48 kHz) 20 Hz to 40 kHz +0/-0.2 dB (at 96 kHz) Gain Range   Inputs: Up to 57 dB Max Input Level   Hi-Z Inputs: +10 dBV Line Inputs: +20 dBu Mic Inputs: +8 dBu Max Output Level   Line Outputs: +20 dBu Headphone Output Power   18 mW per Channel Impedance   Hi-Z Inputs: 1 MOhm Line Inputs: 10 kOhms Mic Inputs: 2.2 kOhms Outputs: 110 Ohms THD+N   Headphone Outputs: < 0.1% THD     < 0.003% SNR   101 dB EIN   < -127 dBu Crosstalk   >95 dB Digital Audio Sample Rates   Up to 96 kHz Bit Depth   16 and 24-Bit Compatibility OS Compatibility   macOS 10.8 macOS 10.9 iOS 7 Windows 7 Windows 8 Windows 8.1 Processor Requirement   2 GHz Intel   RAM Requirements   2 GB Required Hardware   Available USB 2.0 Port Power Power Requirements   AC/DC Power Adapter (Not Included), USB Bus-Power AC/DC Power Adapter     Not Included Power Consumption   2.5 W General Operating Temperature   41 to 95°F / 5 to 35°C Physical Dimensions   7.3 x 2.6 x 6.3" / 186 x 65 x 160 mm Weight   2.4 lb / 1.1 kg Packaging Info Package Weight   3.4 lb Box Dimensions (LxWxH)   12.7 x 8.5 x 3.9"
